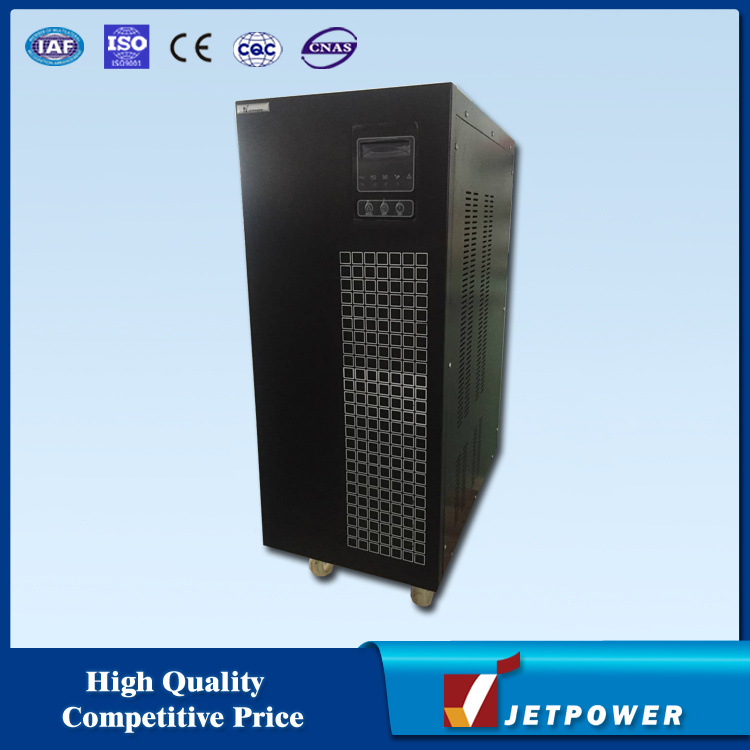

6kVA Line Interactive UPS with Internal Batteries
| Price: |
US $ 45-800/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
H-6Ks |
| Capacity: |
6kVA/4.2kw |
| Design: |
Line Invteractive UPS |
| Wave Form: |
True Sine Wave |
| Outlook: |
Tower |
| Input/Output Voltage: |
230V |
| Battery Voltage: |
48VDC |
| Max Battery Charger Current: |
2A/30A |
| Cold Start: |
Yes |
| Hot Replacement: |
Yes |
| Overcharge Protection: |
Yes |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overload |
| Brand: |
Jetpower |
Product Description
Horse series UPS-- 6000VA
Product Discription:
Model:
H-6Ks with Max 3A charger and 12V/12AH*8 pcs battery inside
Line interactive / sine wave output / single phase / low frequency with siolation transformer / tower
Product Feactures:
1. Provide Line-interactive design and true sine wave output
2. Equipped with Boost and Buck AVR to stabilize input voltage
3. User configurable input voltage range and output voltage
4. DC start function enables UPS to be started up without AC power supplied
5. Large built-in charger with power factor corrected
6. Enable to extend runtime with scalable external battery pack
7. Fully protecion for overload, short-circuit and over temperature
8. RS232&dry contact signal for power management software
9. SNMP card slot is available for 2KVA above
Specifications:
| Model Name | H-6Ks |
| Capacity | 6kVA/4.2kW |
| Overview |
| Power Factor | 0.7 |
| Outlook | Tower |
| Waveform | True Sine Wave |
| Input |
| Nominal Voltage | 230V |
| Voltage Range | 154V~299V |
| Frequency Range | 45HZ~60HZ |
| Output |
| Nominal Voltage | 230VAC |
| Voltage Range | AC Mode: 200V~253V; Batt Mode: 230V±3% |
| Frequency Range | (50/60Hz)±0.5% |
| Overload Protection | (AC Mode) Alarm (Fuse or C.B Protection); (Batt Mode) 110~140%->20Sec, >140%->5Sec. |
| Battery |
| Voltage | 48VDC |
| Quantity | 12v12ah*8pcs |
| Cold Start (DC Start) | Yes |
| Hot Replacement | Yes |
| Max Charger Current | 3A |
| Overcharge Protection | Yes |
| Charging When UPS off | Yes |
| Communication |
| Intelligent Interface | RS232 OR USB |
| SNMP slot | Optional |
| Display |
| LED Status | Line/Batt Mode, AVR, Batt Capacity; Load Size; Overload, Fault, Batt Replacement |
| LCD (Optional) | O/P Voltage, Input Voltage and Frequency; Batt Capacity; Load Size.Mode |
| Safety&EMC Approved | CE/TUV/FCC |
| Physical |
| Dimension (D*W*H) | 508*300*795mm |
| Net Weight | 80kg |
| Ambient |
| Temperature | 0~45° |
| Related Humidity | 10%~90%(no condensation) |
| Altitude | 1500m |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
