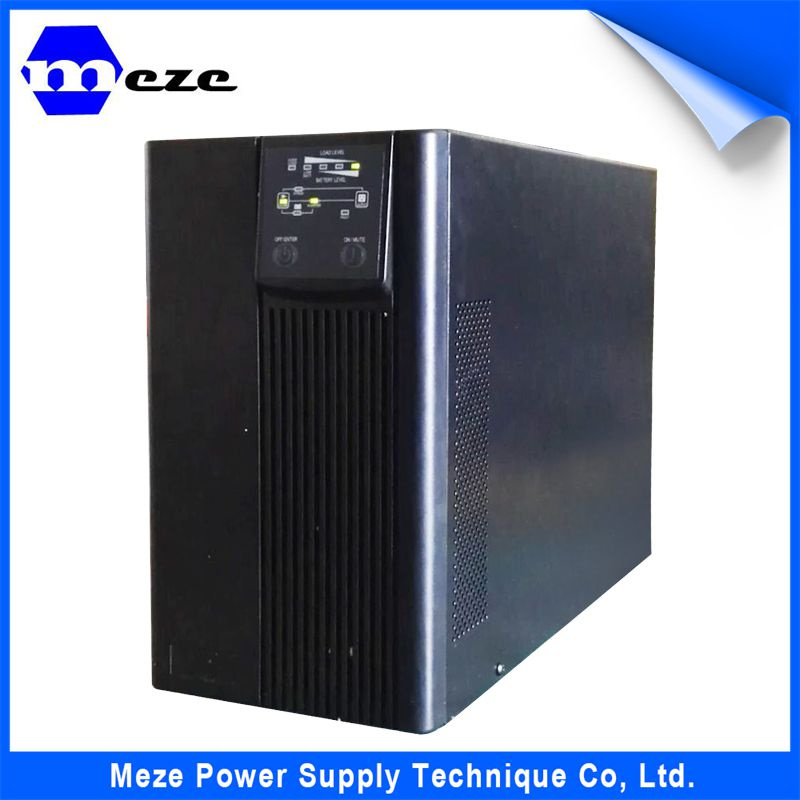

6kVA Power Supply Mini AC Online UPS for Computer
| Price: |
US $ 165-300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
MZ3C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
380V/220V |
| Output Voltage: |
380V/220V |
| Color: |
Back |
| Power Factor: |
0.95 |
| Characterized Voltage: |
Customizable |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage, Short Circuit, Overcurrent |
| Application: |
School,Hospital,Factory,Bank |
| Classification: |
Uninterruptible Power Supply |
Product Description
6kVA Power Supply Mini AC Online UPS for Computer
| Model MZT | C1KS | C1K | C2KS | C2K | C3KS | C3K | C6KS | C6K |
| capacity | 1KVA/700W | 2KVA/1400W | 3KVA/2100W | 6KVA/4800W |
| impot | voltage | 160~300VAC(Three pin plug) | 176~276VAC1P2W+G |
| current | 6A(max) | 12A(max) | 16A(max) | 33A(max) |
| frequency | 50/60HZ±5% |
| power factor | EN60555-(≥0.95) |
| output | voltage | 220VAC±2% |
| frequency | 50/60HZ±5% |
| current | 4.55A | 9.1A | 13.6A | 27.3A |
| load power factor | 0.7lag | 0.8lag |
| waveform | sine wave |
| waveform distortion | Linear load<3% |
| nonLinear load<5% |
| overload protection | >130%→30S>150%→10ms |
| transfer time | Zero interruption |
| Battery Type | Sealed maintenance-free lead-acid batteries |
| An external battery nominal voltage | 36VDC | 96VDC | 192VDC |
| environment | Operating temperature | 0-40ºC |
| Relative humidity | 0-90% |
| altitude | <1500m |
| Communication interface | 9pin D type connector(Rs232) |
| dimension(W+D+H) | 145*405*220 | 195*455*350 | 240*500*460 | 248*500*616 |
| Weight(kg) | 7.5 | 13 | 15 | 32 | 16 | 33 | 18 | 57 |
MZ3C series product characteristics and application fieldsMZ3C series of intelligent high frequency pure on-line UPS, capacity include: single into
single out 1 kva ~ 10 kva and 10 kva ~ 20 kva
Product characteristics: MZ3C series fully condensed the essence UPS cutting-edge
technology, The whole machine adopts advanced 16-bit high-speed CPU control and 40 KHZ
high frequency technology, small volume, light weight, high efficiency; Zero transfer and
pure sine wave output is designed to ensure that the MZ3C series UPS is widely used in all
kinds of load. This series of products using concise interface information processing
technology, the user can according to the display intuitively understand the running status
of UPS, have fully digital automatic detection and protection function, remote monitoring
function more reached the international advanced level, is a commercial server, PC server and
peripheral equipment, communications and networking equipment, home office computer
protector and other precision electronic equipment s and reliable electricity.
Areas of application: this series of products are widely used in data processing center, the
host system, integrated computer network, ISP services, telecommunications, computer
room, etc.Main characteristics:Intelligent digital, higher reliability1.Microcomputer control
Innovative software program control mode, optimize the UPS real-time control function, hardware cir cuit is
simple and high reliability.
2.To support software system
Ms-dos, WINDOWS 95, WINDOWS XP, WINDOWS Nt, etc.
3.RS232 Communication interface
Through RS232 digital communication interf ace with random monitoring software, users can monitor th e
power supply and UPS situation directly from a computer screen, greatly simplifies the network mana gement
and effectively improve the reliability of computer systems.
4.Remote monitoring function
UPS Equipped with SNMP slot, in order to expand UPS remote monitoring function. Automatic signal sent by
Email,Automatic to transmit warning pager way;Can be UPS via TCP/IP or Internet network remote mon itoring, automatic switch machine, real-time state of power supply condition analysis, monitoring, UPS, UPS self
diagnostic test execution, automatic storage historical archives.. Multifunctional design, safety is better1.Boot from the diagnosis f unction
Power on and boot, UPS star ted work of key circuit, inverter, batter y and load, etc.) to Chad, easy to find
problems in time, avoid any loss.
2.Enter zero wire detection function
In order to avoid UPS mains input zero firewire reverse connect, 1 ~ 3 kva machine has zero firewir e reverse
detection function.
3.Cold star t function
Unique direct current (DC) switched on, can be directly with the battery pack start when mains inte rruption
UPS, UPS emergency function into full play.Adopting high precision SMD technology, precision is higherMZ3C series process, changed the traditional plug-i n circuit board using high precision SMD technology,
save a space, and eliminate the traditional UPS in the circuit feet, to facilitate the saf e runningof the integrated circuit, high reliability and precision is doubled.
Mature SMD technology can reduce all kinds of high frequency signals produced by the chip itself to the
interference of other chips, allowing each chip module can work properly without interference, anti -interference is greatly improved.
Due to the SMD technology, lower power consumption, high accuracy, filtering performance is very good,
the machine performance is more stable, more durable, service life is greatly increased.Using cluster information processing technology, management more convenientMZ3C series USES the cluster information processing technology, will be clear at a glance the co ntrol panel
of UPS operation condition and load condition, the condition of batter y clearly displayed in the pa nel, allow
the user to hold UPS power supply quality and changes in the environment of application.Environmental design, can be integrated with the user environment more friendly1.High input power factor and cleaner energy
Power input end with power factor correction (PFC) technology makes the input power factor > 0.95, eliminate the UPS mains power grid pollution.
2.Quieter, more environmentally friendly
Panel on the alarm sound attenuation function keys, may avoid unnecessar y alarm, sharp battery low voltage, alarm recovery.Based on the theory of life cycle assessment precision, more energy efficientLife cycle assessment of the science, MZ3C series adopt the antiaging performance of touch scre en panel and chassis appearance treated by fluorine carbon technology, environment al protection, durable, is like new.
Using new turbo fan, cooling per formance, high energy saving;
Adopting circulation control circuit, power saving per formance good;
USES the advanced digital circuit and high precision SMD technology, the whole machine lif e extended by 80% year-on-year.The flow char t of the system
