0.6kw Custom Cw Ccw DC Motor for Tarpaulin Garbage Truck

Name: 0.6kw Custom Cw Ccw DC Motor for Tarpaulin Garbage Truck
Brand: all-electronics-online.com
SKU: 831490445
Availability: InStock
Rating: 4.5 (57 reviews)

Price:	US $ 125-135/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	zd2420
Volt:	24V
Power:	0.6kw
Current:	38A
Speed:	1500r/Min
Protect Feature:	IP44
Rotation:	Cw,Ccw
Application:	Power Tools
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Operating Speed:	Constant Speed/Low Speed
Casing Protection:	Closed Type/Protection Type
Type:	Zd2420
Brand:	Sanghao

Product Description

0.6KW Custom CW CCW DC Motor for Tarpaulin Garbage Truck

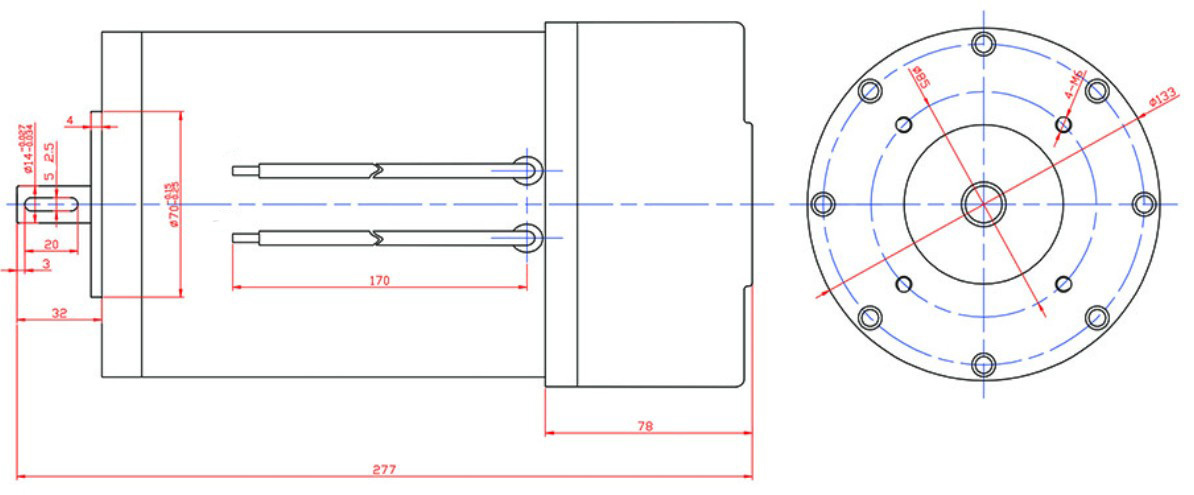

1. Parameter and Outline Dimension of Motor

Type	ZD2420
Volt	24V
Power	0.6KW
Current	38A
Speed	1500r/min
Protect Feature	IP54
Duty(S2min-S3%)	30min
Rotation	CW,CCW
Weight	10.5kg

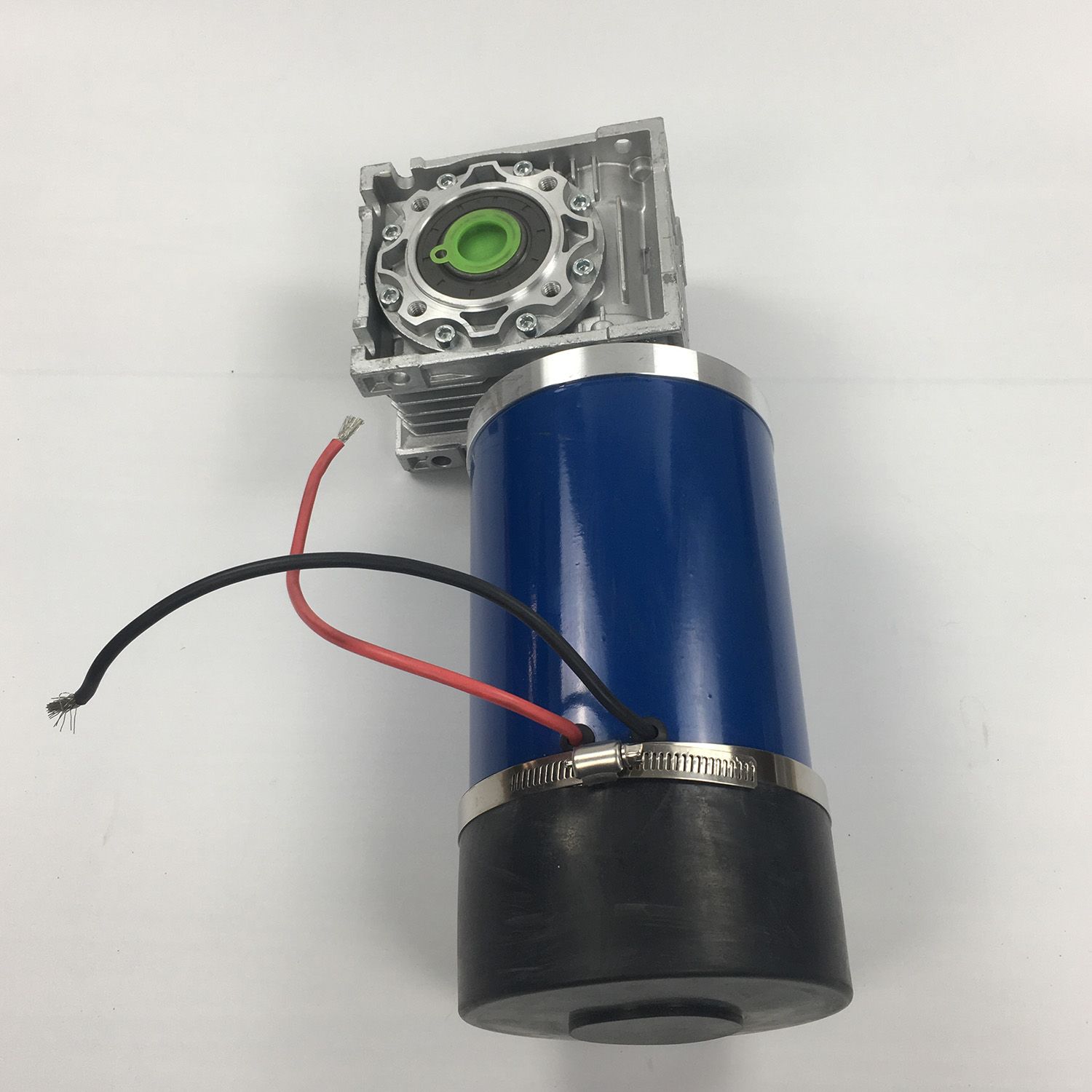

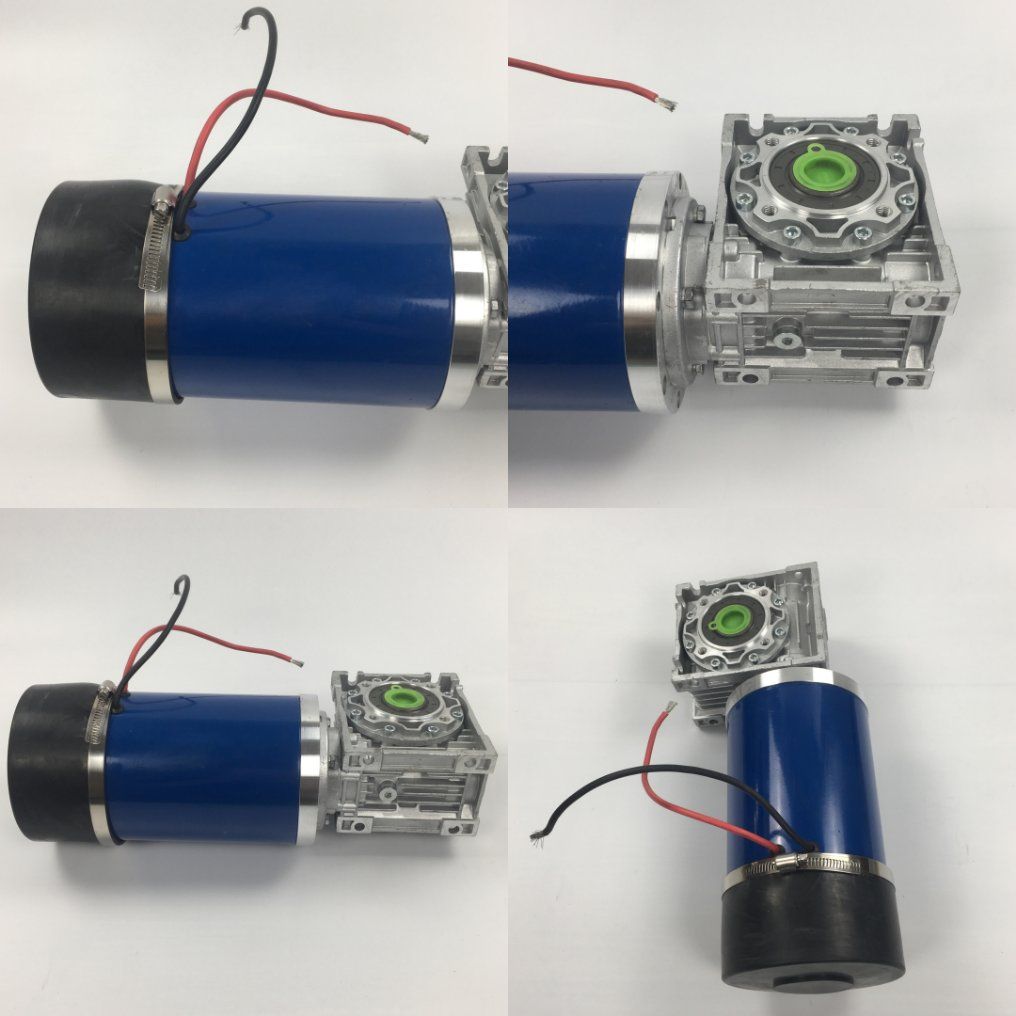

2. Detail Pictures of Motor
The metal part of our this dc motor is aluminum not the steel so that is the difference to others. Some manufacturer in China uses steel to do this and that is why the price is different.

3. Package
We took several measures to protect the motor. Firstly we will put a plastic bag outside of the motor to protect the whole motor then put into the carton. When put into the carton we will use the small carton pieces to protect the top and bottom part of the motor then it will be stable into the box.

4. Motor Factory Shop

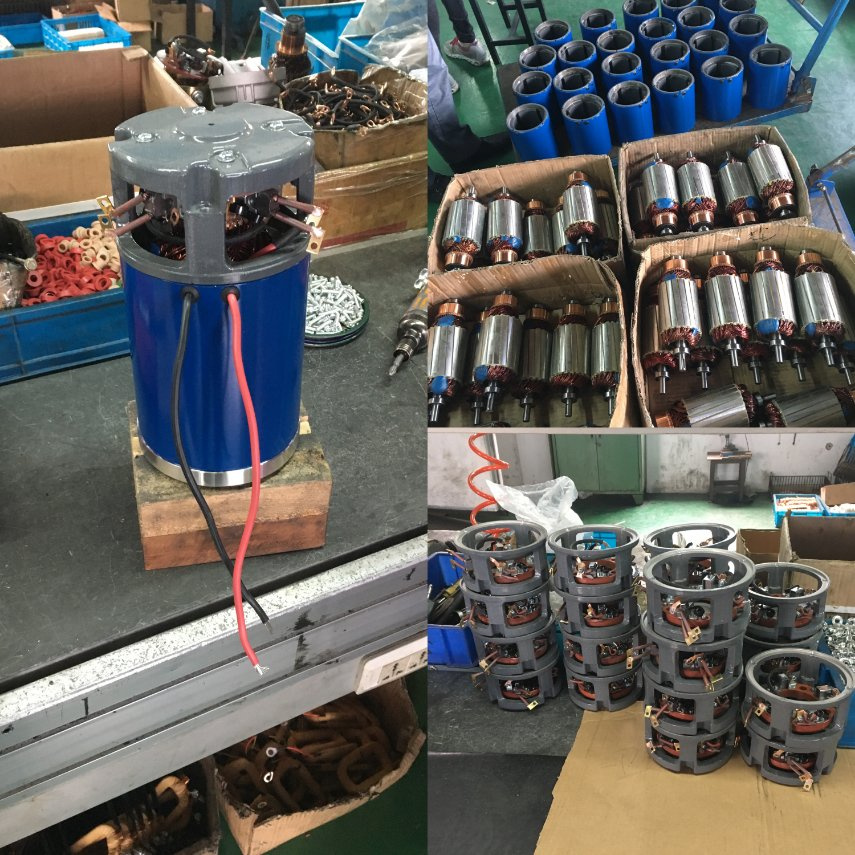

Our Assembly factory shop has several assembly lines to do the motor. When motor is ready, it will go on testing one by one then will go into the package. All the materials will be put into the warehouse which near the shop then it can be convenient for the worker.

5. Application

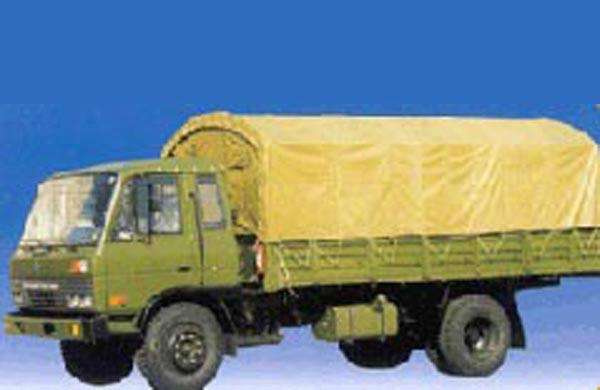

This DC motor equips the reducer and mainly used for converted garbage car or truck to drive the tarpaulin to work so the car will not be ironed by the rain or dust.

6. FAQ
A. Are you a manufacture or trading company?
We are a manufacture which has our own company and located in Changzhou, Jiangsu.
B. Do you provide the sample?
Absolutely yes! We are glad to provide the sample.
C. Do you accept customized?
Yes, we have engineers can help you do the customized motor and had better have the sample.
D. How long you can get the products?
If our exist products, we will arrange package and send them out immediately.
If need to do it, it should depend on your qty, around 20days will send them out.

If you are interested to our products and want to know more information, pls donot hesitate to contact us. We are honored to povide the good service to you!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
