6kw LED Display Digital Power Inverter

Name: 6kw LED Display Digital Power Inverter
Brand: all-electronics-online.com
SKU: 833664005
Availability: InStock
Rating: 4.5 (101 reviews)

Price:	US $ 500-615/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NPIC-H6004E
Power Rating:	6000W
Input Voltage:	164-243VAC
Output Voltage:	220V/230V +/-1%
Frequency:	50Hz/60Hz
Battery Voltage:	48VDC
Charging Current:	70A/35A
Transfer Time:	8ms
Efficiency:	>95% (Mains); >88% (Battery)
Display:	LED
Communication Port:	RS232/USB

Product Description

Model	NPIC-H6004E
Power Rating	6000 Watts
Input Voltage	164 ~ 243 Vac, single phase + N + PE
Input Frequency	47 ~ 55 Hz / 57 ~ 65 Hz (auto sensing)
Output Voltage	220/230/240 Vac, single phase + N + PE
Output Frequency	50/60 Hz
Output Power Factor	0.9 (optional 1.0)
Wave Form	Clean Sine Wave
Crest Factor	3 : 1
Efficiency	>95% (mains); >88% (battery)
Battery Voltage	12 / 24 / 48 Vdc
Max Charging Current	70 / 35 Amp
Transfer Time	8 ms
Display	LED (optional LCD)
Communication Port	RS232 / USB
Protection	discharging, over-charging, over-temperature, overload
Operation Temperature	0 ~ 40 ºC
Noise	<60 dB
Humidity	0 ~ 95% (non-condensing)
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMI: IEC62040-2; EMC: IEC61000-4-2~5
Dimension	218 * 179 * 598 mm
Net Weight	40 kG

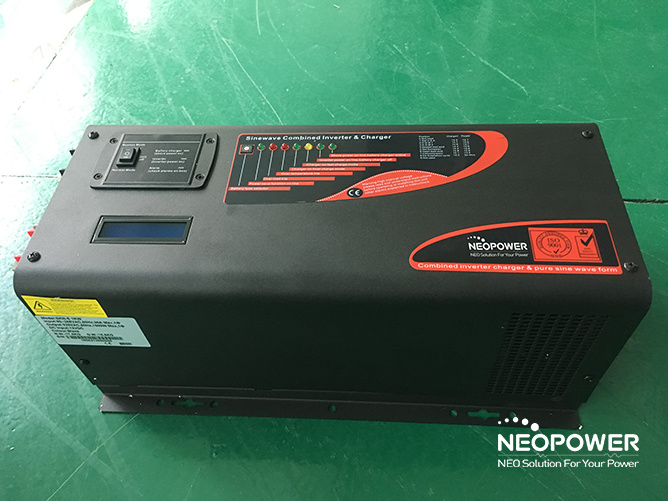

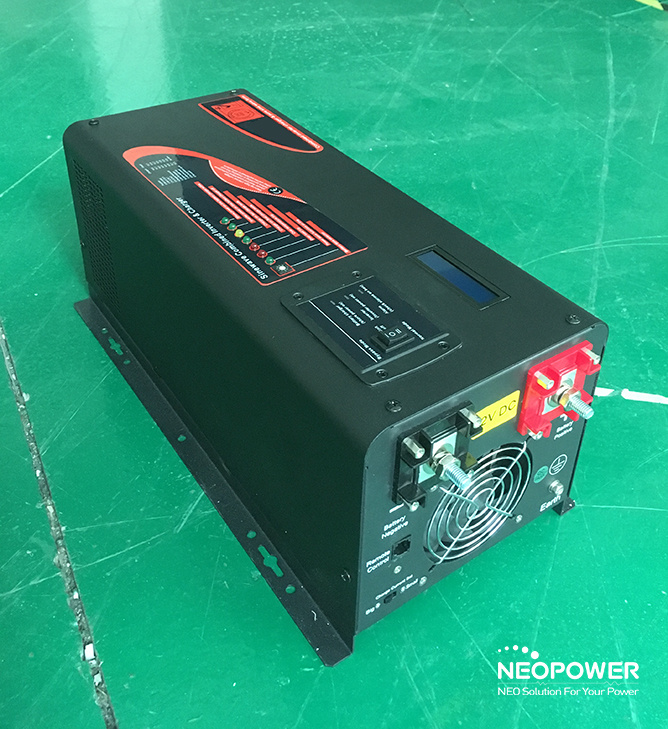

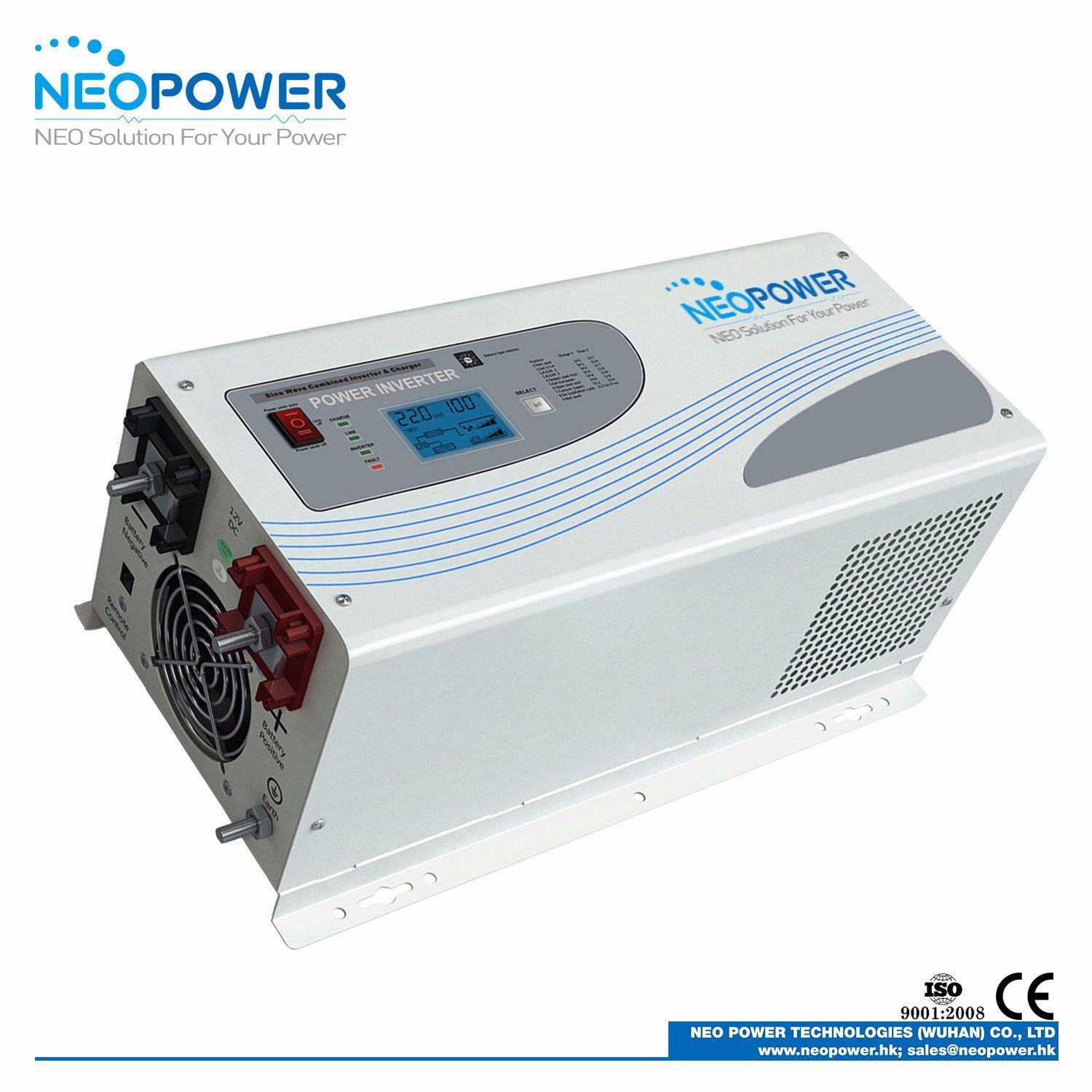

PRODUCT OVERVIEW

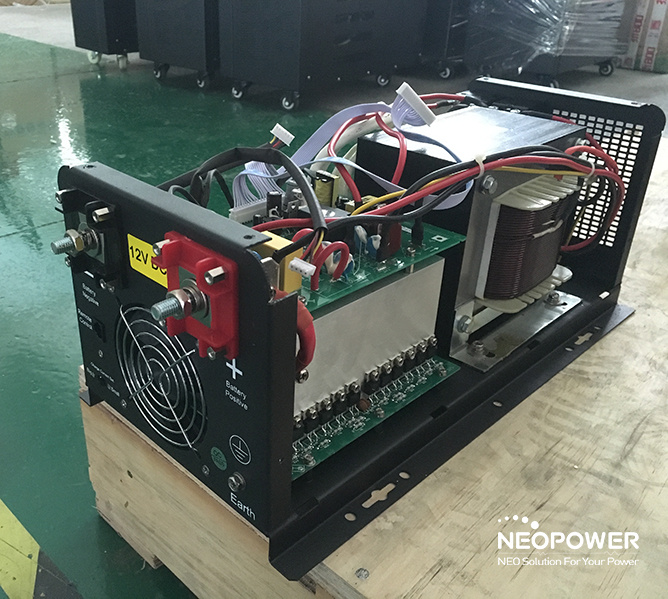

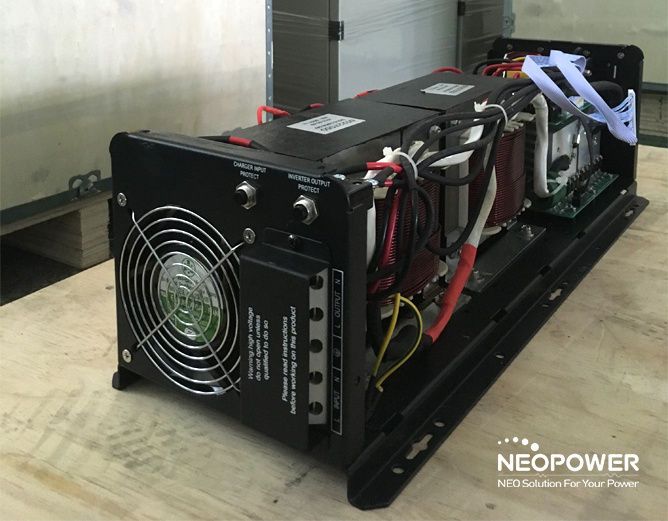

PRODUCT INTERIOR

FEATURES

Off-Grid Type
Single Phase
Built-in Charger
AC & DC Input
High Charging Current
Pure Sine Wave Output
Transformer Base Architecture
Remote Control
Computer Interface
Industrial Performance
