0.6m DTH Antenna

Name: 0.6m DTH Antenna
Brand: all-electronics-online.com
SKU: 724434272
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	US $ 10-100/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HXWJp0.6m
Drive Type:	Manual
Size:	0.6m
Color:	White
Warranty:	1 Year
Enterprise Nature:	Manufacturer
Customized:	Available
Certificate:	ISO9001
Market:	Global
Logo:	Huaxin/Customized
Huaxin/Customized:	Competitive and Negotiable
Usage:	TV Antenna
Material:	Al
Usage Occasion:	Household
Operating Wavelength:	Ku-Band
Sturcture Form:	Gound Mount

Product Description

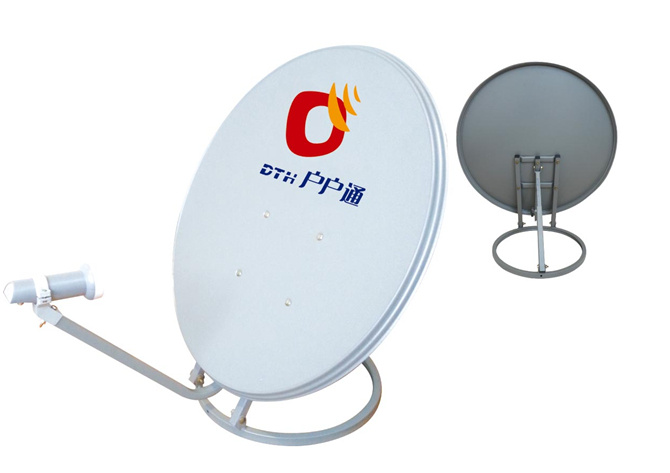

0.6m DTH Antenna

Features:
Superior and stable electrical performance
Concise, artistic and reliable structure
Ground mount type and multifunction type, fit for various occasion's installation
Particular surface treatment, good anti-corrosion ability, adapt to all kinds of environment, long service life
Easy and fast installation, few and low-cost maintenance

Specification of 0.6m DTH Antenna

R.F SPECIFICATIONS	0.45m DTH Antenna		0.6m DTH Antenna
	Ku-RECEIVE		Ku-RECEIVE
1. Frequency(GHz)	10.95-12.75		10.95-12.75
2. Typical Gain(dBi)	≥33.04		≥35.6
3. VSWR	≤1.3		≤1.3
4. Beamwidth (-3dB)	4.113°		1.297°
5.Noise Temperature(K)
10°Elevation	43K		44K
6. Circular Polarization Cross Identification Rate(dB)	≥20		≥20
7. First Sidelobe(dB)	≤-22		≤-22
8. Axial Ratio	≤1.35		≤1.35
9. Wide-angle Sidelobe Envelope (dBi)	52-10lg(D/λ)-25lgθ(2°≤ θ≤20°)
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Offset	1. Wind Loading, Operational (Maintain Precision)		17m/s~20m/s
2. Drive Type	Manual	2. Wind Loading, Operational (Decrease Precision)		24m/s~28m/s
3. AZ Travel	360°	3. Wind Loading, Survival (Fixed Heavenward)		32m/s~37m/s
4. EL Travel	5° to 85°	4.Ambient Temperature		-40ºC to 60ºC
5. Reflector Material	Steel	5.Atmosphere		80KPa~110KPa
6. Reflector Segments	1
7. Mount Type	Ground mount/ Multifunction type
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.

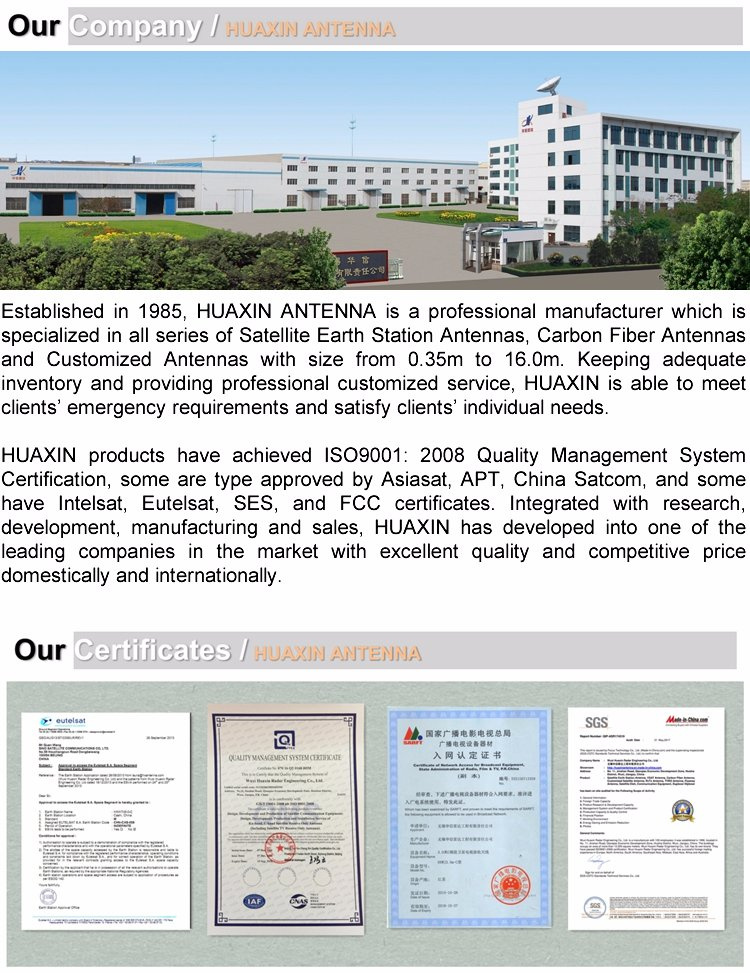

Company Introduction

Established in 1985, HUAXIN ANTENNA is a professional manufacturer which is specialized in all series of Satellite Earth Station Antennas, Carbon Fiber Antennas and Customized Antennas with size from 0.35m to 16.0m. Keeping adequate inventory and providing professional customized service, HUAXIN is able to meet clients' emergency requirements and satisfy clients' individual needs.

HUAXIN products have achieved ISO9001: 2008 Quality Management System Certification, some are type approved by Asiasat, APT, China Satcom, and some have Intelsat, Eutelsat, SES, and FCC certificates. Integrated with research, development, manufacturing and sales, HUAXIN has developed into one of the leading companies in the market with excellent quality and competitive price domestically and internationally.

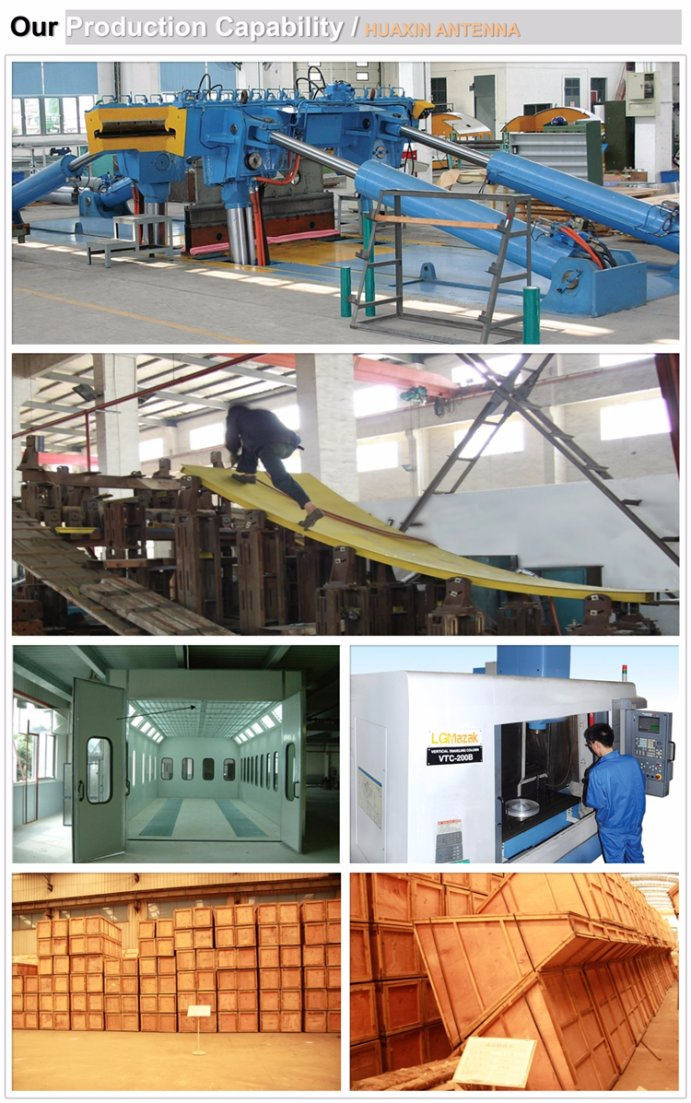

Manufacturing Ability

Factory covers an area of 395000 sq FT, which owns workshop area of 215300 sq FT and research & development center area of 54000 sq FT.

Professional R&D center and test center (antenna feed technology lab, microwave test center, antenna far-field test center)

Independently design, develop and manufacture all kinds of antenna mould and antenna parts, which can effectively reduce the cost and shorten the lead time.

Excellent Production Capacity - 2 or 3 Shifts, able to operate big projects in short time; Keep a large stock of goods; Prompt and short period of delivery.

Precise CNC machine, dedicated tooling equipment:

Structural component processing equipment: CNC Machine Centre, CNC Gantry Milling Machine, CNC Boring Machine, CNC Lathe, CNC Vertical Drill Machine, CNC Cutting Machine, CNC Bending Machine

Panel processing equipment: Panel stretcher, Large-tonnage Hydraulic Machine, Autoclave

Tooling: Single Panel Riveting Tooling, Reflector Assembly Tooling

Surface Accuracy Measuring Equipment: MPS/S Single Camera Industrial Photogrammetric System

Electric Performance Test Equipment: Scalar Network Analyzer, Scalar Network Signal Source, Spectrum Analyzer, Signal Source

Surface Treatment Equipment: Shot blasting machine, Surface Grinding Machine, Professional Clean Spray Room
