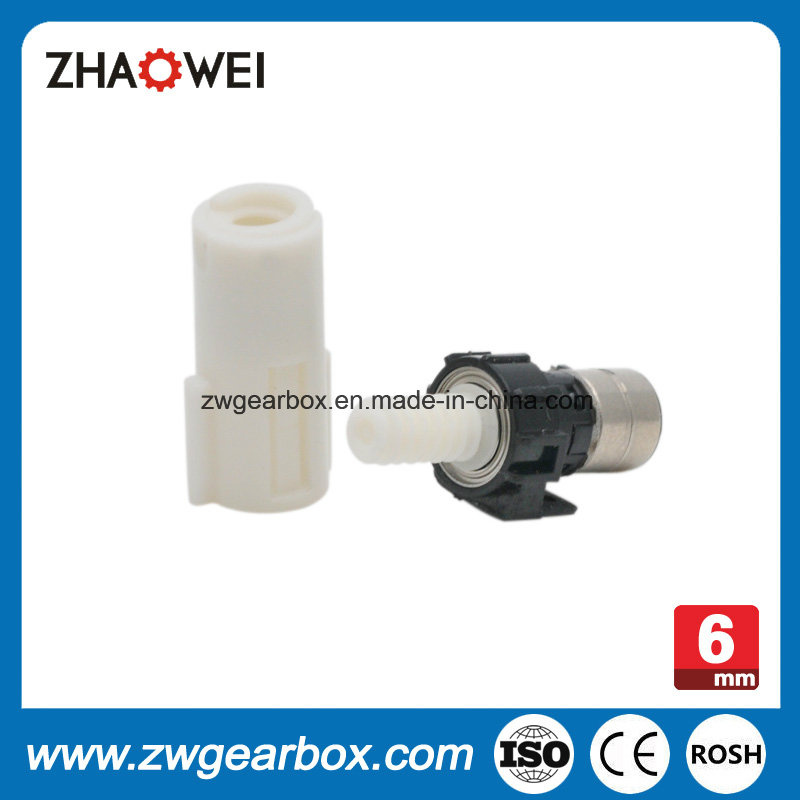

6mm Small Stepper Gear Motor for Mobile Phone Camera Gearbox

Prod Model:	ZWDZ006006
Voltage:	3V
Gearbox & Motor Dia:	6mm & 6mm
No Load Current:	55 Ma Max
Rated Load Current:	100 Ma Max
No Load Speed:	235rpm
Rated Load Speed:	176rpm
Rated Load Torque:	30 GF.Cm
Max Rated Torque:	60 GF.Cm
Gear Ratio:	136:1
Gearbox Type:	Plastic Gear Head
Application:	Mobile Phone Camera
Number Of Stator:	Customize
Excitation Mode:	Customize
Operate Mode:	Customize
Type:	Worm Planetary Gearbox
Certification:	RoHS,ISO14001,Ts16949
Brand:	Zhaowei

Product Description

6mm Small Stepper Gear Motor For mobile Phone Camera Gearbox

Product Description

1)Specification
Voltage: 3V
No-load speed:47 rpm
Load Torque:60g.cm
worm gear motor
Model Number:ZWDZ006006
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Mini digital, medical, intelligent mechanical
Certification:CCC, ROHS, TST16949, SGS
Type: small  Stepper gear motor
Construction:Permanent Magnet
Commutation:Brush
Protect Feature:Drip-proof
Speed(RPM):47/240/1200rpm
Continuous Current(A):5~40mA
Output Power:0.07~0.2W
Voltage(V):0.2~6VDC
Efficiency:IE 1
Motor dia.:6mm
Gearbox dia.:6mm
Type:Robot mini 6mm planetary gearbox
Gear ratio:26/136/700
Total length:16.35/18.7/21.05mm
Shaft dia.:2.0mm
Noise:45dB(A)
Material:Plastic
Application:Camera, Mechanical arm, RC, Mini digital products, Medical
Customized:Accepted

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWPD006006-6	3.0	6200	45	4669	100	1.6	0.16	14	60	120	5.14	4.7
ZWPD006006-26	3.0	1200	50	907	100	7.2	0.71	16.35	60	120	26.45	7.05
ZWPD006006-136	3.0	235	55	176	100	30	2.94	18.7	60	120	136.02	9.4
ZWPD006006-700	3.0	46	60	40	100	60	5.88	21.05	60	120	700	11.75

above specifications just for reference and customizable according to requirements.

2)Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk
Office automation equipments	CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine
Toys and models	radio control model, automatic cruise control, ride-on toy
Medical equipments	blood pressure meter, breath machine
Industrials	air freshener, display, flow control valves
Electric power tools	electric drill, screwdriver
Precision instruments	monitor, optics instruments

Our Services
ODM & OEM
Gearbox design and development
Related technology support

Packaging & Shipping
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.

Company Information
Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
1) Competitive Advantages
18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
2) Main Products
Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.

Certifications
We Have passed to hold ISO9001, ISO14001 and TS16949.
and more...

FAQ
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
Please send an inquiry .
