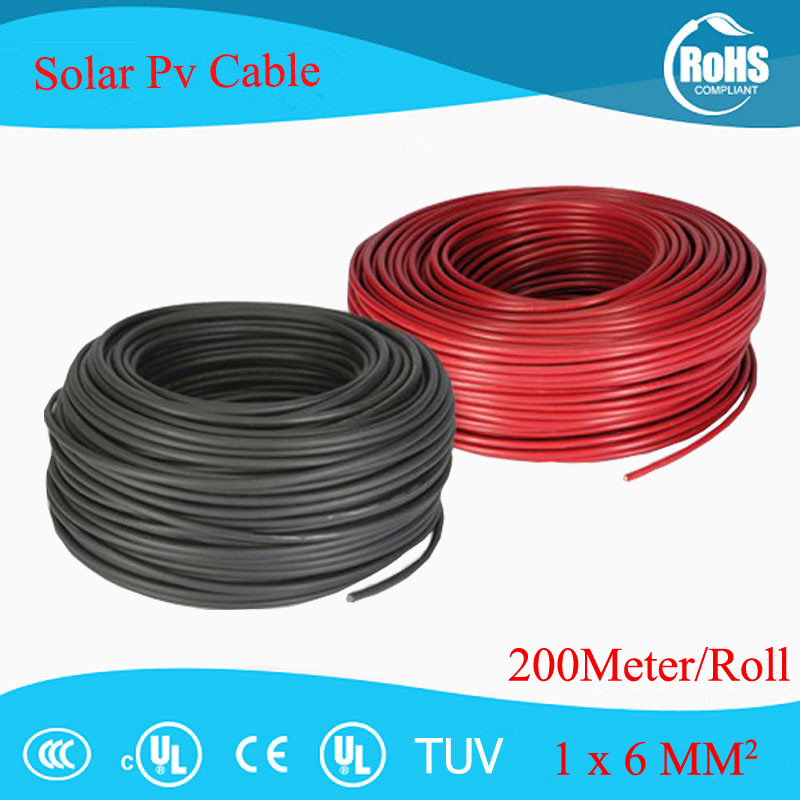

6mm2 10AWG Photovoltaic System Cable
| Price: |
US $ 0.2-0.4/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
1X 6 mm2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solar Cable: |
PV1-F |
| Conductor: |
Tinned Copper Wire, Class 5 (as Per IEC 60228) |
| Insulation: |
No Halogen Po Insulation |
| Sheath: |
No Halogen Po Sheath |
| Rated Voltage: |
AC 0.6/1kv |
| Temperature Range: |
-40°c~+90°c, Dry/ Humidity |
| Max.Working Temperature Of Conductor: |
120°c |
| During Short Circuit: |
200°c |
| TUV Standard: |
En 2pfg 1169 |
| Solar Wire: |
1.5-35mmsq |
| Application: |
XLPE |
| Voltage: |
High Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Model: |
1 X 4.0 Mmsq |
| Brand: |
Leader |
Product Description
1.Executive Standard:
PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard Committee(Technical Specification 2PFG1169/08.2007 in Rhein TUV company German).
2.No-haogen PV-Cable Type:

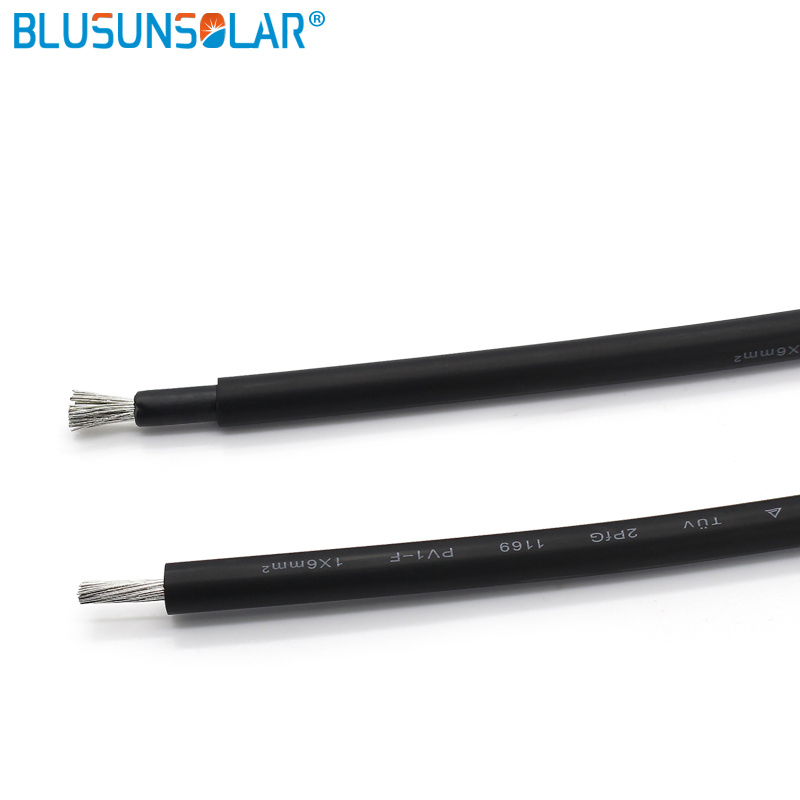

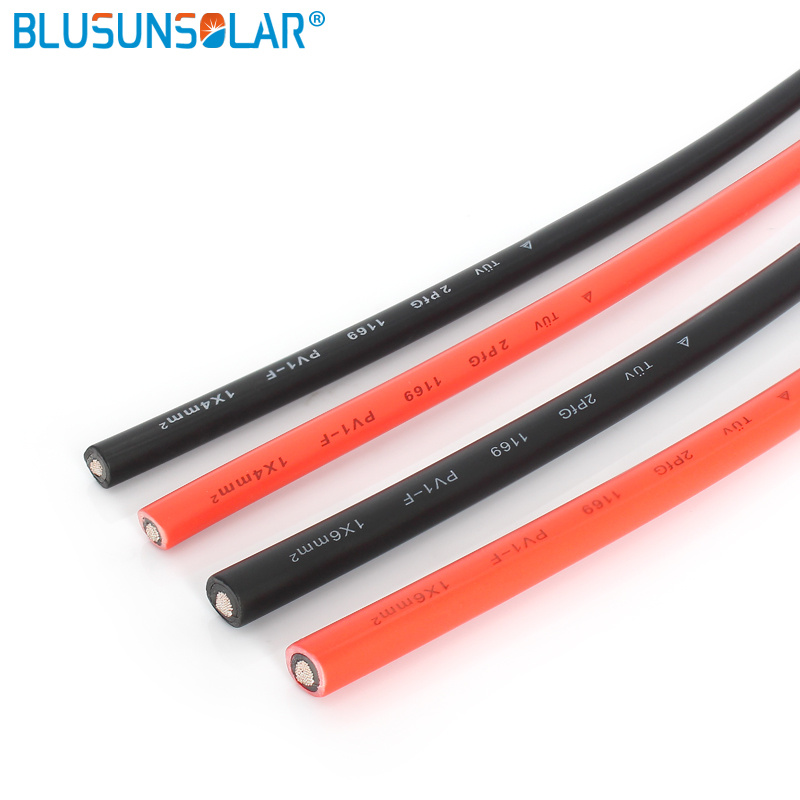

PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable.
3. Application:
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
4.Cable Characteristics | MODEL | PV1-F |
| Conductor | Tinned copper wire,class 5 (as per IEC 60228) |
| Insulation | No Halogen PO insulation |
| Sheath | No Halogen PO sheath |
| rated voltage | AC 0.6/1KV |
| | DC 1.8KV |
| Temperature range | -40°C~+90°C,dry/ humidity |
| Max.working temperature of conductor | 120°C |
| During short circuit | 200°C |
| Standard | EN 2PFG 1169 |
5.PV1-F Structure Parameter | type | Cross Sectional Area(mm2) | Conductor structure( Strand /mm) | diameter(mm) | insulation thickness(mm) | sheat thickness(mm) | cable diameter(mm) | DC resistance at 20°C(Ω/km) |
| PV1-F | 1.5 | 48/0.2 | 1.6 | 1.0 | 0.8 | 5.2 | 12.2 |
| PV1-F | 2.5 | 77/0.2 | 2.0 | 1.0 | 0.8 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 2.6 | 1.0 | 0.9 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 3.2 | 1.0 | 0.9 | 7.0 | 3.11 |
| PV1-F | 10 | 77/0.41 | 4.4 | 1.0 | 0.9 | 8.2 | 1.84 |
| PV1-F | 16 | 119/0.41 | 5.5 | 1.0 | 1.1 | 9.7 | 1.16 |
| PV1-F | 25 | 189/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |
| PV1-F | 35 | 244/0.41 | 7.5 | 1.2 | 1.2 | 12.3 | 0.529 |
Company information:
LEADER ENERGY is a new energy enterprise,located in SHENZHEN, China,specializing in R&D,manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;
with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems, and by the products R&D,mold design,production,sales through-train service.With advanced technology,our products have been authorized by TUV Rhineland,UL,CE successfully.
LEADER Company adheres to self R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams,hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand. | Business Type | -Manufacturer
-Exporter |
| Export Percentage | - 85 percent |
| Year Established | - 2008 |
| Registered capital | - 10,000,000 |
| Certificate | - CE
- Rosh
- TUV
- UL
- ISO9001 |
| Primary Competitive Advantages | - Professionalism
- Quality Test
- Equipment
- Reliability
- Fast response
- Totally Solution
- Technical Support |
| No. of Total Staff | - 100 to 200 |
| Product Range | - Solar Connector
- Waterproof cable connector
- Solar junction box
- Solar Cable
- Industry Control & Protection |
| | |
If you have more inquiry,please feel free to contact us.
