6s 10A PCM 22.2V 6s4p Battery Management System BMS

Name: 6s 10A PCM 22.2V 6s4p Battery Management System BMS
Brand: all-electronics-online.com
SKU: 730568732
Availability: InStock
Rating: 4.6 (23 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	6S 10A PCM 22.2V 6S4P
Battery Series:	16s
Over-Discharge Voltage Protectio:	2.40V/Cell
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

Overview
Quick Details
Place of Origin:Guangdong, China (Mainland)
Model Number:6S1010-PCM(701)
Maximal continuous Discharging current .:4A
Application:Battery
Type:PCM/BMS/PCB
Packaging & Delivery
Packaging Details
standard export package

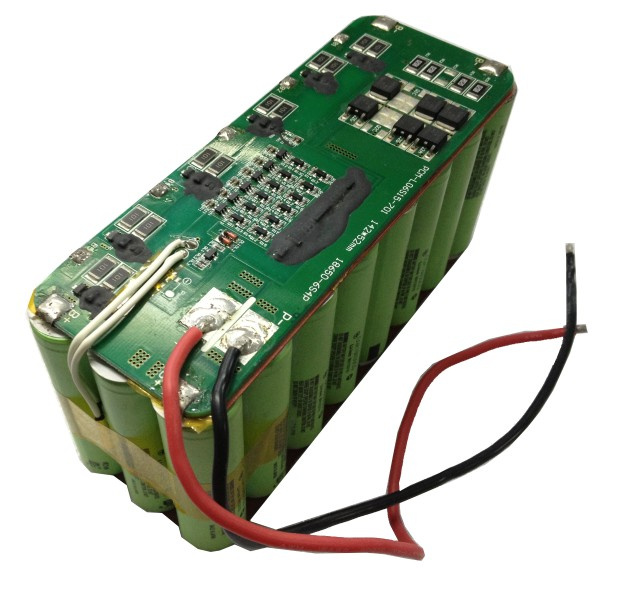

18650/6S4P Li-ion Battery Pack 22.2V/8.8Ah
Model:OSN-18650-6S4P
Item	Specification		Remark
Nominal capacity	8800mAh		0.5C discharge Cell: 18650
Nominal voltage	37V		3.7V / 1Cell
Charging voltage	42V±0.05V		4.2V / 1Cell
Charging method	CC/CV		(Constant-current and -Voltage with Limited current
Standard charging time	2000mA/5hour,3000mA/3.5hour		Battery capacity÷charging current×1.5
charging current	4400mA(0.5C)		0 ~ +40°C
Maximum charging current	8800mA(1C)		0 ~ +40°C
Continuous discharge current	8800mA(1C)		-20 ~ +60°C
Discharge cutoff voltage	25V		2.5V / 1Cell
Short circuit protection	Exterior short circuit		Automatic recovery
Internal resistance	≤200mΩ		AC Impedance 1kHz
Cycle life	≥500
Operating temperature	Standard Charge	0 ~ +40°C
	Standard Discharge	-20 ~ +60°C
Outline dimension	L130W56H71mm		Length x wide x height
Pre-wired			Red = Positive,Black = Negative
Protection Circuit Module:OSN-6S1010-PCM
Maximal continuous charging current	10A
Maximal continuous Discharging current	10A
Over-charge detection voltage	4.25V±0.025V		single cell
Over-charge release voltage	4.15V±0.05V		single cell
Over-charge detection delay time	0.5S-1.5S		single cell
Over-discharge detection voltage	2.50V±0.08V		single cell
Over-discharge release Voltage	3.0±0.10V		single cell
Over-discharge detection delay time	50-150mS		single cell
Over-current detection	50±10A		can adjust
Over-current delay time	5-15mS
18650/6S4P Li-ion Battery pack

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
