| Prod Model: |
TL613 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
98*25*52mm (L W H) |
| Weight: |
0.3kg |
| Color: |
Black / White / Grey |
| Terminal: |
F1 |
| Charge (Cycle Use): |
7.2~7.5V |
| Charge (Standby Use): |
6.7~6.9V |
| Designed Life: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electronic Scales,Home Alarm System / Power Sports |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

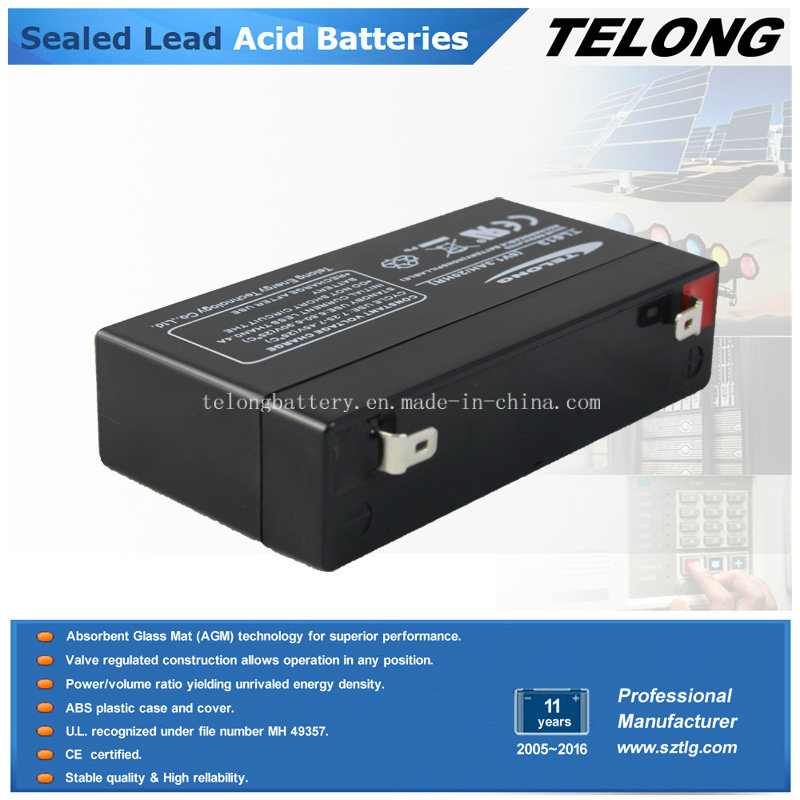

TELONG TL613 (6V 1.3ah) lead acid battery utilizing the latest advance design Oxygen Recombination
Technology,it It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. And the Battery is widely used in emergency lighting, alarm system, ups, electric scale and so on.
BATTERY CONSTRUCTION
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and
freedom from electrolyte maintenance or water adding.
2).Not restricted for air transport-complies
3).CE UL MSDS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications. Maintenance-free operation.
7).Low self discharge. Long Life Design
8).Wide Operation Temperature Range
9).Available in flame retardant ABS material for the battery case
CHARACTERISTICS
| Capacity | 20 hour rate(0.065A ) | 1.30 AH |
| 25'C (77'C) | 10 hour rate(0.110A ) | 1.10 AH |
| | 1 hour rate(0.850A ) | 0.85 AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 50 milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
| Self-Discharge | Capacity after 3 month storage | 91% |
| 25'C (77'F) | Capacity after 6 month storage | 82% |
| | Capacity after 12 month storage | 64% |
| Terminal | F1 |
| Charge | Initial Charging Current less than 0.3 A |
| (Constant Voltage) | Voltage 7.2-7.5V |
| | Voltage 6.7-6.9 V |
APPLICATIONS
UPS / Electronic scales
Home Alarm System / Power Sports
Emergency Exit Lighting / DC power Supply
Other standby or primary power supplies.
OTHER INFORMATION
| 1 | Logo: Mine or Yours (silk printing) |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 15~25 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE
|
