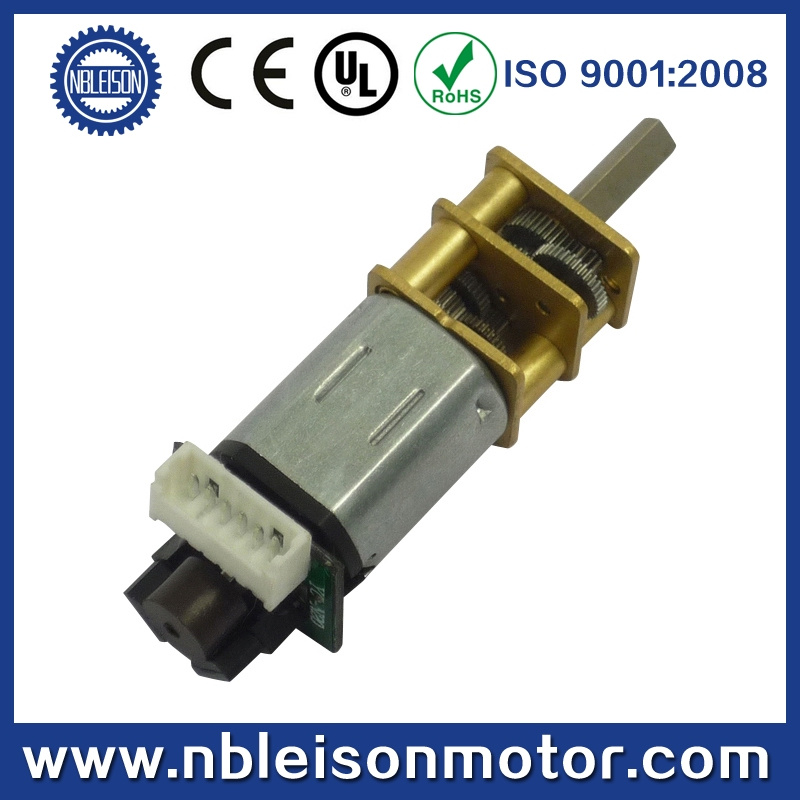

6V 12V N20 Micro Metal Gear Motor with Encoder

Name: 6V 12V N20 Micro Metal Gear Motor with Encoder
Brand: all-electronics-online.com
SKU: 720695495
Availability: InStock
Rating: 4.4 (71 reviews)

Price:	US $ 6.58-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	N20AGB-E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Voltage:	1.5-12V
Structure And Working Principle:	Brush
Operating Speed:	Low Speed
Application:	Robot, Toys, Door Lock, Monitor

Product Description

1. Voltage: 1.5, 3V, 4.5V, 5V, 6V, 7V, 9V, 12V

2. Speed: 10rpm, 20rpm, 25rpm, 30rpm, 40rpm, 50rpm, 70rpm, 100rpm, 150rpm, 200rpm, 250rpm, 300rpm, 350rpm, 400rpm
500rpm, 700rpm, 1000rpm, 3000rpm and so on Other special speed can be requirement

3. Ratio: 1: 10-1: 1000

4. High Stall torque from 0.1-5.5kg. Cm.

5. Dimension: 12mm dia gearbox, 15mm motor body length, 3mm shaft diameter 4.4mm, 8mm and 10mm standard shaft length

6. Application in: Robot, Automatic Door Lock, Toys, Camera, Monitor, hair curler

7. Reduction Ratio 1: 10, 1: 20, 1: 30, 1: 50, 1: 63, 1: 100, 1: 150, 1: 210 1: 250, 1: 298, 1: 380, 1: 1000

Please fell free to contact with me if you have this motor specificaton or drawing.

8 This motor can with Magnetic encoder. 1PPR, 2PPR, 3PPR and so on.

Plesae contact with me for more details about this motor.

Model	Ratio	Voltage	No Load		At Maximum Efficiency				Stall
		Voltage	Speed	Current	Speed	Current	Torque	Output	Torque	Current
		V	r/min	mA	r/min	mA	g.cm	W	g.cm	mA
N20AGB1000-07280	1/1000	5	10	40	9	65	600	0.30	3600	380
N20AGB1000-09168	1/1000	6	21	60	19	130	1000	0.35	5500	820
N20AGB298-09195	1/298	6	52	40	45	120	400	0.2	1800	520
N20AGB298-09168	1/298	6	72	50	62	140	480	0.25	2400	820
N20AGB298-11115	1/298	6	100	80	85	250	600	0.30	3500	1650
N20AGB100-08230	1/100	12	300	50	150	180	350	0.35	1800	950
N20AGB50-09168	1/50	6	420	70	320	230	160	0.20	800	900
N20AGB50-08230	1/50	12	580	50	440	230	250	0.27	1300	950
N20AGB20-09168	1/20	7	1250	70	1000	210	60	0.18	300	950
