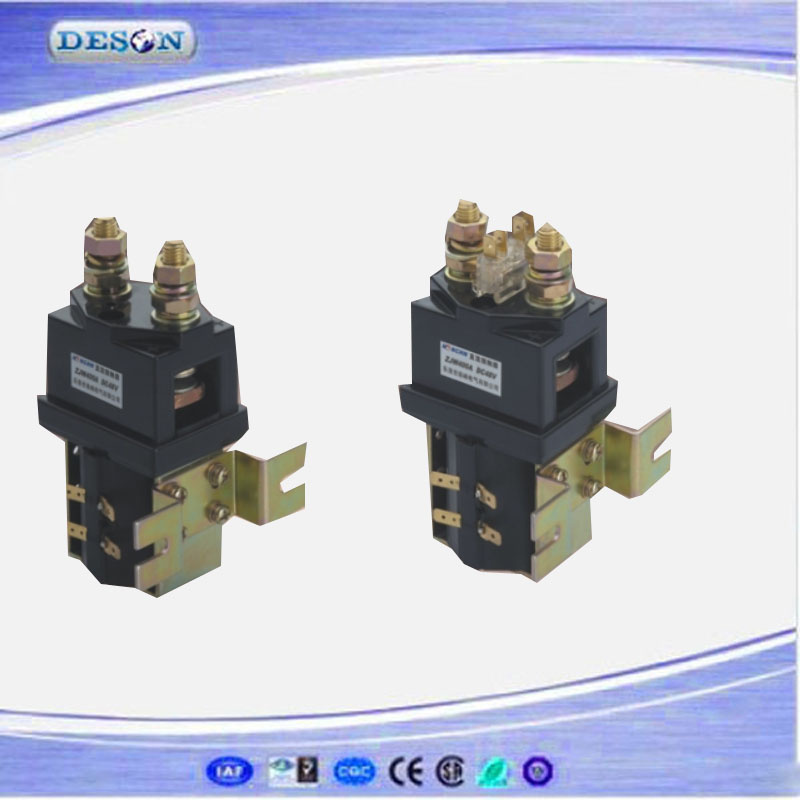

6V-150V 50Hz/60Hz 400A Electrical DC Contactor

Prod Model:	ZJW-400
Rated Voltage:	6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V
Frequency:	50/60Hz
Rated Current:	400A
Contact Form:	1 No

Product Description

6V-150V 50Hz/60Hz 400A 1 NO Electrical DC Contactor

         Suitable for electric forklift, battery cars, tractors, excavators, brick machine, cleaning vehicles, automotive air-conditioning, communication power supply, uninterruptible power supply, power supply switches such as electroplating electronic control system control circuit, has the advantages of small volume, large load capacity, long service life, easy maintenance and other characteristics, welcomed by users. The products in accordance with the standard of the JB2286-78, JB3974-85, YD / 585-92, YD / T512-92 requirements; the plant and related test unit test, meet the standard requirements, the user use for many years, the maximum to meet user needs, quality and reliable.

USES:

This product have one normally open contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.


ZJW         400A        /            O                  -    S
I                  I                          I                         I
Type  Rated Current       Rated Voltage      With Mirco Switch




Product Type	ZJW-400
Rated voltage	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V
Contact circuit rated load current (A)	400A
Typical voltage drop across contacts per 100A	≯80mV
the cooling pull-in voltage at (20±5)ºC (V)	≯70%
the cooling drop-out voltage at (20±5)ºC(V)	≯30%,≮5%
the allowed range of coil voltage	±20%
Drop-out time(n/o contacts to open)	5ms
Pull-in time (n/o contacts to close)	20ms
Disconnect the maximum contact bounce time	3ms
Insulation resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	800A/5ms at 48V DC
Coil power (W)	8-13
Electric life	20000 times
Mechanical life	≯30%,≮5%
Work specification	Continuous or Intermittent
Contact form	1 NO
Contact material	AgCdO(12)
Auxiliary contact rated load (choose)	2A/48VDC, 5A/24VDC
Testing organization certification	CE,FCC
