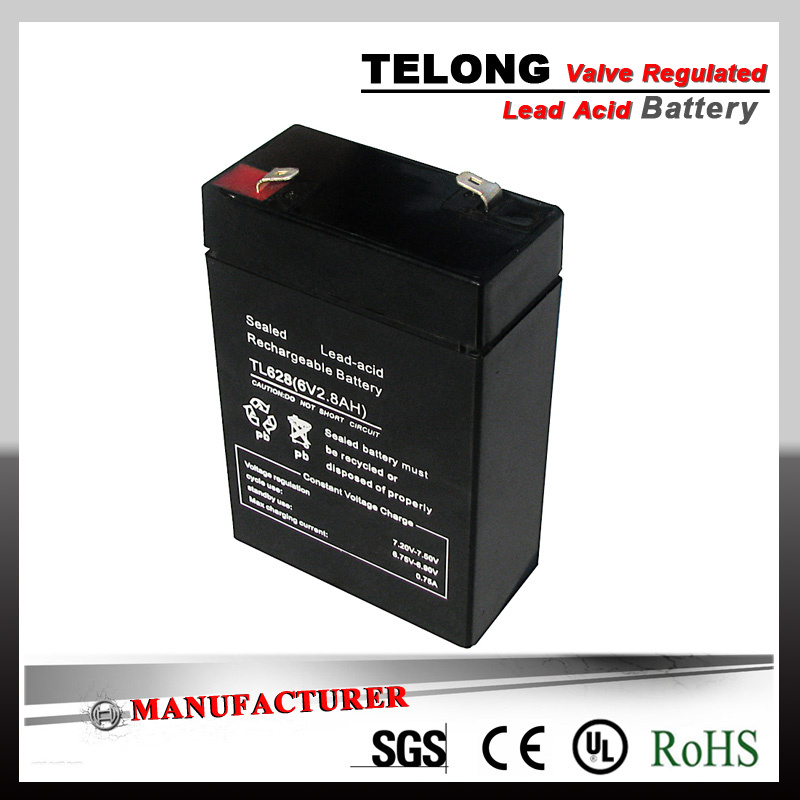

6V 2.8ah Rechargeable Power Battery with UL CE RoHS

Prod Model:	TL628
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Normal Capacity:	2.8ah
Hour Rate:	20
Size:	66(L)*33(W)*98(H)Mm
Weight:	0.55kg
Color:	Black / White
Container Material:	ABS
Charge Voltage (Cycle):	7.25~7.45V
Charge Voltage (Float):	6.8~6.9V
Designed Lifef:	3 Years
Warranty:	1 Year
Type:	Lead-Acid Batteries
Usage:	Emergency Light , Toys , Power Tools
Nominal Voltage:	6V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

TELONG 6V2.8Ah rechargeable valve regulated lead acid battery is a maintenance-free storage battery. It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. The battery is sold to the customers from all over the world and has received good reputation from our partners.



BATTERY CONSTRUCTION

Electrolyte	Positive Plate	Negative Plate	Container
Sulfuric acid	Lead dioxide	lead	ABS
Cover	Safety valve	Terminal	Separator
ABS	Rubber	Copper	Fiberglass

SPECIFICATION

Nominal Voltage		6V
Rated capacity (20 hour rate)		2.8 Ah
Dimension	Length	66mm (2.57 inches)
	Width	33mm (1.29 inches)
	Height	98mm (3.82inches)
Weight Approx		0.55Kg(1.21Ibs)

QUALITY ASSURANCE OF 12V 17AH Sealed Lead Acid Battery

1).Warranty period of one years: the date of the battery from the factory within 12 months, where the Company or the
authority of the professional testing organization determine the quality of failure are battery manufacturers, at designated
locations to give a free replacement battery with the specifications of the new; replace the battery when I While failure
to recover the battery.

2).The identification of large current discharge: new arrival in the battery, 25 ± 1 ºC temperature, fully charged battery
to the model of large current 3 times the rated discharge capacity 7 min, the battery voltage drops below 1.6V / cell,
determined to be unqualified.

3).Determine the capacity of the exception: the new battery installed in the 25 ± 2 ºC after fully charged capacity test,
in three cycles, the 20hour rate capacity can not reach the rated capacity of 90%, After five cycles, 20 hours rate
capacity can not meet 100% of the rated capacity, determined to be ineligible

4).Standard: The Company entered into force in a clear customer contract requirements, contract requirements should be
the standard;if the customer no special requirements, refer to China national machinery Industrial Standard

5).Normal use and maintenance: by TELONG "Lead Acid battery Manual " Operation and Maintenance

6).Quality: The company "technology first, the tree class enterprise; continuous improvement, so the battery quality;
customer first, creating international brand " of quality in strict accordance with ISO9001: 2000 quality system
standards requirements, passion for customer service.



CHARACTERISTICS

Capacity 25'C (77'C)		20 hour rate(0.14A )			2.80AH
		10 hour rate(0.26A )			2.60AH
		5hour rate(0.48A )			2.40AH
		1 hour rate(1.68A  )			1.68AH
Internal Resistance		Full charged Battery at 25  'C(77'F  )			38.5milli-ohm
Capacity affected by Temp		40'C (104F)			102%
		25'C (77'F)			100%
		0'C (32'F)			85%
		(-15'C )5'F			65%
Self-Discharge 25'C (77'F)		Capacity after 3 month storage			91%
		Capacity after 6 month storage			82%
		Capacity after 12 month storage			64%
Terminal		F1
Charge (Constant Voltage)		Initial Charging Current less than 1.12 A
		Voltage 7.25-7.45V
		Voltage 6.8-6.9V

APPLICATIONS

Control equipments / Emergency Light
Solar Light / Portable Lights
Alarm systems / Power tools
Electric toys
Medical equipments
Communication Equipment
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers



No.	Model No.	Rated Voltage (V)	Rated Capacity (AH)	Form Factor(mm)			terminal	Weight ±4%(Kg)
				L	W	H
				mm	mm	mm	Type	Kg
1	TL430	4	3	90	34	66	F1/F2	0.45
2	TL435	4	3.5	90	34	66	F1/F2	0.45
3	TL445	4	4.5	47	47	100	F1/F2	0.5
4	TL460	4	6	47	47	100	F1/F2	0.55
5	TL612	6	1.2	98	25	56	F1	0.3
6	TL623	6	2.3	66	33	98	F1	0.50
7	TL628	6	2.8	66	33	100	F1	0.55
8	TL632	6	3.2	134	34	67	T1	0.65
9	TL630	6	3	70	47	100	T1	0.63
10	TL635	6	3.5	70	47	100	T1	0.67
11	TL640	6	4	70	47	100	T1/T8	0.67
12	TL645	6	4.5	70	47	100	F1	0.73
13	TL650	6	5	70	47	100	F1/F2	0.73
14	TL660	6	6	70	47	100	F1/F2	0.82
15	TL670	6	7	151	34	100	F1/F2	1.16
16	TL680	6	8	151	34	100	F1/F2	1.16
17	TL6100	6	10	151	50	100	F1/F2	1.55
18	TL6120	6	12	151	50	100	F1/F2	1.65

OTHER INFORMATION


1	Logo: silk printing
2	Packaging: in Carton Box Packing in Wooden Pallet
3	Payment terms: T/T(with 30% deposit); L/C at sight
4	Date of delivery: 25-35 days after receipt of the deposit
5	Loading port: Shenzhen (China)
6	Sample charge: FREE
7	The price of the battery is based on Lead Price of RMB12500-13000/ton. The above price  would be revised upwards or downwards byaround 2% with every increase or decrease of RMB500/Ton in the lead price at SMM.(Shanghai Nonferrous Metal Market).Please visit http://www.smm.cn for the latest price at SMM.
