| Prod Model: |
TL62000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
306(L)*168(W)*222(H)Mm |
| Number Of Cell: |
3 |
| Approx Weight: |
28.2kg |
| Color: |
Black/ Grey |
| Container: |
ABS |
| Max Discharge Current: |
2000A (5s) |
| Cycle Use: |
7.2V~7.5V |
| Standby Use: |
6.7V~6.9V |
| Designed Life: |
10 Years |
| Warranty: |
3 Years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Communication Power Supply |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
6V |
Product Description

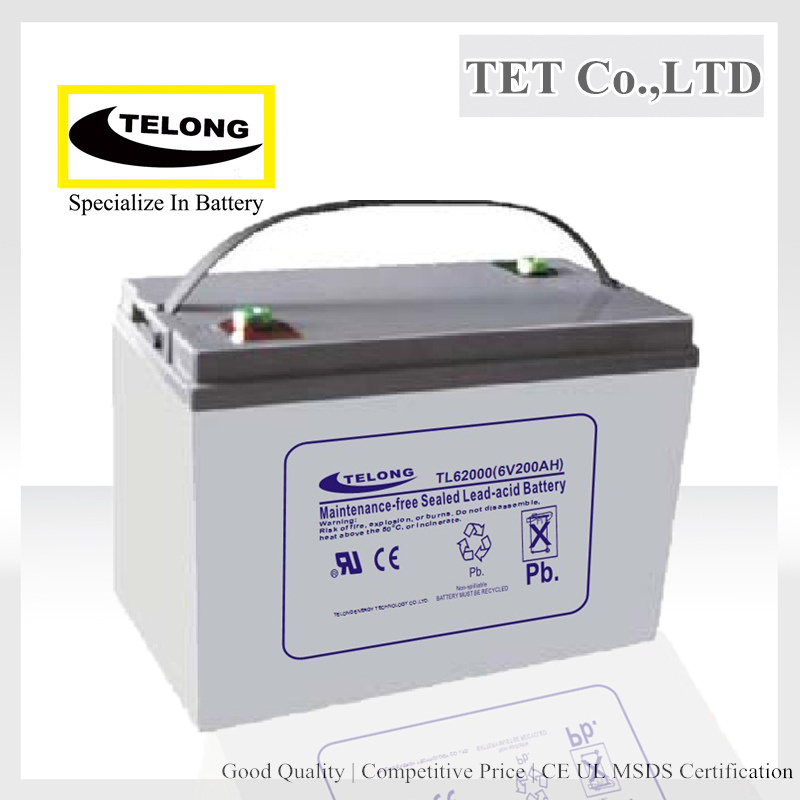

TELONG 6V200ah Deep cycle Gel lead acid battery is a maintenance-free storage battery. It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. The Battery is widely used in solar system, UPS , Communication Equipment and so on.
SPECIFICATION
| Nominal Voltage | 6V |
| Rated capacity (10 hour rate) | 200 ah |
| Dimension | Length | 306mm (11.93inches) |
| Width | 168mm (6.55 inches) |
| Height | 222mm (8.66inches) |
| Weight Approx | 28.2Kg(62.18Ibs) |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS
Capacity
25'C (77'C) | 10 hour rate(20.0A ) | 200AH |
| 5hour rate(34.4A ) | 172AH |
| 1 hour rate(122.0A ) | 122AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 1.4milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 60A |
| Voltage 7.2~7.5 V |
| Voltage 6.7~6.9 V |
APPLICATIONS
Solar system
Communication Equipment / Telecommunication
Alarm systems / Medical equipments
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 15~25 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE
|
