6V 200ah Deep Cycle UPS Battery with Ce, UL
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
NPC200-6 |
| Weight: |
28.2kg |
| Warranty: |
3 Years |
| Certificate: |
UL,Ce,ISO |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Sealed Lead Acid battery NPC200-6
Features:Place of Origin:CN;GUA Size:243*187*275*275mm
Brand Name:CCNE,OEM Certificate:UL,CE,ISO
Nominal Capacity:200ah Warranty:3Years
Nominal Voltage:6v Weight:28.2kg
Type:sealed rechargeable battery Usage:Stanby & Cycle Use, Solar & Wind
Brand:MCA, CCNE, OEM
Battery type:Lead Acid Battery
Battery case:ABS
Battery Color:
Package:
Battery Type:Deep-Cycle batteries are designed and produced against the relevant standard in JISC8702 and IEC60876-2.We design the series of batteries with much thicker plates which have very special alloys and specific pastes inside. So that extends our NPC batteries too much in deep cycle life and it can be longer 30% than NP batteries in deep cycle application.About NPC:Voltage: 6V &12V Capacity: 5AH to 250AH Service Life: The design life is 8-year in cycle life and it can reach 3 years in service at 20oC / 68oF to 25oC / 77oF. We offer 2-year quality warranty.General Features
- Nonspillable
- Sealed and Maintenance-free Operation
- High Quality and High Reliability
- Exceptional Deep Discharge Recovery
- Low Self-discharge
- Long Service Life
- Solid Copper Terminals
- C&F Technology (Container Formation for plates)
- Computer-aided Design and Manufacturing
- UL, CE, VdS Approved
Typical Applications
- Electric Scooters
- UPS systems
- Solar power system
- Wind Power system
Catalogue of NPC| | | | | | | | | | NPC series |
| Deep-Cycle Batteries (Black + Orange) | | | | | | | | |
| | | | | | | | | | | |
| Int'l Model | Factory Model | Volt (V) | Capacity (Ah @ 10h) | Dimension (mm) | Approx. Weight | Terminal |
| L | W | H | T.H. | Type | Position |
| NPC4-12 | FCC12-5 | 12 | 4 | 90 | 70 | 101 | 107 | 1.5 | F1/F2 | A |
| NPC7-12 | FCC12-9 | 12 | 7 | 151 | 65 | 94 | 100 | 2.35 | F1/F2 | D |
| NPC10-12 | FCC12-12 | 12 | 10 | 152 | 99 | 96 | 102 | 3.4 | F1/F2 | D |
| NPC15-12 | FCC12-14 | 12 | 12 | 152 | 99 | 96 | 102 | 3.8 | F1/F2 | D |
| NPC18-12 | FCC12-18 | 12 | 18 | 181 | 77 | 167 | 167 | 5.4 | T1 (M5X16) | B |
| NPC20-12 | FCC12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 5.7 | T1 (M5X16) | B |
| NPC24-12 | FCC12-24AT | 12 | 24 | 165 | 126 | 174 | 179 | 8 | T3 (M4X12) | B |
| NPC26-12 | FCC12-26AT | 12 | 26 | 166 | 175 | 126 | 126 | 8.2 | T2 (M6X16) | B |
| NPC33-12 | FCC12-33AT | 12 | 33 | 196 | 130 | 155 | 167 | 10.2 | T3 (M6X20) | A |
| NPC38-12 | FCC12-42AT | 12 | 38 | 198 | 166 | 174 | 174 | 12.8 | T3 (M6X16) | B |
| NPC50-12 | FCC12-55AT | 12 | 50 | 229 | 138 | 208 | 212 | 16.9 | T3 (M6X16) | A |
| NPC65-12 | FCC12-70AT | 12 | 65 | 350 | 167 | 178 | 178 | 21.2 | T3 (M6X16) | B |
| NPC70-12 | FCC12-80BT | 12 | 70 | 260 | 169 | 211 | 215 | 24 | T3 (M6X16) | A |
| NPC80-12 | FCC12-90AT | 12 | 80 | 307 | 169 | 211 | 215 | 26.8 | T3 (M6X16) | A |
| NPC90-12A | FCC12-100AT | 12 | 90 | 331 | 174 | 214 | 219 | 29.6 | T4 (M8X16) | B |
| NPC100-12 | FCC12-120AT | 12 | 100 | 331 | 174 | 214 | 219 | 32.8 | T4 (M8X16) | B |
| NPC120-12 | FCC12-120BT | 12 | 120 | 407 | 174 | 210 | 233 | 34.2 | T5 (M8X16) | A |
| NPC150-12 | FCC12-150AT | 12 | 150 | 484 | 171 | 241 | 241 | 44 | T4 (M8X16) | A |
| NPC180-12 | FCC12-180CT | 12 | 180 | 522 | 240 | 219 | 224 | 58 | T5 (M8X16) | C |
| NPC200-12 | FCC12-220AT | 12 | 200 | 522 | 240 | 219 | 224 | 60 | T5 (M8X16) | C |
| NPC250-12 | FCC12-250AT | 12 | 250 | 520 | 268 | 220 | 225 | 70.5 | T5 (M8X16) | C |
| NPC130-6 | FCC6-130AT | 6 | 130 | 260 | 180 | 247 | 251 | 21 | T5 (M8X16) | F |
| NPC200-6 | FCC6-180AT | 6 | 180 | 260 | 180 | 247 | 251 | 28.2 | T5 (M8X16) | F |
| NPC220-6 | FCC6-200BT | 6 | 200 | 323 | 178 | 224 | 229 | 29.5 | T5 (M8X16) | E |
| NPC225-6 | FCC6-200AT | 6 | 200 | 260 | 180 | 247 | 251 | 30 | T5 (M8X16) | F |
FactoryMCA was established in 1999. We are a large-scale enterprise specializing in the R&D, production and sale of lead acid batteries. Moreover, we have in-house grid casting lines which can initially control and manage the products quality.
As one of the earliest lead acid battery manufacturer in China, we offer various series and whole models including General AGM Batteries, Stationary 2V AGM Batteries, Front Terminal AGM Batteries, Deep Cycle AGM Batteries, General Gel Batteries, Stationary 2V Gel Batteries, Front Terminal Gel Batteries, Deep Cycle Gel Batteries, which can be widely used in UPS System, Solar & Wind Power Generation System, Communication System, Golf Car, Motor Wheelchairs and etc. We also accept OEM/ODM orders to meet different requirements.

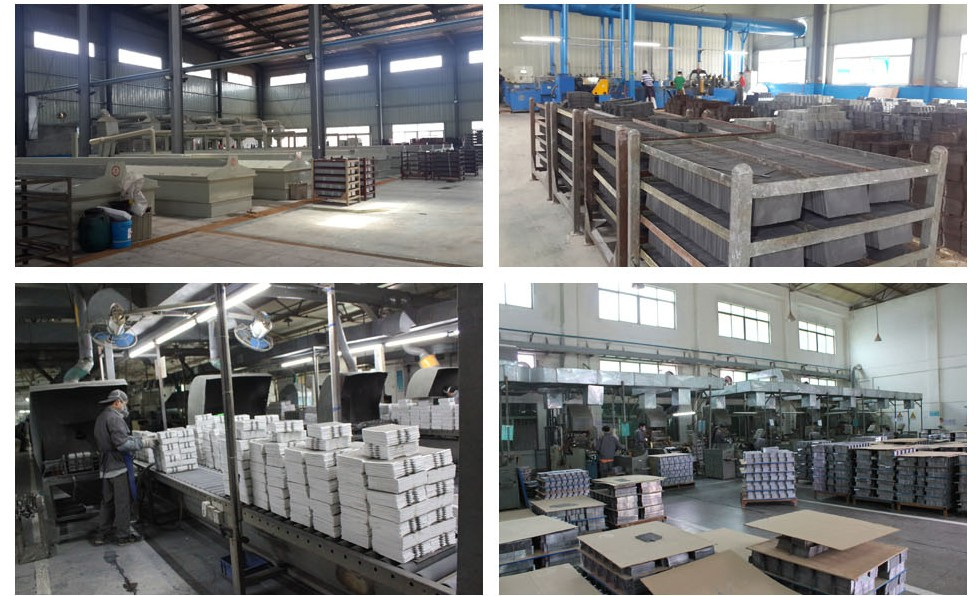

We can produce 300,000 pcs of 12V-7AH & 50,000 pcs of 12V-100AH batteries per month. We have been supplying many famous electronic or telecom companies like Siemens, India Telecom, China Mobile, China Telecom, China Unicom. Our solid reliable quality and efficient technical support make us as the most reputable lead acid battery manufacturer in China.Factory Tour
MCA, a group company, was set up in 1991 with its headquarter at East Cangjiang Industrial Zone, Gaoming District, Foshan City, Guangdong Province, China. The group company owns the three different factories to produce Lead acid batteries, UPS and Solar Power System. The total factory area is over 1 million of square meters.
MCA has been devoted to R & D, manufacturing and marketing in Lead acid batteries for more than 18 years and mainly supplied for our UPS and Solar Power system. Nowadays, we are going to export lead acid batteries as we enlarged our production capacity by 3 times than before. To offer our oversea customers more convenience, we set up export office specialized in handling all export business and the export office is located at RM1305, Friendship Bldg, Fuyi Road, Panyu, Guangzhou, China.
MCA Battery manufacture Co. Ltd has over 800 staff members including 28 technicians and we provide customers with our brands or by OEM orders. Our annual output is currently over 2 millions in quantity with its value of 50 millions US dollars.
We have been awarded such international certificates as ISO9001, ISO14001, CE and UL. Our lead acid batteries mainly include VRLA (AGM / SLA) batteries and starter batteries. VRLA batteries are mainly used for lanterns, emergency lightings, security and alarm system, UPS, telecommunication system and electric power system etc. Starter batteries are mainly for automobiles, motorcycles and ships. In addition, we designed and developed a kind of hybrid gel batteries, which are much better than ordinary AGM batteries in performance and the gel batteries are mainly used in solar power system and other deep cycle applications.
Our goal is to build first-class enterprise with quality products and better services. Our mission is to provide the human beings with green power and the better solution to any power systems.
