| Prod Model: |
TL632 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
134(L)*34(W)*60(H)Mm |
| Weight: |
0.62kg (1.37ibs) |
| Color: |
Black/ White/ Grey |
| Terminal: |
T1 |
| Container Material: |
ABS |
| Charge Voltage (Cycle): |
7.2~7.35V |
| Charge Voltage (Float): |
6.75~6.9V |
| Designed Life: |
3-5 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Emergency Light , Toys , LED Light |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
6V |
Product Description
TELONG ENERGY TECHNOLOGY Co.,LTD
ABOUT US:
Shenzhen Telong Energy Technology Co.,LTD was founded in 2005, Specialized in
researching,developing,producing and sales of lead acid battery, lithium battery and
Gel battery. Its worldwide sales network already covers more than 100 countries and
regions, and has a good cooperation partnership with several excellent operators.
PRODUCTS:
General AGM Lead Acid Battery (2v, 4v, 6v, 12v, 24v)
Deep Cycle Service AGM Battery (6v, 12v)
Front Access Terminal AGM Battery (12v)
GEL AGM Battery (2v, 12v)
OPzV,OPzS Tubular Gel Battery (2v, 12v)
Automotive batteries, Motorcycle batteries, Golf car batteries,etc.

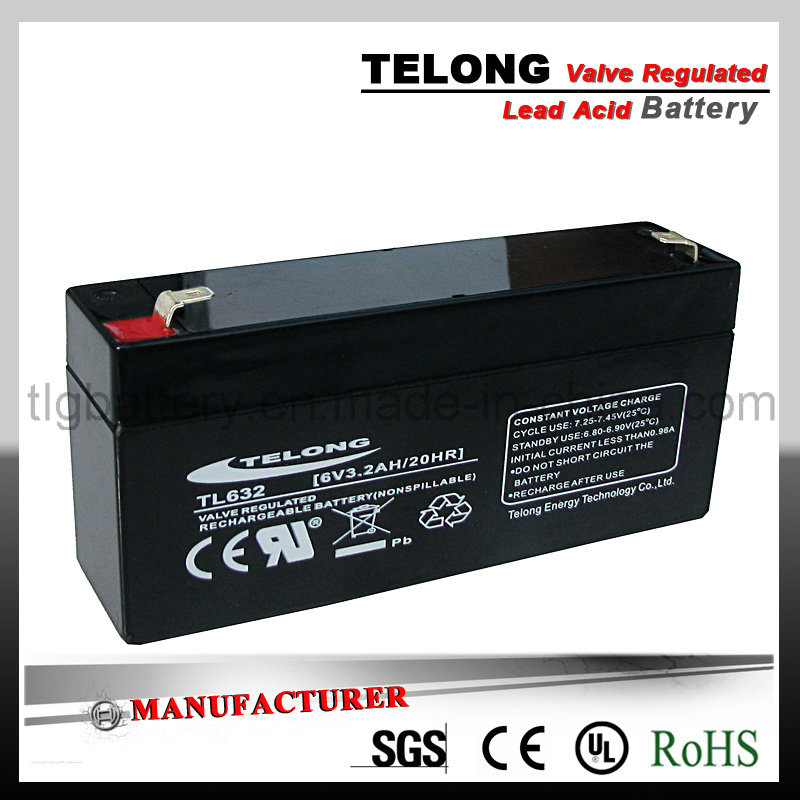

_____________________________________________TL632(6v3.2ah)_______________________________________________
BATTERY CONSTRUCTION
| Component | Positive Plate | Negative Plate | Container |
| Raw material | Lead dioxide | lead | ABS |
| Cover | Safety valve | Terminal | Separator | Electrolyte |
| ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
SPECIFICATION
| Nominal Voltage | 6V |
| Rated capacity (20 hour rate) | 3.2Ah |
| Dimension | Length | 134mm (5.23 inches) |
| Width | 34mm (1.33 inches) |
| Height | 60mm (2.34inches) |
| Weight Approx | 0.62Kg(1.37Ibs) |
_________________________________________________FEATURE____________________________________________________
Maintenance-free lead acid battery
Small internal resistance, high output power
Low self-discharge rate, less than 3.5% per month
Complete sealed (no liquid leakage, no acid gas spill)
Can be used any direction, easy to transport
Good corrosion resistant performance and deep discharge recovery performance
_______________________________________________APPLICATIONG_________________________________________________
Toys
LED Light
Alarm System
Communication equipment
Emergency lighting systems
Electric power systems
Fire and security systems
Telecommunication systems
____________________________________________CHARACTERISTICS______________________________________________
Capacity
25 C (77 F ) | 3.2Ah | 20hr (0.165A) |
| 3.0Ah | 10hr (0.30A) |
| 1.98Ah | 1hr (1.98A) |
| Internal | Full Charged Battery | Appro× |
| Resistance | At 25 C (77 F ) | 22mΩ |
| Capacity affected by Temperature(10hour rate) | 40 C (104 F ) | 102% |
| 25 C (77 F ) | 100% |
| 0 C (32 F ) | 85% |
| (-15 C )5 F | 65% |
| Self-Discharge | Capacity after 3 month storage | 91% |
| at 25 C (77 F ) | Capacity after 6 month storage | 82% |
| Capacity after 12month storage | 64% |
Charge
(constant Voltage) | Cycle | Voltage 7.2~7.35V |
| Float | Voltage 6.75~6.9V |
_________________________________________________CATALOGE________________________________________________
| No. | MOdel No. | Rated Voltage
(V) | Rated Capacity
(AH) | Form Factor(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL430 | 4 | 3 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 2 | TL435 | 4 | 3.5 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 3 | TL445 | 4 | 4.5 | 47 | 47 | 100 | F1/F2 | 0.5 |
| 4 | TL460 | 4 | 6 | 47 | 47 | 100 | F1/F2 | 0.55 |
| 5 | TL612 | 6 | 1.2 | 98 | 25 | 56 | F1 | 0.3 |
| 6 | TL623 | 6 | 2.3 | 43 | 37 | 76 | F1 | 0.33 |
| 7 | TL628 | 6 | 2.8 | 66 | 33 | 100 | T1 | 0.55 |
| 8 | TL632 | 6 | 3.2 | 134 | 34 | 67 | T1 | 0.65 |
| 9 | TL630 | 6 | 3 | 70 | 47 | 100 | T1 | 0.63 |
| 10 | TL635 | 6 | 3.5 | 70 | 47 | 100 | T1 | 0.67 |
| 11 | TL640 | 6 | 4 | 70 | 47 | 100 | T1/T8 | 0.67 |
| 12 | TL645 | 6 | 4.5 | 70 | 47 | 100 | F1 | 0.73 |
| 13 | TL650 | 6 | 5 | 70 | 47 | 100 | F1/F2 | 0.73 |
| 14 | TL660 | 6 | 6 | 70 | 47 | 100 | F1/F2 | 0.82 |
| 15 | TL670 | 6 | 7 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 16 | TL680 | 6 | 8 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 17 | TL6100 | 6 | 10 | 151 | 50 | 100 | F1/F2 | 1.55 |
| 18 | TL6120 | 6 | 12 | 151 | 50 | 100 | F1/F2 | 1.65 |
