| Prod Model: |
SLT-57BG02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
36V |
| No Load Speed: |
4500 R/Min |
| Rated Torque: |
110nm |
| Rated Speed: |
3300r/Min |
| Environment Conditions: |
-10-40 |
| Magnet Material: |
Bonded NdFeB |
| Insulation Class: |
B |
| Stall Torque: |
350mnm |
| Weight: |
1kg |
| Lentgh: |
20mm |
| Application: |
Medical Equpiments |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brushless |
| Certification: |
CE |
| Brand: |
Slt |
Product Description
Product description
Model:SLT57BG Voltage:24V
No Load Speed:5000rpm Rated torque:0.063mNm
Rated Speed:4000rpm Rated Current:1.65A
Stall torque:0.189mNm Stall current:4.4A

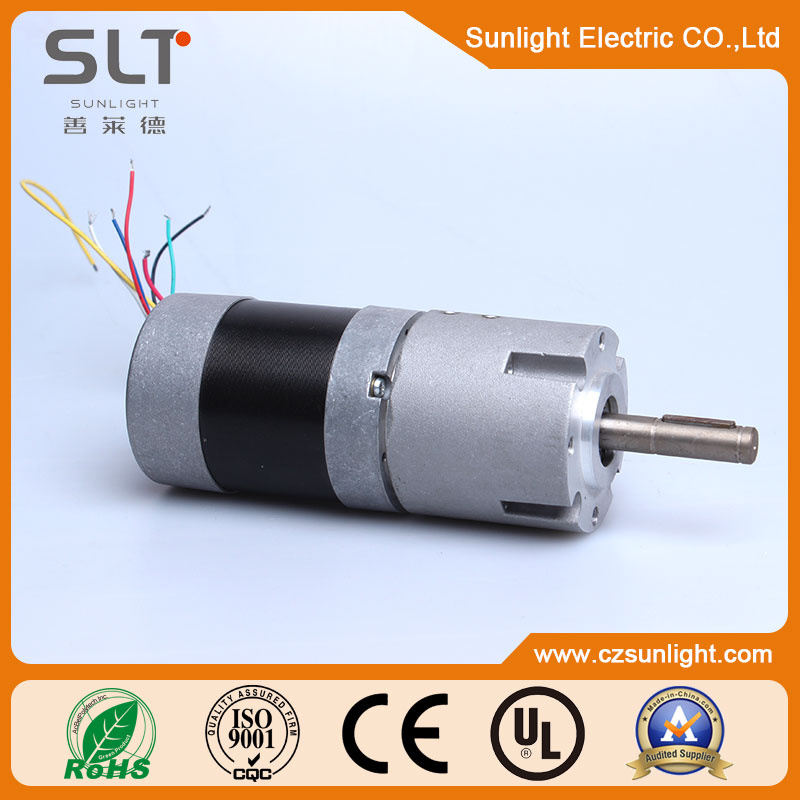

The specification of 6V-36V BLDC Electric Brushless DC Geared Motor for Tools
| SLT57BG02-Brushless Motor |
| Model | SLT57BG02 |
| output shaft speed | RPM | 37 |
| Ratio | i | 120 |
| Motor Parameter |
| Voltage | V | 36 |
| No load speed | rpm | 4500 |
| Rated torque | Nm | 110 |
| Rated speed | rpm | 3300 |
| Rated current | A | 1.8 |
| Stall torque | mNm | 350 |
| Stall current | A | 4.8 |
| Rotor inertia | Kgmm² | 7.5 |
| Black-EMFconstant | V/krpm | 5.3 |
| Torque Constant | Nm/A | 72 |
| Resistance(20ºC) | ohm | 3.2 |
| Weight | Kg | 1 |
| Rotor:La | mm | 20 |
Advantages of 6V-36V BLDC Electric Brushless DC Geared Motor for Tools
A:Quality in sure.
Quality is our culture!
Our company has passed ISO9001 and CCC International Quality Authentication System,
so we can totally guarantee the excellent quality for you
B.Price is competitive.
Our Company has competitive raw materials,in the consequence we also have competitive
price in the market.
C.Service is excellent.
With solid researching and developing strength,well-trained employees and strict inner management,our service is humanized and considerate.
D.Delivery on time.
Honesty is our Principle
Our company has formed our own distinctive enterprise manner-researching intensively,producing professionally and serving devotedly,so we will keep highly
appointment with all our customers.
Application
A.Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner)
Certifications
We have gotten UL approval in American, CE and ROHS approval in European, ISO 9000 certificate.
As a promising company that has long history,our company has established well relationship with many
renowned manufacturers and distributors. We expect to cooperate with more enterprise and believe that
our high quality products and good service well bring win-win benefit between us.
FAQ
(1)Q:What kind of motors can you provide?
A:For now,we mainly provide DC Brushed Motor, DC Brushless motor, Gear Motor, Fan Motor,
BLDC Motor, Synchronous Motor, Stepping Motor etc.
(2)Q:Can you make the motor customized?
A:Of course, we can and welcome that.
(3)Q:What is the shipping method?
A:For the samples and small orders, we recommend the Express, like DHL, FedEx and TNT.
It is very fast, safety and relatively cheap; We go with FOB/CIF/CFR terms if shipment by sea and air.
(4)Q:What information do you need if we need a recommendation on the motor?
A:We need to know the basic specification of the motor:Dimension, Application, Voltage, Speed
and Torque. If you can provide us the samples, it will be the best.
(5)Q:Can I get some samples
A: Yes, welcome to take samples to test our quality and service.
Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
Personal Information
Changzhou sunlight Co., Ltd
Contact Person: Ariana Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
What's up:86-13407564218
Mobile: 86-13407564218
Website: www.czsunlight.com or www.sunlightmotor.com
Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.
There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.
The main products are DC motor, brushless DC motor, linear actuator and DC fan.
At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.
Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.
We welcome all the global companies to visit our factory and negotiate with us!
Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"
We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.
Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on
The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;
The main linear actuator's series are: ST01, PT01, YT01 and so on;
The main fan's series are: 16inch, 12inch, and so on
So that, If you give us a chance, Sunlight Motor will not let you disappoint.
