| Prod Model: |
TL645 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
70(L)*47(W)*100(H)Mm |
| Approx Weight: |
0.70kg |
| Color: |
Black/ Grey |
| Terminal: |
F1 |
| Container: |
ABS |
| Charge (Cycle Use): |
7.2~7.5V |
| Charge (Float Use): |
6.8-6.9V |
| Designed Life: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System, Spotlight,Alarm System |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

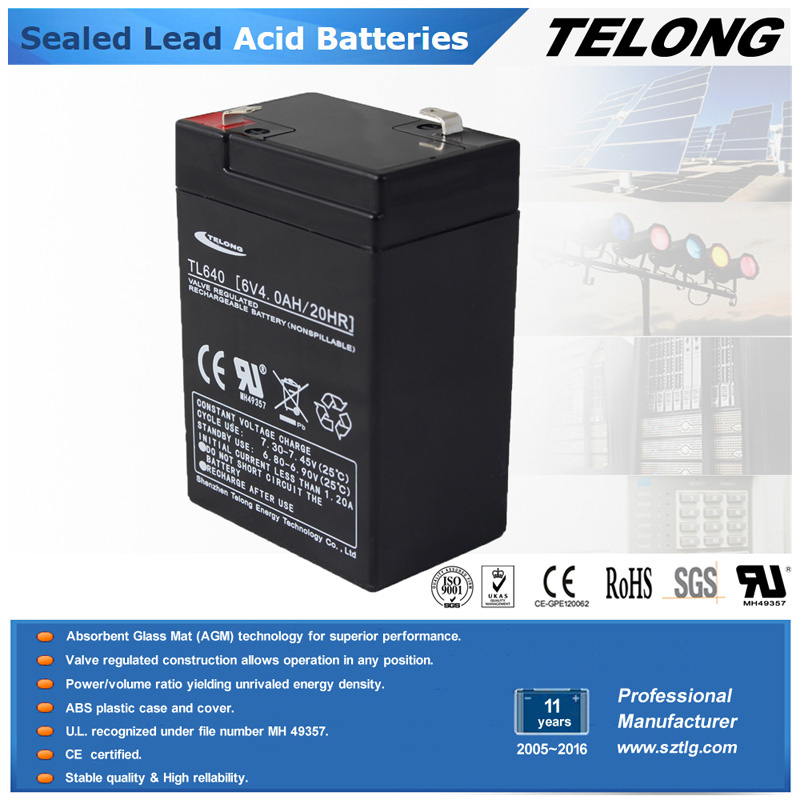

TELONG 6V4.5Ah Battery wiht UL CE MSDS certification is a valve regulated maintenance free lead acid battery. It's widely used in solar home light system, camp light
sportlight, rechargeable fan and so on.
SPECIFICATION
| Nominal Voltage | 6V |
| Rated capacity (20 hour rate) | 4.5 Ah |
| Dimension | Length | 74mm (2.89inches) |
| Width | 47mm (1.83 inches) |
| Height | 100mm (3.90inches) |
| Weight Approx | 0.70Kg(1.54Ibs) |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS
Capacity
25'C (77'C) | 20 hour rate(0.225A ) | 4.5AH |
| 10 hour rate(0.420A ) | 4.2AH |
| 5hour rate(0.760A ) | 3.8AH |
| 1 hour rate(2.900A ) | 2.9AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 25milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 1.13A |
| Voltage 7.2~7.5 V |
| Voltage 6.7~6.9V |
APPLICATIONS
Electric Toy / Power tool / Electronic scale
Fire & security systems / Alarm Systems
Solar home light system / camp light / rechargeable fan
Emergency Lighting Systems / Uninterruptible power supplies Electronic test equipment / Telecommunication systems
Other standby or primary power supplies.
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 15~25 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE
|
