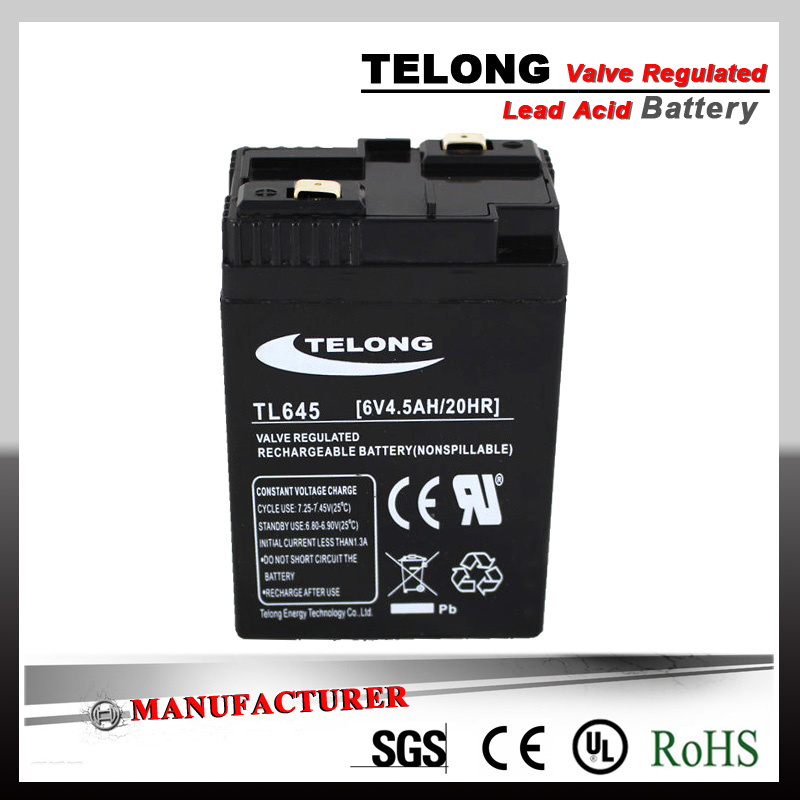

6V 4.5ah Sealed Lead Acid Battery

Prod Model:	TL645
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	70(L)*47(W)*100(H)Mm
Approx Weight:	0.74kg
Color:	Black/ Grey
Terminal:	F1
Container:	ABS
Charge (Cycle Use):	7.25-7.45V
Charge (Float Use):	6.8-6.9V
Designed Life:	3 Years
Warranty:	1 Year
Type:	Lead-Acid Batteries
Usage:	Electric Tool, Mini Solar System
Nominal Voltage:	6V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

TELONG 6V 4.5ah Battery:  1). Sealed / Maintenance Free / Rechargeable   2).  Warranty: 1 Year , changed with quality problem.
3). OEM / ODM    4). CE UL RoHS approvial     5). Used for: Children car  Solar home kit    Emergency Lighting System.....


QUALITY ASSURANCE

1).Warranty period of one years: the date of the battery from the factory within 12 months, where the Company or the
authority of the professional testing organization determine the quality of failure are battery manufacturers, at designated
locations to give a free replacement battery with the specifications of the new; replace the battery when I While failure
to recover the battery.

2).The identification of large current discharge: new arrival in the battery, 25 ± 1 ºC temperature, fully charged battery
to the model of large current 3 times the rated discharge capacity 7 min, the battery voltage drops below 1.6V / cell,
determined to be unqualified.

3).Determine the capacity of the exception: the new battery installed in the 25 ± 2 ºC after fully charged capacity test,
in three cycles, the 20hour rate capacity can not reach the rated capacity of 90%, After five cycles, 20 hours rate
capacity can not meet 100% of the rated capacity, determined to be ineligible

4).Standard: The Company entered into force in a clear customer contract requirements, contract requirements should be
the standard;if the customer no special requirements, refer to China national machinery Industrial Standard

5).Normal use and maintenance: by TELONG "Lead Acid battery Manual " Operation and Maintenance

6).Quality: The company "technology first, the tree class enterprise; continuous improvement, so the battery quality;
customer first, creating international brand " of quality in strict accordance with ISO9001: 2000 quality system
standards requirements, passion for customer service.


SPECIFICATION of 6V4.5Ah Sealed Lead Acid Battery

Nominal Voltage		6 V
Rated capacity (20 hour rate)		4.5 Ah
Dimension	Length	70mm (2.73 inches)
	Width	47mm (1.83inches)
	Height	100mm (3.901inches)
Weight Approx		0.74Kg(1.63Ibs)

FEATURE of 6V4.5Ah UPS Battery

1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and
    freedom from electrolyte maintenance or water adding.
2).Not restricted for air transport-complies
3).CE RoHS MSDS UL-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications. Maintenance-free operation.
7).Low self discharge. Long Life Design
8).Wide Operation Temperature Range
9).Available in flame retardant ABS material for the battery case



CHARACTERISTICS of Solar Power Battery

Capacity  25'C (77'C)				20 hour rate(0.225A )			4.5AH
				10 hour rate(0.419A )			4.19AH
				5 hour rate(0.770A )			3.85AH
				5 hour rate(1.15A )			3.45AH
				1 hour rate(2.83A  )			2.83 AH
Internal Resistance				Full charged Battery at 25  'C(77'F  )			25 milli-ohm
Capacity affected by Temp				40'C (104F)			102%
				25'C (77'F)			100%
				0'C (32'F)			85%
				(-15'C )5'F			65%
Self-Discharge				Capacity after 3 month storage			91%
25'C (77'F)				Capacity after 6 month storage			82%
				Capacity after 12 month storage			64%
Terminal				F1
Charge		Cycle		Initial Charging Current less than 1.35A
(Constant Voltage)				Voltage 7.25~7.45V
		Float		Voltage 6.80~6.90V

APPLICATIONS of 6V4.5Ah Maintenance Free Battery

UPS / Electric Tools / Power tool
Medical equipment /Emergency Lighting
Alarm system / Portable Light / Electronic Scale
Electric Power Supply /DC power Supply
Other standby or primary power supplies.

NO.	Model No.	Rated Voltage (V)	Rated Capacity (AH)	Form Factor(mm)			Terminal	Weight ±4%(Kg)
				L	W	H
				mm	mm	mm	Type	Kg
1	TL612	6	1.2	98	25	56	F1	0.3
2	TL623	6	2.3	43	37	76	F1	0.33
3	TL628	6	2.8	66	33	100	T1	0.55
4	TL632	6	3.2	134	34	67	T1	0.65
5	TL630	6	3	70	47	100	T1	0.63
6	TL635	6	3.5	70	47	100	T1	0.67
7	TL640	6	4	70	47	100	T1/T8	0.67
8	TL645	6	4.5	70	47	100	F1	0.73
9	TL650	6	5	70	47	100	F1/F2	0.73
10	TL660	6	6	70	47	100	F1/F2	0.82
11	TL670	6	7	151	34	100	F1/F2	1.16
12	TL680	6	8	151	34	100	F1/F2	1.16
13	TL6100	6	10	151	50	100	F1/F2	1.55
14	TL6120	6	12	151	50	100	F1/F2	1.65
