Name: 6V 5ah LED Light Battery SMF Battery
Brand: all-electronics-online.com
SKU: 707543205
Availability: InStock
Rating: 5 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR5-6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	7048101mm
Weight:	0.78kg
Color:	Black
Cell:	3
Separator:	AGM
Plate:	Flat Plate
Sealing:	Glue Sealing
Battery Case:	ABS
Terminal:	Lead
Safety:	Explosion-Proof
Type:	Lead-Acid Batteries
Usage:	Electric Power
Nominal Voltage:	6V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Product Description

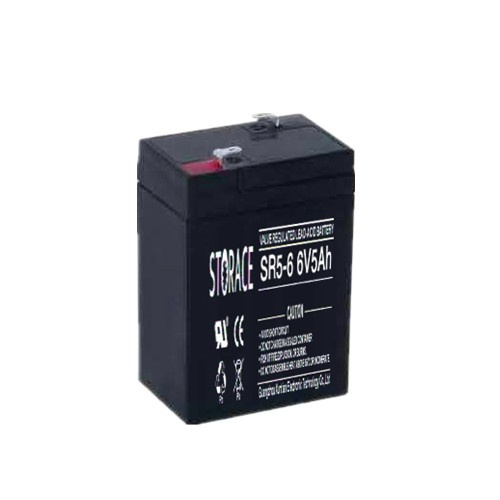

LED Light Battery SMF Battery 6V 5ah

Valve regulated lead acid series UPS batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.

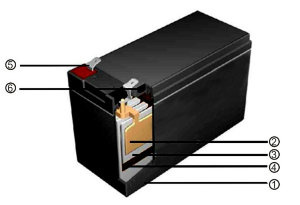

Battery Structure1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Postive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.

Characteristics
1. Excellent safety performance
2. Good dischargeing performance
3. Good stock-proof performanc
4. Good impact-proof performance
5. Good resistance to overdischarge
6. Good resistance to overcharge
7. Good resistance to high current

Data Sheet

Capacity 77° F(25º C)	20 hours rate(0.25A 5.25V)	5.0Ah
	10 hours rate(0.47A 5.25V)	4.7Ah
	5 hours rate(0.86A 5.25V)	4.3Ah
	1 hour rate(3.2A 4.8V)	3.2Ah
Internal Resistance	Full charged battery 77° F(25º C): 20mΩ

Capacity affected by Temperature (20 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 75A(5S)
Charge (Constant Voltage)	Float: 6.8 to 6.9V/77° F/(25º C)
	Cycle: 7.25 to 7.45V/77° F/(25º C)
	Max Current: 1.25A
