| Prod Model: |
TL6120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
151*50*95mm (L W H) |
| Weight: |
1.7kg (3.75lb) |
| Color: |
Black / White / Grey |
| Number Of Cell: |
3 |
| Cycle Use: |
7.25~7.45V |
| Standby Use: |
6.8~6.9V |
| Designed Life: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Telecommunication Equipment Medical Equipment |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
______________________________________________COMPANGY______________________________________________
Telong Energy Technology
Co.,Ltd
ABOUT US:
Shenzhen Telong Energy Technology Co.,LTD was founded in 2005, Specialized in
researching,developing,producing and sales of lead acid battery, lithium battery and
Gel battery. Its worldwide sales network already covers more than 100 countries and
regions, and has a good cooperation partnership with several excellent operators.
PRODUCTS:
General AGM Lead Acid Battery (2v, 4v, 6v, 12v, 24v)
Deep Cycle Service AGM Battery (6v, 12v)
Front Access Terminal AGM Battery (12v)
GEL AGM Battery (2v, 12v)
OPzV,OPzS Tubular Gel Battery (2v, 12v)
Automotive batteries, Motorcycle batteries, Golf car batteries,etc.
____________________________________________TL6120(6v12ah)_____________________________________________
BATTERY CONSTRUCTION
| Component | Positive Plate | Negative Plate | Container |
| Raw material | Lead dioxide | lead | ABS |
| Cover | Safety valve | Terminal | Separator | Electrolyte |
| ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
SPECIFICATION
| Nominal Voltage | 6V |
| Rated capacity (20 hour rate) | 12Ah |
| Dimension | Length | 150mm (5.89 inches) |
| Width | 50mm (1.95inches) |
| Height | 95mm (3.71inches) |
| Weight Approx | 1.7Kg(3.75Ibs) |
________________________________________________FEATURE__________________________________________________

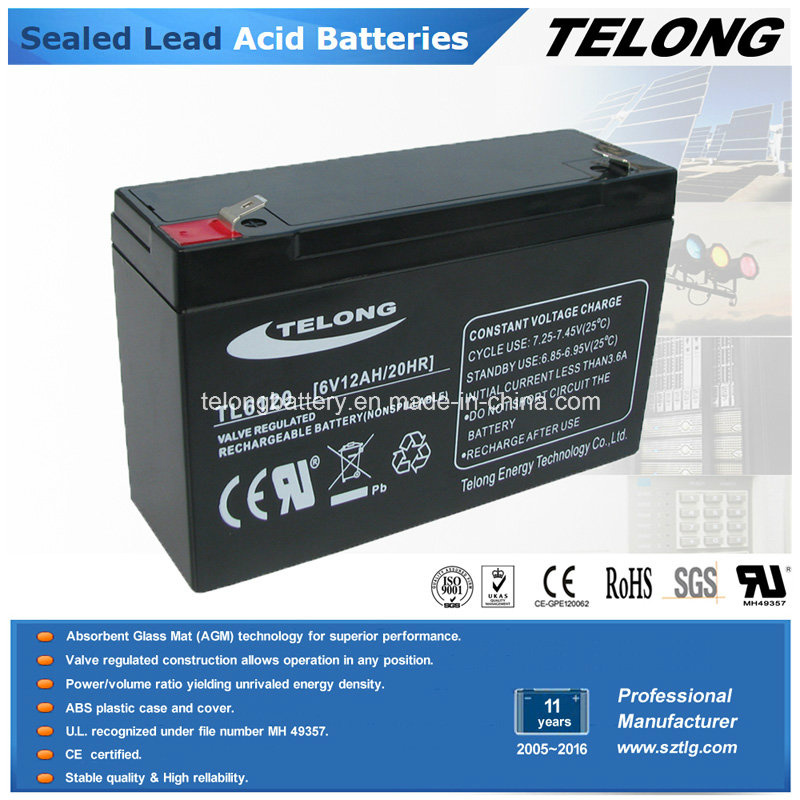

TELONG 6 V12Ah valve regulated sealed lead acid batteries are
Maintenance free, rugged and economical.
The TL6120 uses a state of the art,
Heavy-duty, Lead-alloy grid that provides exceptional performance
And service life in both float and cyclic applications.
* Absorbent Glass Mat (AGM) technology for superior performance
* Valve regulated, spill proof construction allows safe operation in any
Position
* High energy density
* No Spills
* No leaks
* No water to check
* Longest life-cycle product on the market
___________________________________________CHARACTERISTICS___________________________________________
| Capacity | 20 hour rate(0.6A ) | 12.0AH |
| 25'C (77'C) | 10 hour rate(1.10A ) | 11.0AH |
| 1 hour rate(7.20A ) | 7.2AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 13.5 milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
| Self-Discharge | Capacity after 3 month storage | 91% |
| 25'C (77'F) | Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | F1 |
| Charge | Cycle | Initial Charging Current less than 4.8A |
| (Constant Voltage) | Voltage 7.25~7.45V |
| Float | Voltage 6.8~6.9V |
____________________________________________APPLICATIONS____________________________________________
UPS
Emergency Lighting
Alarm system
Electric Power Supply
Communication Power Supply
DC power Supply
Other standby or primary power supplies.
________________________________________________CATALOG_____________________________________________
| No. | Model No. | Rated Voltage
(V) | Rated Capacity
(AH) | Dimension(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL612 | 6 | 1.2 | 98 | 25 | 56 | F1 | 0.3 |
| 2 | TL623 | 6 | 2.3 | 43 | 37 | 76 | F1 | 0.33 |
| 3 | TL628 | 6 | 2.8 | 66 | 33 | 100 | T1 | 0.55 |
| 4 | TL632 | 6 | 3.2 | 134 | 34 | 67 | T1 | 0.65 |
| 5 | TL630 | 6 | 3 | 70 | 47 | 100 | T1 | 0.63 |
| 6 | TL635 | 6 | 3.5 | 70 | 47 | 100 | T1 | 0.67 |
| 7 | TL640 | 6 | 4 | 70 | 47 | 100 | T1/T8 | 0.67 |
| 8 | TL645 | 6 | 4.5 | 70 | 47 | 100 | F1 | 0.73 |
| 9 | TL650 | 6 | 5 | 70 | 47 | 100 | F1/F2 | 0.73 |
| 10 | TL660 | 6 | 6 | 70 | 47 | 100 | F1/F2 | 0.82 |
| 11 | TL670 | 6 | 7 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 12 | TL680 | 6 | 8 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 13 | TL6100 | 6 | 10 | 151 | 50 | 100 | F1/F2 | 1.55 |
| 14 | TL6120 | 6 | 12 | 151 | 50 | 100 | F1/F2 | 1.65 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
