6V14ah Solar Battery

Prod Model:	6V14AH/20HR(3FM14)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black
Terminal:	F2+F1
Key Words:	Solar Battery
Size:	108*71*140(Total Height: 140) mm
Certificate:	Ce/UL/ISO9001/ISO14001/Ohsas18001
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	6V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

LONGWAY  solar  battery 6V14ah

LONGWAY® Standard battery is design for a general purpose by KaiYing Power.
3FM14 is a general purpose battery up to 5 years in float service ormore than 260
Cycles at 100% discharge in cycle service. As with all LONGWAY® Batteries, all
Are rechargeable highly efficient, leak proof and maintenance free.

1)Detail description

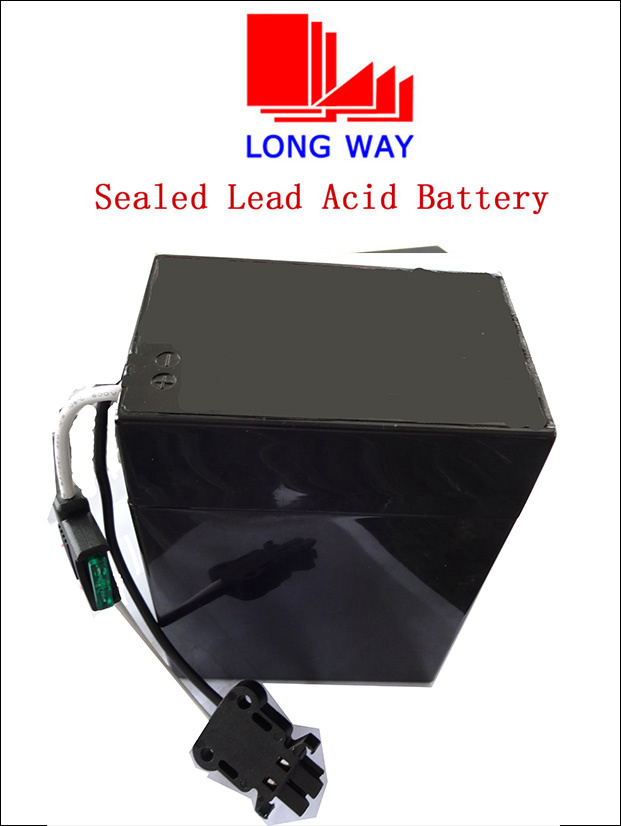

Model: 3FM14 Sealed Rechargeable Lead-Acid Battery(6V14AH/20HR)
Trademark: Longway
Size: 108*71*140(Total height: 140) mm
Terminal: F2+F1-
Packing Qty: 10 PCS/CTN
13, 000 PCS/Container
Lead-time: 30days for one container

2)General Features
Ø Stable quality&high reliability
Ø Sealed construction
Ø Environmentally friendly
Ø Maintenance-free operation
Ø Low pressure venting system
Ø Heavy duty grid
Ø Low self discharge
Ø UL component recognition(MH46789)

3)Application
² Alarm systems, Cable television, communications equipment, control equipment,
² Computers, electronic cash registers, electric test equipment,
² Electric powered bicycle and wheel chair,
² Emergency lighting systems, fire&security, geophysical equipment,
² Marine equipment, medical equipment,
² Micro processor based office machines, portable cine&video lights,
² Power tools, solar powered systems,
² Telecommunications systems, television&video recorders, toys,
² Uninterruptible power supplies, vending machines;

For more information, please contact us and welcome you! !

Standby LONGWAY 6V Standard Series batteries
Battery Model	Nominal Voltage(V)	Nominal Capacity (AH)	Length		Width		Height		Total Height		Weight(5%)		Terminal
			In	mm	In	mm	In	mm	In	mm	Pound	Kg	Type	Position
3FM1.2	6	1.2	3.82	97	0.94	24	2.05	52	2.28	58	0.66	0.30	F1	C
3FM2.8	6	2.8	2.60	66	1.30	33	3.84	97.5	4.09	104	1.21	0.55	F1	A
3FM3.2	6	3.2	5.28	134	1.36	34.5	2.34	59.5	2.64	67	1.43	0.65	F1	C
3FM3.5	6	3.5	2.76	70	1.85	47	3.90	99	4.13	105	1.28	0.58	F1/F2	A
3FM4	6	4	2.76	70	1.85	47	3.90	99	4.13	105	1.52	0.69	F1/F2	A
3FM4.2	6	4.2	2.76	70	1.85	47	3.90	99	4.13	105	1.59	0.72	F1/F2	A
3FM4.5	6	4.5	2.76	70	1.85	47	3.90	99	4.13	105	1.65	0.75	F1/F2	A
3FM5	6	5	2.76	70	1.85	47	3.90	99	4.13	105	1.83	0.83	F1/F2	A
3FM5A	6	5	3.86	98	2.20	56	4.41	112	4.65	118	1.87	0.85	F1/F2	A
3FM5E	6	5	2.76	70	1.85	47	3.90	99	4.13	105	1.74	0.79	F1/F2	A
3FM5H	6	5	2.67	67.8	2.64	67	3.84	97.5	4.13	105	1.79	0.81	S/F1	---
3FM5.5	6	5.5	2.76	70	1.85	47	3.90	99	4.13	105	1.90	0.86	F1/F2	A
3FM5.5H	6	5.5	2.76	70	1.85	47	3.90	99	4.13	105	1.94	0.88	F1/F2	A
3FM6	6	6	3.35	85	1.89	48	3.94	100	4.17	106	2.20	1.00	F1	A
3FM6.5	6	6.5	3.86	98	2.20	56	4.41	112	4.65	118	2.65	1.20	F1/F2	A
3FM7	6	7	5.94	151	1.42	36	3.70	94	3.94	100	2.43	1.10	F1/F2	C
3FM8	6	8	3.86	98	2.20	56	4.65	118	4.65	118	3.09	1.40	F1/F2	B
3FM9	6	9	5.94	151	1.97	5	3.70	94	3.94	100	3.20	1.45	F1/F2	C
3FM10	6	10	5.94	151	1.97	50	3.70	94	3.94	100	3.31	1.50	F1/F2	C
3FM11	6	11	5.94	151	1.97	50	3.70	94	3.94	100	3.64	1.65	F1/F2	C
3FM12	6	12	5.94	151	1.97	50	3.70	94	3.94	100	3.64	1.65	F1/F2	C
3FM14	6	14	4.25	108	2.80	71	5.51	140	5.51	140	5.07	2.30	F2+F1-
3FM14T1	6	14	4.25	108	2.80	71	5.51	140	5.51	140	5.07	2.30	T1	/
3FM14T2	6	14	4.25	108	2.80	71	5.51	140	5.51	140	5.07	2.30	T2	/
3FM14A	6	14	4.25	108	2.80	71	5.51	140	5.51	140	4.63	2.10	F2+F1-	/
