| Prod Model: |
6V14ah |
| Operating Temperature: |
-20c~50c |
| Design Time: |
10-12 Years |
| Separator: |
AGM |
| Charge Voltage (Cycle): |
2.40~2.50V |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0 |
| Material Lead: |
#1 Lead Top Quality in China |
| Terminal: |
Nb or B |
| Color: |
Grey or Black |
| Self Discharge: |
Less Than 3% Per Month |
| Certificate: |
ISO, UL, Ce |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
6V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

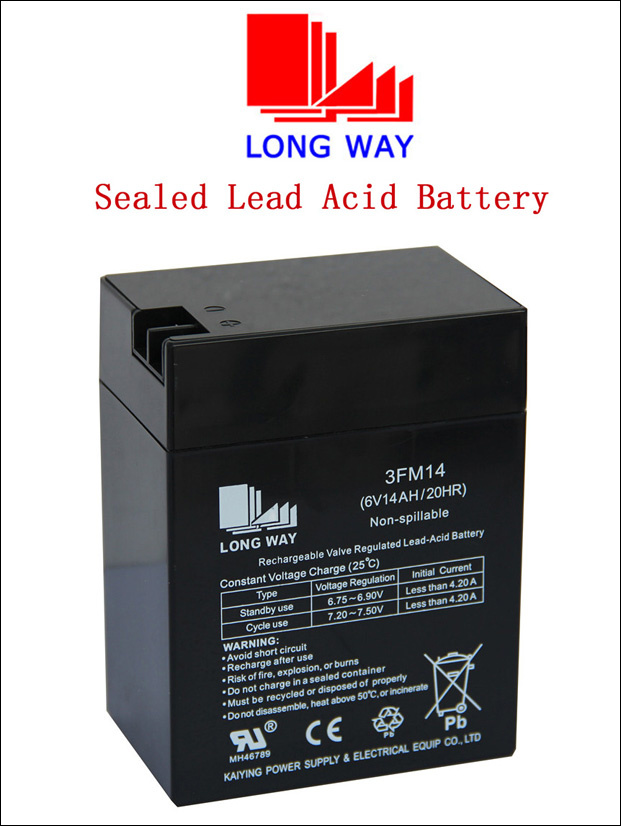

6V14ah storage fire and security battery
LONGWAY® Standard battery is design for a general purpose by KaiYing Power.
3FM14 is a general purpose battery up to 5 years in star service or more than 260
cycles at 100% discharge in cycle service. As with all LONGWAY® batteries, all are
rechargeable highly efficient, leak proof and maintenance free.
| Normal Voltage | 6V |
| Capacity | 14Ah@20Hr-rate to 1.75V per cell@25ºC |
| Weight | Approx. (2.27±3%)kg(2.21bs) |
| Maximum Discharge Current | 70A(5sec) |
| Internal Resistance | Approx. 12mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC |
| Nominal Operating Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 6.75~6.90VDC/unitAverage @25ºC |
| Maximum Charging Current | 4.2A |
| Equalization and Cycle Service | 7.2V~7.5VDC/unitAverage @ 25ºC |
| Self Discharge | LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using. |
| Terminal | F2(0.250)+ F1(0.187)- |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
| Dimensions | L108*W71*H140(TH140)mm |
LONGWAY battery used for AGM VRLA/SLA maintenance-free battery.6V - 1.3Ah to 12Ah used for emergency lighting and alarm lighting and sound application.12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.Construction· Component ......Raw material ·Sealant ........Epoxy Resin· Positive ........Lead dioxide ·Safety valve .....EPDR· Negative ........Lead ·Terminal ........Copper· Container ........ABS ·Separator ........Fiber glass· Cover ........ABS ·Electrolyte .......Sulfuric acid
Standard SeriesLONGWAY Standard series valve regulated lead acid batteries are designed with AGM (Absorbent Glass Mat) technology and for general application purpose. Such as UPS, telecom, and electrical utilities with 5 years design life, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS62904, Eurobat Guide. The battery container and cover are available both in V0 class flame retardant ABS or HBO ABS plastics. General FeaturesStable Quality & High ReliabilitySealed ConstructionEnvironmentally FriendlyMaintenance-Free OperationLow Pressure Venting SystemHeavy Duty GridLow Self DischargeUL Component Recognition(MH 46789) ApplicationsAlarm SystemsCable TelevisionCommunications EquipmentControl EquipmentComputersElectronic Cash RegistersElectric Test EquipmentElectric Powered Bicycle and Wheel chairEmergency lighting SystemsFire & SecurityGeophysical EquipmentMedical EquipmentMicro Processor Based Office MachinesPortable Cine & Video LightsPower ToolsSolar Powered SystemsTelecommunications SystemsTelevision & Video RecordersToysUninterrupted Power SuppliersVending MachinesIf get interest, just contact me freely. 6V14ah storage fire and security battery
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
