| Prod Model: |
TL623 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Normal Capacity: |
2.3ah |
| Hour Rate: |
20 |
| Size: |
66(L)*33(W)*98(H)Mm |
| Weight: |
0.50kg |
| Color: |
Black / White |
| Container Material: |
ABS |
| Charge Voltage (Cycle): |
7.25~7.45V |
| Charge Voltage (Float): |
6.8~6.9V |
| Designed Lifef: |
3-5 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Emergency Light , Toys , LED Light |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
6V |
Product Description

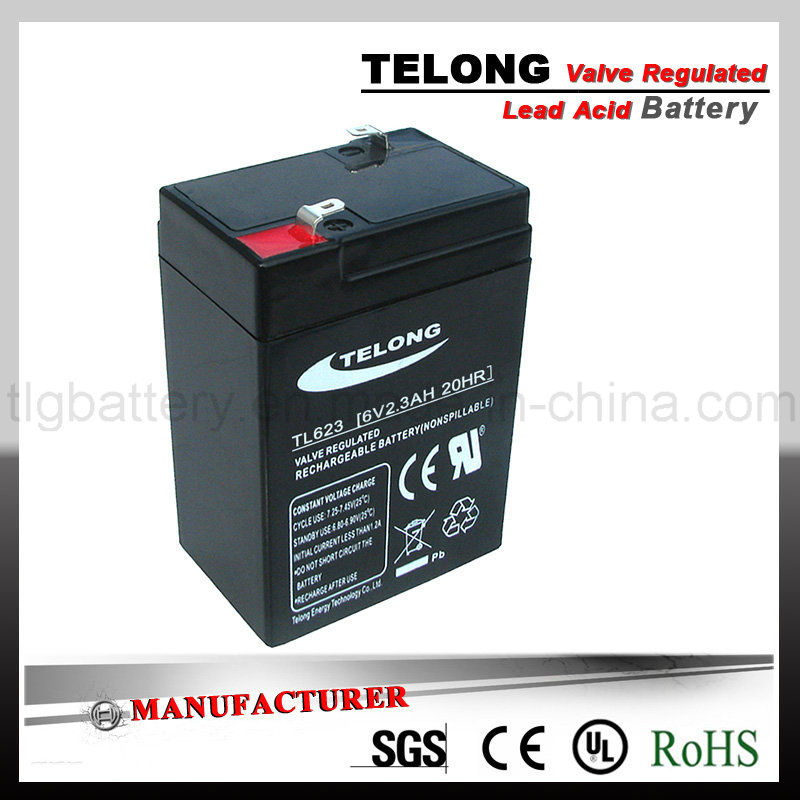

6V Rechargeable Battery-TELONG 6V2.3Ah-Lead Acid Battery for UPS, Solar Power System
BATTERY CONSTRUCTION
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS
Capacity
25'C (77'C) | 20 hour rate(0.0.115A ) | 2.3AH |
| 10 hour rate(0.512A ) | 1.96AH |
| 5hour rate(0.356A ) | 1.78AH |
| 3hour rate(0.563A ) | 1.69AH |
| 1 hour rate(1.380A ) | 1.38AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 40milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | F1 |
Charge
(Constant Voltage) | Initial Charging Current less than0.85 A |
| Voltage 7.25-7.45V |
| Voltage 6.8-6.9V |
APPLICATIONS
Control equipments
Emergency Light
Rechargeable Fan
Solar Light
Portable Light
Alarm systems
Power tools
Medical equipments
Electric toys
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 25-35 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE |
| 7 | The price of the battery is based on Lead Price of RMB12500-13000/ton. The above price
would be revised upwards or downwards byaround 2% with every increase or decrease
of RMB500/Ton in the lead price at SMM.(Shanghai Nonferrous Metal Market).Please visit
http://www.smm.cn for the latest price at SMM. |
