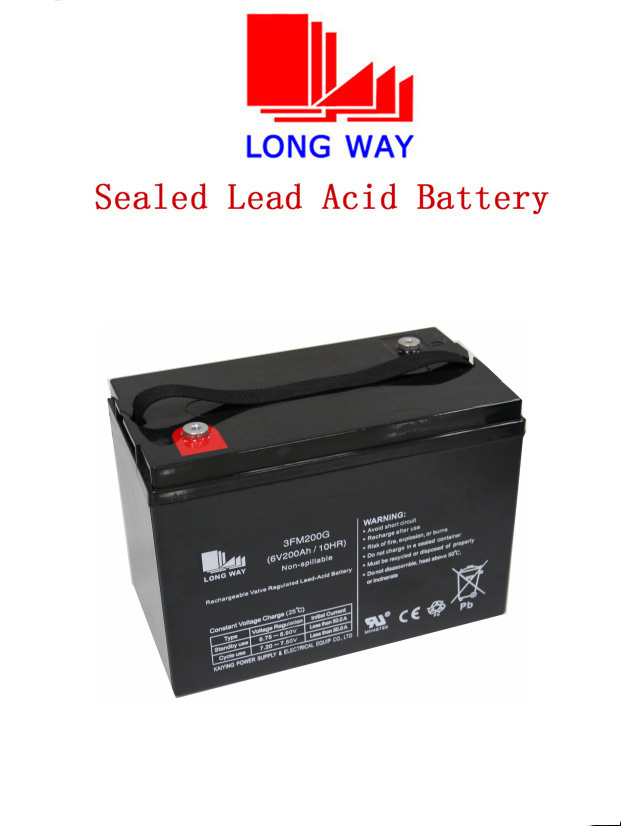

6V200ah Rechargeable Lead Acid Battery for Solar System
| Price: |
US $ 75/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
T/T |
| Prod Model: |
3FM200S (6V200Ah) |
| Operating Temperature: |
-20c~50c |
| Design Time: |
10-12 Years |
| Separator: |
AGM |
| Charge Voltage (Cycle): |
2.40~2.50V |
| Container Material: |
ABS(UL94-Hb) *Flammability Resistance of (UL94-V0) |
| Material Lead: |
#1 Lead Top Quality in China |
| Terminal: |
Nb or B |
| Color: |
Grey or Black |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar System |
| Nominal Voltage: |
6V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
6V200Ah rechargeable lead acid battery for solar systemLONGWAY® 3FM200Sis specially designed for green energy systems . 3FM200S
have a good deep cycle property, maintenance-free . It can be used for more than
350 cycles at 100% discharge in cycle service, up to 12 years in standby service.
| Normal Voltage | 6V |
| Capacity | 200Ah@10Hr-rate to 1.80V per cell@25ºC
230Ah@10Hr-rate to 1.90V per cell@25ºC |
| Weight | Approx.(29.5±3%)kg(63.90bs) |
| Maximum Discharge Current | 2000A(5sec) |
| Internal Resistance | Approx. 4.2mΩ full charged @25ºC |
| Operating Temperature Range | Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC |
| Nominal Operating Temperature Range | 25ºC±3ºC |
| Float Charging Voltage | 6.75~6.9VDC/unit Average @25ºC |
| Maximum Charging Current | 60A |
| Equalization and Cycle Service | 7.20V~7.50VDC/unit Average @ 25ºC |
| Self Discharge | LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using. |
| Terminal | F11/F21(0.250) |
| Container Material | ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request |
| Dimensions | L323*W178*H224(TH248)mm |
Storage SeriesLONGWAY Storage series batteries(S Type, "s"behind the model name stands for Storage energy application).by combining the newly develop namo gel electrolyte with high density paste. LONGWAY create offers high recharge efficiency at very low charge current which is very common at renewable energy systems. The acid stratification is highly depressed by adding of gel. This range battery is highly suitable for the energy storage for renewable energy such as PV and wind turbine power systems.
General Features
12 years design life at floating conditions
Long life expectancy of 5 years at renewable energy system
Wide temperature range from -20 to 60C
Nano gel electrolyte eliminate the acid stratification and prolong cycle life
Round trip efficiency as high as 85%
Thick positive flat design with high Tin Low Ca alloy and high density paste
Low self-discharge rate and long shelf life (1 year at 25C)
Excellent deep discharge recovery capacity
Applications
Photovoltaic system
Hybrid power system
Renewable energy system
Power storage for rural area
Telecom base station
If get interest, just contact me freely.
6V200Ah rechargeable lead acid battery for solar system
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
