| Prod Model: |
TL632 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Normal Capacity: |
3.2ah |
| Hour Rate: |
20 |
| Size: |
70(L)*47(W)*100(H)Mm |
| Weight: |
0.60kg |
| Color: |
Black / White |
| Container Material: |
ABS |
| Charge Voltage (Cycle): |
7.25~7.45V |
| Charge Voltage (Float): |
6.8~6.9V |
| Designed Lifef: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Emergency Light , Toys , Power Tools |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
6V |
Product Description

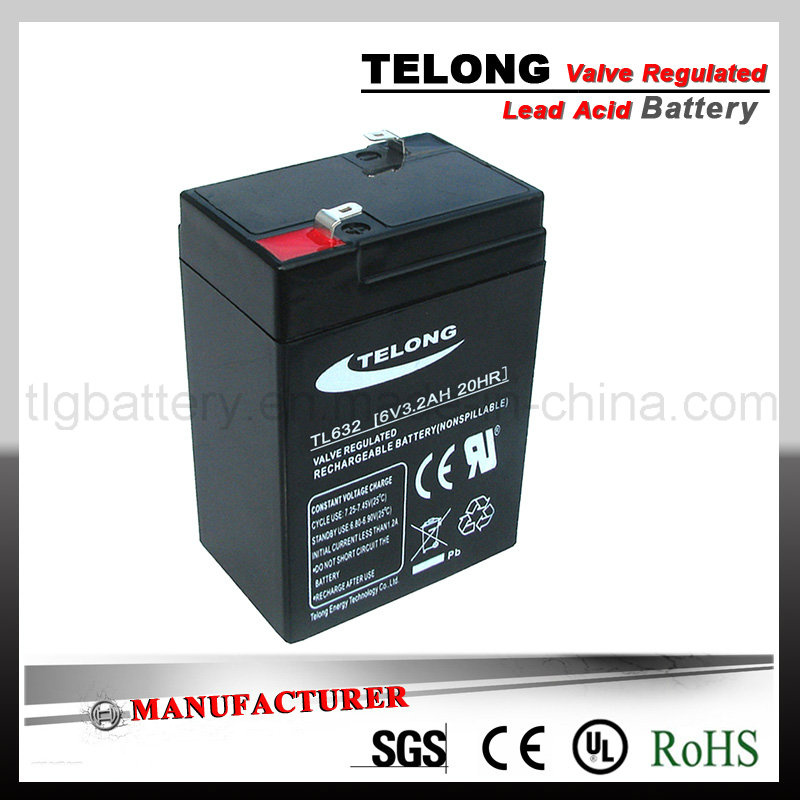

TELONG 6V3.2Ah rechargeable valve regulated lead acid battery is a maintenance-free storage battery. It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. The battery is sold to the customers from all over the world and has received good reputation from our partners.
BATTERY CONSTRUCTION of 6V3.2ah Sealed Lead Acid Battery
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
SPECIFICATION of 6V3.2ah Rechargeable Battery
| Nominal Voltage | 6V |
| Rated capacity (20 hour rate) | 3.2 Ah |
| Dimension | Length | 70mm (2.73 inches) |
| Width | 47mm (1.83 inches) |
| Height | 100mm (3.9inches) |
| Weight Approx | 0.60Kg(1.32Ibs) |
FEATURE of 6V3.2ah Power Battery
Sealed/Maintenance-Free
As sealed maintenance-free battery, the valve regulated spill proof construction allows trouble-free safe operation in any position. There is no need to add electrolyte, as gases generated during the charge phase are recombined in a unique "oxygen cycle".
Deep Discharge Recovery
Special separators, advanced plate composition and a carefully balanced electrolyte system ensure that the battery has the ability to recover from excessively deep discharge. Because of self discharge, the rechargeable battery may be stored for up to 6 months at 25'C (77'F) and then a freshening charging is required.
Low Pressure Valve Regulators
All batteries feature a series of low pressure one-way relief valves. These valves safely release any excessive accumulation of gas inside the battery and then reseal.
High Discharge Rate
Low internal resistance allows discharge currents of up to ten times the rated capacity of the battery.
Wide Operating Temperature Range
Batteries may be discharged over a temperature range of -40° C to +60° C (-40° F to + 140° F) and charged at temperatures ranging from -20° C to +50° C (-4° F to +122° F).
Rugged Construction
The high impact resistant battery case is made of nonconductive ABS plastic. The case materials impart great resistance to shock, vibration, chemicals and heat. Flame Retardant (FR) battery cases and lids are available where the end application dictates.
Long Service Life
Have a design life of up to five years in standby applications. In cyclical applications up to 1, 000 charge/discharge cycles can be expected depending on average depth of discharge.
CHARACTERISTICS of 6V3.2ah Maintenance Free Battery
Capacity
25'C (77'C) | 20 hour rate(0.16A ) | 3.2AH |
| 10 hour rate(0.30A ) | 3.0AH |
| 5hour rate(0.56A ) | 2.8AH |
| 1 hour rate(1.98A ) | 1.98AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 22milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | T1 |
Charge
(Constant Voltage) | Initial Charging Current less than 1.32 A |
| Voltage 7.25-7.45V |
| Voltage 6.8-6.9V |
APPLICATIONS of 6V3.2ah Valve Regulated Battery
Solar home kite / Control equipments
Emergency Light / Solar Light
Portable Lights / Alarm systems
Power tools / Electric toys
Medical equipments / Communication Equipment
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
No. | Model No. | Rated Voltage
(V) | Rated Capacity
(AH) | Form Factor(mm) | terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL430 | 4 | 3 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 2 | TL435 | 4 | 3.5 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 3 | TL445 | 4 | 4.5 | 47 | 47 | 100 | F1/F2 | 0.5 |
| 4 | TL460 | 4 | 6 | 47 | 47 | 100 | F1/F2 | 0.55 |
| 5 | TL612 | 6 | 1.2 | 98 | 25 | 56 | F1 | 0.3 |
| 6 | TL623 | 6 | 2.3 | 66 | 33 | 98 | F1 | 0.50 |
| 7 | TL628 | 6 | 2.8 | 66 | 33 | 100 | T1 | 0.55 |
| 8 | TL632A | 6 | 3.2 | 134 | 34 | 67 | T1 | 0.65 |
| 9 | TL630 | 6 | 3 | 70 | 47 | 100 | T1 | 0.63 |
| 10 | TL635 | 6 | 3.5 | 70 | 47 | 100 | T1 | 0.67 |
| 11 | TL640 | 6 | 4 | 70 | 47 | 100 | T1/T8 | 0.67 |
| 12 | TL645 | 6 | 4.5 | 70 | 47 | 100 | F1 | 0.73 |
| 13 | TL650 | 6 | 5 | 70 | 47 | 100 | F1/F2 | 0.73 |
| 14 | TL660 | 6 | 6 | 70 | 47 | 100 | F1/F2 | 0.82 |
| 15 | TL670 | 6 | 7 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 16 | TL680 | 6 | 8 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 17 | TL6100 | 6 | 10 | 151 | 50 | 100 | F1/F2 | 1.55 |
| 18 | TL6120 | 6 | 12 | 151 | 50 | 100 | F1/F2 | 1.65 |
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet
Pcs/ctn: 24pcs/ctn
Ctn size: 38.1*22*13cm
GW/NW: 14.6kg/14.4kg |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 25-35 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE |
| 7 | The price of the battery is based on Lead Price of RMB12500-13000/ton. The above price
would be revised upwards or downwards byaround 2% with every increase or decrease
of RMB500/Ton in the lead price at SMM.(Shanghai Nonferrous Metal Market).Please visit
http://www.smm.cn for the latest price at SMM. |
