| Prod Model: |
TL630A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimenstions: |
70(L)*47(W)*100(H)Mm |
| Weight: |
0.59kg |
| Color: |
Black / White / Grey |
| Terminal: |
F1/F2 |
| Charge (Cycle Use): |
7.2-7.5V |
| Charge (Float Use): |
6.75-6.9V |
| Container Material: |
ABS |
| Designed Life: |
3-5 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Toys, Power Tools, Alarm System |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
6V |
Product Description

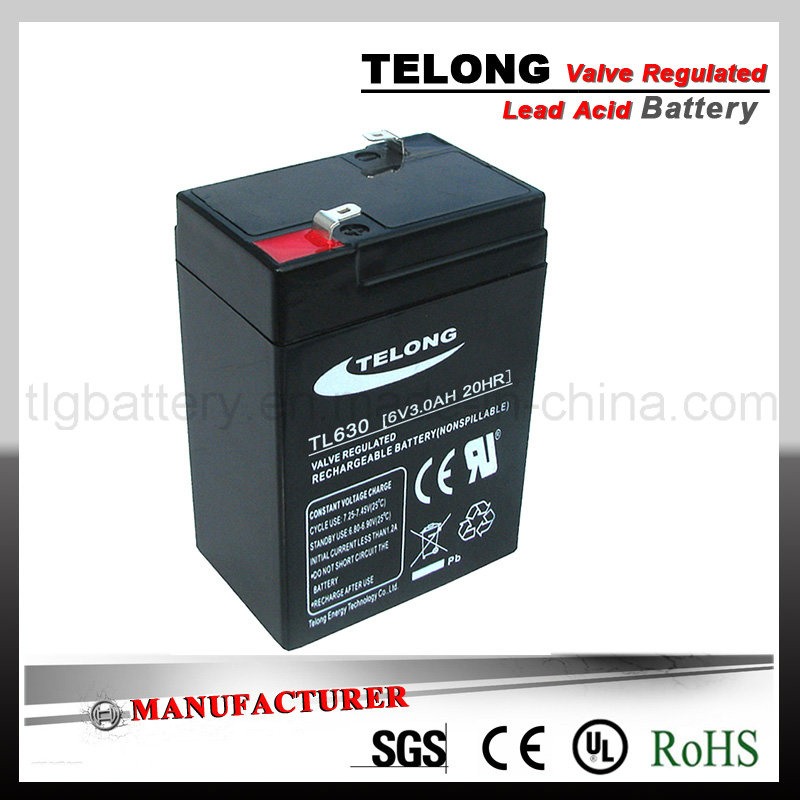

TELONG 6v3Ah rechargeable valve regulated lead acid battery is a maintenance-free storage battery. It 's widly used in
Toy , Power Tool, Alarm system and so on.
BATTERY CONSTRUCTION
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
FEATURE:
Sealed/Maintenance-Free
As sealed maintenance-free battery, the valve regulated spill proof construction allows trouble-free safe operation in any position. There is no need to add electrolyte, as gases generated during the charge phase are recombined in a unique "oxygen cycle".
Deep Discharge Recovery
Special separators, advanced plate composition and a carefully balanced electrolyte system ensure that the battery has the ability to recover from excessively deep discharge. Because of self discharge, the rechargeable battery may be stored for up to 6 months at 25'C (77'F) and then a freshening charging is required.
Low Pressure Valve Regulators
All batteries feature a series of low pressure one-way relief valves. These valves safely release any excessive accumulation of gas inside the battery and then reseal.
High Discharge Rate
Low internal resistance allows discharge currents of up to ten times the rated capacity of the battery.
Wide Operating Temperature Range
Batteries may be discharged over a temperature range of -40° C to +60° C (-40° F to + 140° F) and charged at temperatures ranging from -20° C to +50° C (-4° F to +122° F).
Rugged Construction
The high impact resistant battery case is made of nonconductive ABS plastic. The case materials impart great resistance to shock, vibration, chemicals and heat. Flame Retardant (FR) battery cases and lids are available where the end application dictates.
Long Service Life
Have a design life of up to five years in standby applications. In cyclical applications up to 1, 000 charge/discharge cycles can be expected depending on average depth of discharge.
CHARACTERISTICS:
Capacity
25'C (77'C) | 20 hour rate(0.150A ) | 3.00AH |
| 10 hour rate(0.279A ) | 2.79AH |
| 5hour rate(0.514A ) | 2.57AH |
| 1 hour rate(1.770A ) | 1.77AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 30milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 1.22 A |
| Voltage 14.4-15.0V |
| Voltage 13.5-13.8V |
APPLICATIONS
Solar home System
Electronic scales
Control equipments
Emergency Light
Solar Light
Portable Lights
Alarm systems
Electric toys
Medical equipments
Communication Equipment
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 15-25 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE
|
