| Prod Model: |
CS6-4.5 |
| Voltage: |
6V Rechargeable Battery |
| Capacity: |
4.5ah SLA Battery |
| Size: |
L*W*H=70*48*101mm Lead Acid Battery |
| Weight: |
0.75kg AGM Battery |
| Expected Cycle Time: |
5-8years Sealed Lead Acid Battery |
| Warranty: |
1 Years Maintenance Free Battery |
| Maximum Capacity: |
420ah SLA Battery/ Emergency Light Battery |
| Delivery Time: |
7 Days Lead Acid Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
6V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Sealed Lead Acid Battery/Emergency Lighting Batte |
Product Description

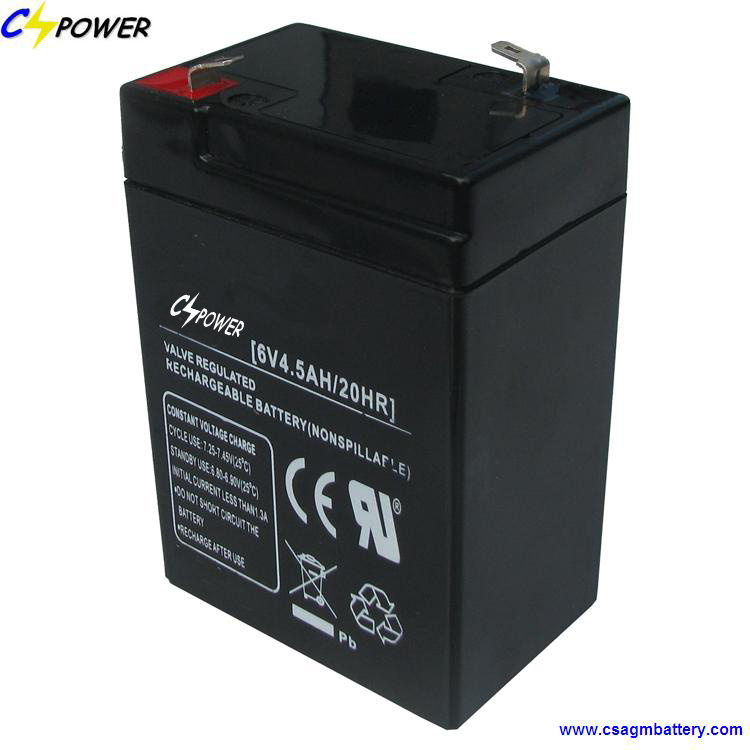

6V4.5ah Rechargeable Maintenance Free AGM SLA Battery for Electronic Scale
Characteristics
Model: CS6-4.5 Rechargeable SLA Battery,
Warranty: 1years Rechargeable battery/Maintenance free Battery/SLA Battery for Electronic Scale,
Life span: 5-8 years Sealed Lead Acid Battery for Emergency Light use,
Minimum Order1000pieces, VRLA Battery / Emergency Light Battery
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 5 - 7 days
Payment Terms: T/T, Western Union
Product Certificate: CE, ISO, IEC
CSPOWER Battery Tech Co.,Ltd supply our customers reliable products with high quality and competitive price, since we have our own Lead mine & smelter factory & plate factory & SLA battery assembling factory, the purity quotient of our lead is99.998%.
Advantages
1. Maintenance-free operation
2. Sealed free maintenance design, non spillable and water proof.
3. Longer usage life of cycle 10-12 years.
4. Extremely low discharge rate.
5. Extremely good discharge recovery ability
6. Gas compound efficiency higher than 99%;
7. Efficiently prevents heat loss.
8. Adapts well in different temperature and charge and discharge conditions.
It has a long cycle and trickle life even in cases of improper use.
Main Application
Emergency Light, Inverter, UPS, solar systems, control systems, power systems, wind energy systems, Streeting Light, telecommunication/communication systems & etc.
| Specifications & Characteristics Of 6V4.5ah 20hr rechargeable battery : |
| Nominal Voltage | 6V |
| Rated Capacity (20 hour rate) | 4.5AH |
| Size (Length*Width*Height*Total Height) | 70*48*101*106MM |
| Weight Approx | 0.75KG |
Capacity 25°C
(77°F) |
20 Hour Rate(0.225A) | 4.50AH |
| 5 Hour Rate(0.77A) | 3.85AH |
| 1 Hour Rate(2.70A) | 2.70AH |
1.5 Hour Discharge To 5.25 V |
1.8 A |
| Internal Resistance |
Full Charged Battery at 25°C(77°F) |
16mΩ |
Capacity Affected By Temperature
(10 Hour Rate) |
40°C(104°F) | 102% |
| 25°C(77°F) | 100% |
| 0°C(32°F) | 85% |
| -15°C(5°F) | 65% |
Self-Discharge at 25°C
(77°F) |
Capacity after 3 Month Storage | 91% |
| Capacity after 6 Month Storage | 82% |
| Capacity after 12 Month Storage | 64% |
| Terminal | T0,T1 |
Cycle Charge
(Constant Voltage) |
Initial Charging Current Less Than 1.8A |
| Voltage 7.20-7.50V Time 14-16 h |
Float Charge
(Constant Voltage) |
Voltage 6.75-6.90 V |
| Usage | UPS/Solar/Wind/Alarm/Security/Telecommunication/Emergency Lighting System, Electronic Instrument/ Fire-fighting Equipment/ Standby Power Supply/ etc. |
| Warranty | 1 Years |
| OEM Service | Accept |
| Color | Black, Grey |
| Container Material | UL94HB And UL 94V-0 ABS Plastic |
| Certificate |
CE; UL; ISO9001; ISO14001; OHSAS18001; TLC; IEC; Solar Product Certificate. |
Sealed/Maintenance-Free
The valve regulated spill proof construction allows trouble-free safe operation in any position. There is no need to add electrolyte, as gases generated during the charge phase are recombined in a unique "oxygen cycle".
Long Shelf Life
A low self-discharge rate, up to approximately 3% per month, may allow storage of fully charged batteries for up to a year, depending on storage temperatures, before charging becomes critical.
Deep Discharge Recovery
Special separators, advanced plate composition and a carefully balanced electrolyte system ensure that the battery has the ability to recover from excessively deep discharge.
Low Pressure Valve Regulators
All batteries feature a series of low pressure one-way relief valves. These valves safely release any excessive accumulation of gas inside the battery and then reseal.
High Discharge Rate
Low internal resistance allows discharge currents of up to ten times the rated capacity of the battery. Relatively small batteries may thus be specified in applications requiring high peak currents.
Wide Operating Temperature Range
Batteries may be discharged over a temperature range of -40°C to +60°C (-40°F to + 140°F) and charged at temperatures ranging from -20°C to +50°C (-4°F to +122°F).
Rugged Construction
The high impact resistant battery case is made of nonconductive ABS plastic. The case materials impart great resistance to shock, vibration, chemicals and heat. Flame Retardant (FR) battery cases and lids are available where the end application dictates.
Long Service Life
Have a design life of up to five years in standby applications. In cyclical applications up to 1,000 charge/discharge cycles can be expected depending on average depth of discharge.
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25ºC | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS6-2.8D | 6 | 2.8 | 0.53 | 1.17 | 67 | 2.64 | 34 | 1.34 | 100 | 3.64 | 103 | 4.06 | T1 |
| CS6-1.3D | 6 | 1.3 | 0.30 | 0.66 | 98 | 3.86 | 25 | 0.98 | 52 | 2.05 | 56 | 2.20 | T0 |
| CS6-3.3D | 6 | 3.3 | 0.63 | 1.39 | 134 | 5.28 | 34 | 1.34 | 61 | 2.40 | 66 | 2.60 | T0 |
| CS6-3.5D | 6 | 3.5 | 0.66 | 1.45 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-4D | 6 | 4 | 0.69 | 1.52 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-4.2D | 6 | 4.2 | 0.71 | 1.56 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-4.5D | 6 | 4.5 | 0.78 | 1.72 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-5D | 6 | 5 | 0.85 | 1.87 | 70 | 2.76 | 48 | 1.89 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS6-6D | 6 | 6 | 1.00 | 2.20 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-7D | 6 | 7 | 1.10 | 2.42 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-8D | 6 | 8 | 1.28 | 2.82 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-10D | 6 | 10 | 1.65 | 3.63 | 151 | 5.94 | 50 | 1.97 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-100D | 6 | 100 | 15.30 | 33.66 | 195 | 7.68 | 170 | 6.69 | 207 | 8.15 | 210 | 8.27 | T16 |
| CS6-14D | 6 | 14 | 1.96 | 4.31 | 151 | 5.94 | 50 | 1.97 | 94 | 3.70 | 100 | 3.94 | T1/T2 |
| CS6-12D | 6 | 12 | 1.81 | 3.98 | 151 | 5.94 | 50 | 1.97 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS6-35D | 6 | 35 | 10.20 | 22.44 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 180 | 7.09 | T16 |
| CS6-160D | 6 | 160 | 25.00 | 55.00 | 307 | 12.09 | 170 | 6.69 | 220 | 866 | 225 | 8.86 | T19 |
| CS6-180D | 6 | 180 | 29.00 | 63.80 | 260 | 10.24 | 180 | 7.09 | 246 | 9.69 | 250 | 9.84 | T19 |
| CS6-200D | 6 | 200 | 30.50 | 67.10 | 322 | 12.68 | 178 | 7.01 | 227 | 8.94 | 230 | 9.06 | T10 |
| CS6-220D | 6 | 220 | 31.50 | 69.30 | 322 | 12.68 | 178 | 7.01 | 226 | 8.90 | 251 | 9.88 | T19 |
| CS6-225D | 6 | 225 | 31.50 | 69.30 | 322 | 12.68 | 178 | 7.01 | 226 | 8.90 | 251 | 9.88 | T9 |
FAQ:
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.
Q2. How's the delivery time?
A. usually it will take about 3-5 days for sample and 10-15 days for bulk production
Q 3. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.
Q4. Would you accept to use our logo?
A. We would provide free OEM order depends on your quantity.
Q5. We want to know month capacity.
A. It depends on different model. Total capacity is upto 100000 pieces per month.
Emergency Lighting Battery
Sealed Lead Acid Battery
Solar Battery
Rechargeable Battery
6V4.5Ah battery
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
