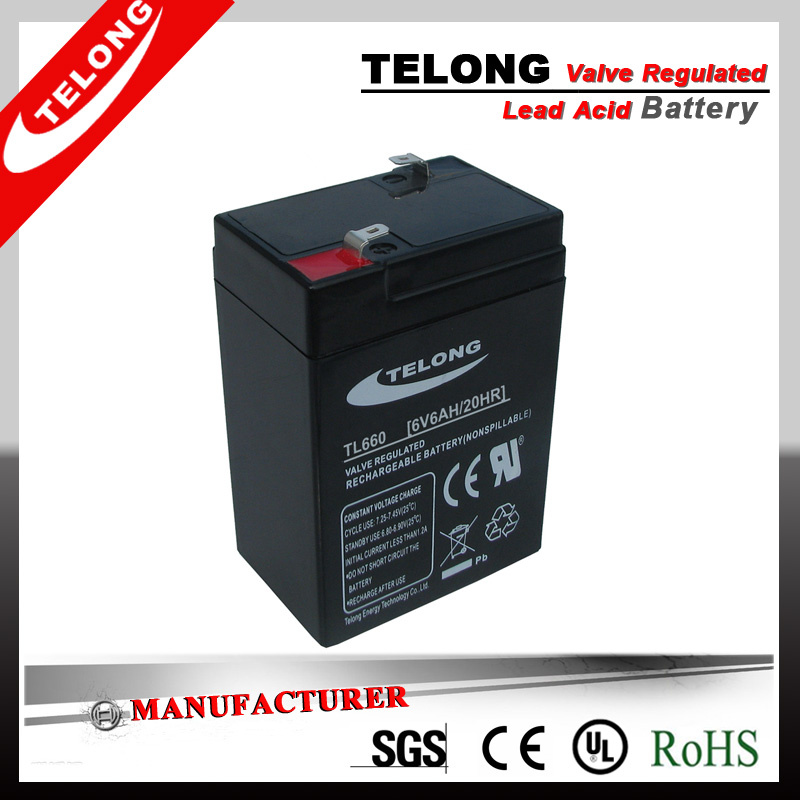

6V6ah General Lead Acid Battery for Electronic Toy
| Price: |
US $ 2.9-3.4/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL660 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Normal Capacity: |
6ah |
| Size: |
70(L)*47(W)100(H)mm |
| Weight: |
0.85kg |
| Color: |
Black / White or Other |
| Internal Resistance: |
20milli-Ohm |
| Charge Voltage (Cycle Use): |
14.4~15V |
| Designed Life: |
3 Years |
| Charge Voltage (Float Use): |
13.5~13.8V |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Toy,Children Car , Alarm System , |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
TELONG 6V6ah Battery: 1). Sealed / Maintenance Free / Rechargeable 2). Warranty: 1 Year , changed with quality problem. 3). OEM / ODM 4). CE UL RoHS approvial 5). Used for: Children car Solar home kit Emergency Lighting System.....BATTERY CONSTRUCTION of 6V6ah Rechargeable Lead Acid Battery| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
FEATURE1). AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.2). Maintenance-free operation - no addition of water to the electrolyte is required.3). Sealed Battery with Valve Regulated Construction .Can be mounted in any orientation.4). Wide range of operating temperatures with temperature compensated charging.5). Computer designed lead, calcium tin alloy grid for high power density.6). Excellent cyclability properties (at normal depths of discharge), the lead acid battery may meet or exceed 1000 discharge/charge cycles.7). Extended service life due to low self-discharge levels.8). Available in flame retardant ABS material for the battery case CHARACTERISTICS of 6V 6ah Solar Power Battery Capacity
25'C (77'C) | 20 hour rate(0.300A ) | 6.00AH |
| 10 hour rate(0.552A ) | 5.52AH |
| 5hour rate(1.020A ) | 5.10AH |
| 1 hour rate(3.600A ) | 3.60AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 16milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than1.7 A |
| Voltage 7.25-7.45V |
| Voltage 6.8-6.9V |
APPLICATIONS of 6V6ah Maintenance free Battery Control equipments /Emergency LightRechargeable Fan /Solar LightPortable Light /Alarm systemsPower tools / Electric toysMedical equipmentsFire and lighting for Emergency systemsUninterruptible power supplies (UPS)OTHER INFORMATION | 1 | Logo: Mine or Yours (silk printing) |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet
Pcs/ctn: 20pcs/ctn
Ctn size: 38.1*22*13cm
GW/NW: 20.6kg/20.4kg |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 25-35 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
