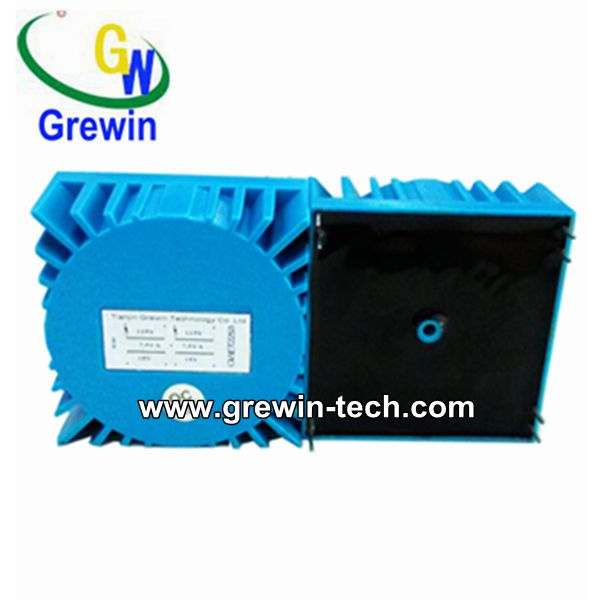

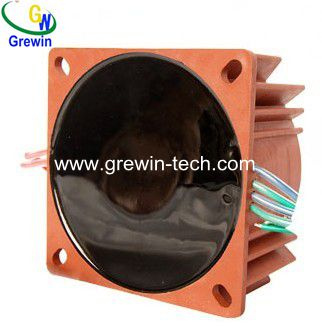

6va-30va Encapsulated Toroidal Transformer in 2016

6va-30va Encapsulated Toroidal Transformer in 2016
Price: US $ 8.9/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: GWB1309
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Low Power Loss And Low Temperature-Rise: Toroidal Transformer
Self-Made Toroidal Core (Po≤0.9W/Kg): in The Result of High Efficiency
Small Size, Moisture Proof & Mould Prev: Encapsulated Toroidal Transformer
Power: 6va-30va
Wire Material: Copper, Aluminum, Aluminum Clad Copper.
Common Transformer's Name: Aluminum Wire Toroidal Transformer-a Farewell
Encapsulated Transformers' Name: Plastic Shell Toroidal Transformer
Anti-Shock, Anti-Moisture, Anti-Dust: Iron Shell Toroidal Transformer
Small Size: High Anti-Strength
Nice Appearance: Low Temperature-Rise
Application: UPS
Phase: Single
Type: Toroidal Transformer with Resin
Installation: PCB

Product Description

Encapsulated Toroidal Transformer :
Product Description
10VA-30VA PCB Mounting isolation toroidal Transformer with CE approval Grewin

Place of Origin: Tianjin, China (Mainland)
Brand Name: Grewin 18va 20va 25va 30va PCB mounting toroidal Transformer
Model Number: 6VA 8va10va 12va15va encapsulated Isolation toroidal Transformer
Usage: Lighting
Phase: Single
Coil Structure: Toroidal
Coil Number: Autotransformer
Encapsulated transformer power range:: 6VA 8va10va 12va15va 18va 20va 25va 30va Toroidal Transformer
usage: LED lighting ,power,electronic,audio,instrument,rectifier,reactor
input: 115v+115v, 230vac 220v 110v
Feature 1:: Nice Appearance, Small Size, Moisture Proof & Mould Prevention.
Feature 2:: Low Power Loss, Low Temperature-rise, Energy-saving
Features 3:: with a single winding, the corresponding max. volume can be reached;
output: 18v+18v,36v ,12v 24v
frequency: 50HZ/60HZ
Pin mounting type: PCB Waterproof toroidal power isolation transformer
Encapsulated by iron shell: CE, RoHS, SGS, CE and ISO9001

GW-ISeries: High Quality Encapsulated Toroidal Transformers with Pins

Model No.

Dimension
a×b×c
(±0.5mm)

Pins Distribution
(mm)  (±0.5mm)



array pitch

Volume
(VA)

E
(8 Pins)

F
(8 Pins)

G
(±0.5mm)



GW-1-D

66×66×40

5

9

59

25-30

GW-2-D

66×66×37

5

9

59

20-23

GW-3-D

62×62×40

5

9

55

18-22

GW-4-D

62×62×37

5

9

55

15-18

GW-5-D

62×62×35

5

9

55

12-15

GW-6-D

62×62×32

5

9

55

10-13

GW-7-D

58×58×35

5

9

51

10-12

GW-8-D

58×58×32

5

9

51

8-10

GW-9-D

58×58×29

5

9

51

6-8

1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance
Main parameters:
Input Voltage:AC 220V   230v 110v (Define the voltage)
Output voltage:AC 12V / 24V       (Define the voltage)
Power range:8VA-30VA PCB Toroidal Transformer

1. Installation:
PCB Mounting Type with PINS

2.Application:
Pcb encapsulated toroial transformer Application:
* garden light
* LED underwater lamp
* LED Ground light
* Outdoor power Supply
* Swimming pool lighting
