6volt 9 AMP Environmentally Control Equipment Backup Battery with UL Component Recognition

Prod Model:	3FM9H
Operating Temperature:	-20c~50c
Design Time:	10-12 Years
Separator:	AGM
Charge Voltage (Cycle):	2.40~2.50V
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0)
Material Lead:	#1 Lead Top Quality in China
Terminal:	Nb or B
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	6V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

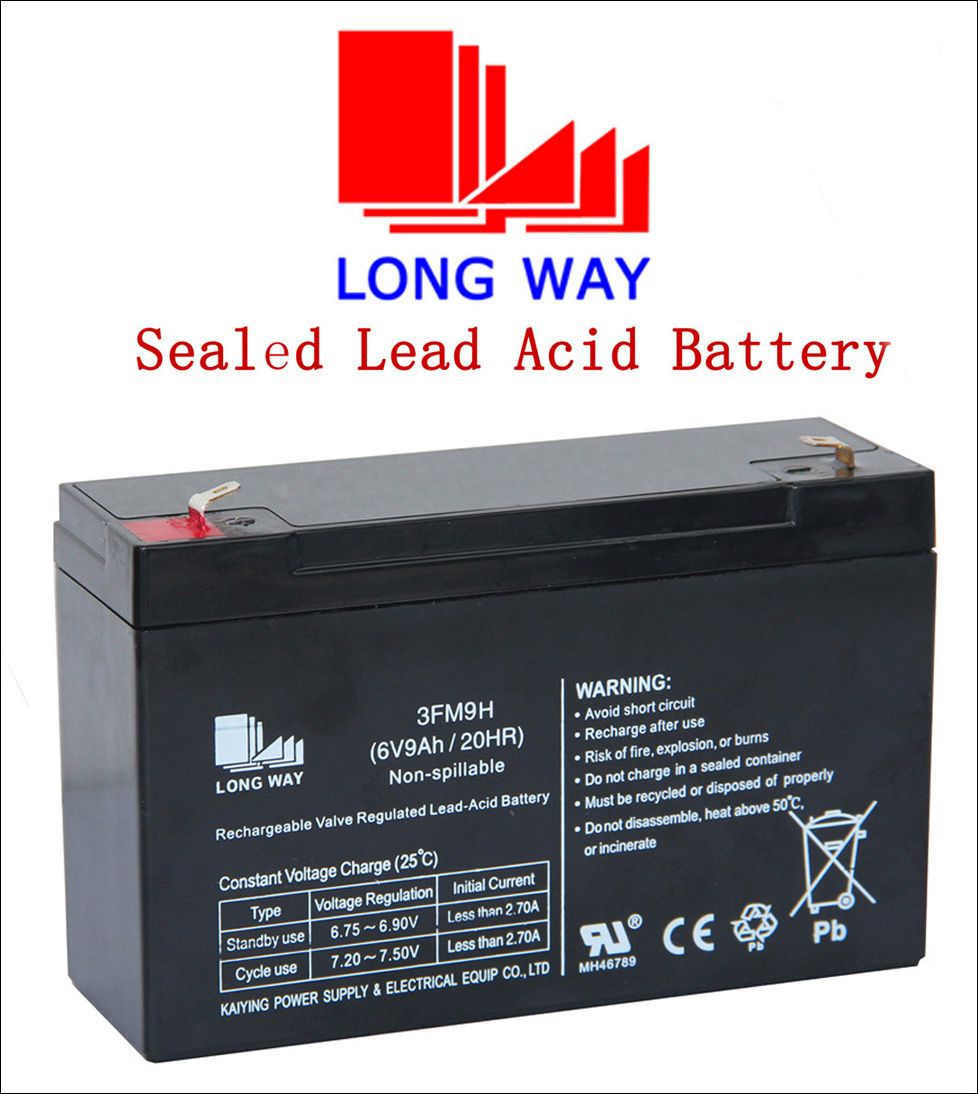

6V9ah HR battery AGM sealed lead acid storage battery

LONGWAY® 3FM9H is specially designed for high efficient discharge
application. Its characteristics are high energy density. It can be used for more
than 260 cycles at 100% discharge in cycle service, up to 5 years in standby
service.

Specifications:
Dimensions: L151*W36*H94(TH100)mm
Cells per Unit 3
Normal Voltage 6V
Capacity 9.0Ah@20Hr-rate to 1.75V per cell@25ºC
Weight Approx.(1.32±3%)kg (2.91lbs)
Maximum Discharge Current 90A(5sec)
Internal Resistance Approx. 21mΩ full charged @25ºC
Operating Temperature Range Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC
Nominal Operating Temperature Range 25ºC±3ºC
Float Charging Voltage 6.84~6.95VDC/unitAverage @25ºC
Maximum Charging Current 2.7A
Equalization and Cycle Service 7.20V~7.50VDC/unit Average @ 25ºC
Self Discharge LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using.
Terminal F1(0.187)/F2(0.250)
Container Material ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request

HR Series
The new LONGWAY HR series batteries are specially designed for applications that require high power output. By optimum design of battery grids and plate paste formula, the HR series can deliver up to 40% more power than LONGWAY standard series.

Features and Benefits
Environment Friendly
Lower Internal Resistance
Positive and Negative plates in Lead-calcium tin alloy
Superior energy density and very high power output
Operates at a low internal pressure
Gas recombination
A recognized component of UL
Lead calcium grids for extended life six months shelf life at 20C

Applications
Office machines and computers
Telecommunication
UPS Equipment
Electrical facilities
Vending machine

If get interest, just contact me freely.
: 0086 18259127189


6V9ah HR battery AGM sealed lead acid storage battery
