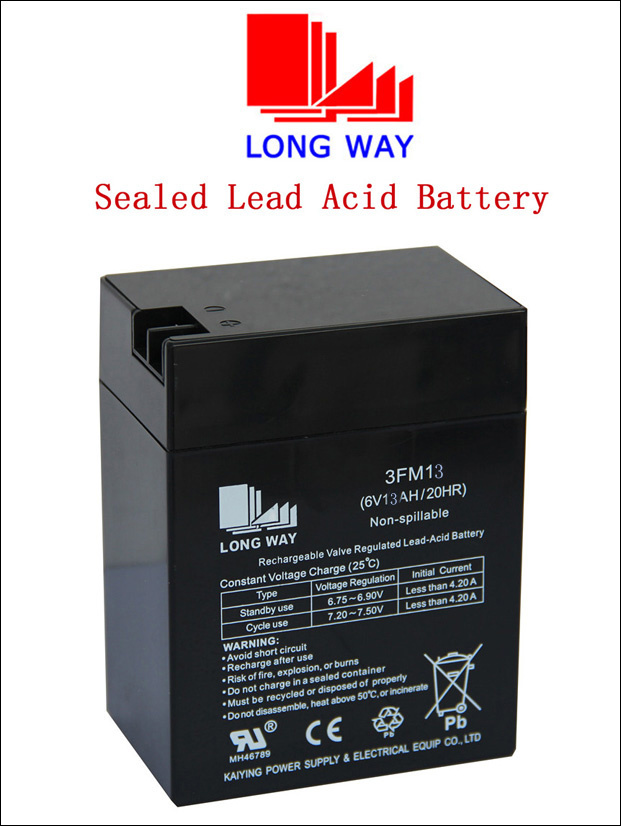

6volt Solar UPS Storage Sealed Lead Acid Battery with Longer Service Life

Prod Model:	6V13Ah/20HR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black
Terminal:	F2(0.250)+ F1(0.187)-
Size:	108*71*140(Total Height: 140) mm
Container:	ABS Plastic
Material:	1# Lead,Purity up to 99.994%
Design Life:	6-12 Years
Certificate:	Ce/UL/ISO9001/ISO14001/Ohsas18001
Type:	Lead-Acid Batteries
Usage:	Solar Battery
Nominal Voltage:	6V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

LONGWAY 6volt storage battery sealed lead acid battery 6V13ah

LONGWAY® Standard battery is design for a general purpose by KaiYing Power.

3FM13 is a general purpose battery up to 5 years in float service ormore than 260
Cycles at 100% discharge in cycle service. As with all LONGWAY® Batteries, all
Are rechargeable highly efficient, leak proof and maintenance free.

1)Detail description
Model: 3FM13Sealed Rechargeable Lead-Acid Battery(6V13AH/20HR)
Trademark: Longway
Size: 108*71*140(Total height: 140) mm
Terminal: F2(0.250)+ F1(0.187)-
Packing Qty: 10 PCS/CTN
13, 000 PCS/Container
Lead-time: 25-30days for one container

Specifications:

Cells per Unit	3
Normal Voltage	6V
Capacity	13Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx. (2.08±3%)kg(4.59lbs)
Maximum Discharge Current	65A(5sec)
Internal Resistance	Approx. 12mΩ full charged @25ºC
Operating  Temperature  Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating  Temperature Range	25ºC±3ºC
Float Charging Voltage	6.75~6.9VDC/unit Average @25ºC
Maximum Charging Current	3.9A
Equalization and Cycle Service	7.20V~7.50VDC/unit Average @ 25ºC
Self Discharge	Self-discharge ratio less than 3% per month at 25ºC.
Terminal	F2(0.250)+ F1(0.187)-
Container Material	ABS(UL94-HB)  *Flammability resistance of (UL94-V0) can be available upon request

2)General Features
Ø Stable quality&high reliability            Ø Sealed construction
Ø Environmentally friendly                     Ø Maintenance-free operation
Ø Low pressure venting system           Ø Heavy duty grid
Ø Low self discharge                              Ø UL component recognition(MH46789)

3)Application
² Alarm systems, Cable television, communications equipment, control equipment,
² Computers, electronic cash registers, electric test equipment,
² Electric powered bicycle and wheel chair,
² Emergency lighting systems, fire&security, geophysical equipment,
² Marine equipment, medical equipment,
² Micro processor based office machines, portable cine&video lights,
² Power tools, solar powered systems,
² Telecommunications systems, television&video recorders, toys,
² Uninterruptible power supplies, vending machines;
