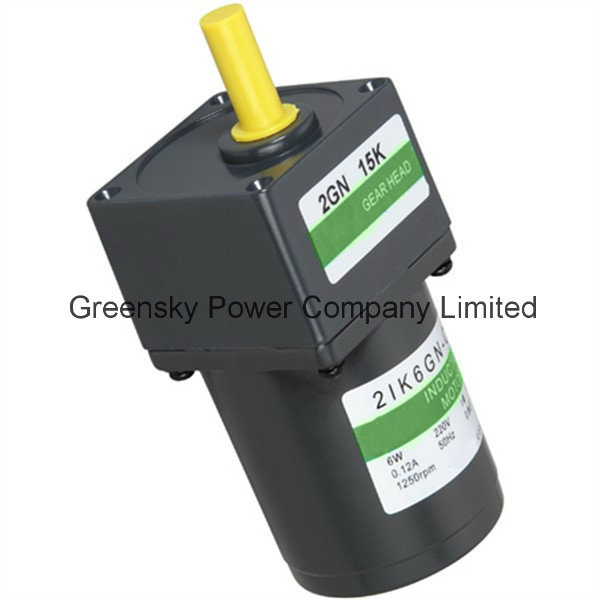

6W 60mm AC Induction Motor

Name: 6W 60mm AC Induction Motor
Brand: all-electronics-online.com
SKU: 743378025
Availability: InStock
Rating: 4.4 (31 reviews)

Price:	US $ 23-25.2/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	2IK6GN-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	25W
Voltage:	220~230V/110V
Frequency:	50/60Hz
Rated Torque:	0.127
Function:	Driving
Number Of Stator:	Single-Phase
Brand:	GS

Product Description

Introduction

Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.
Specification

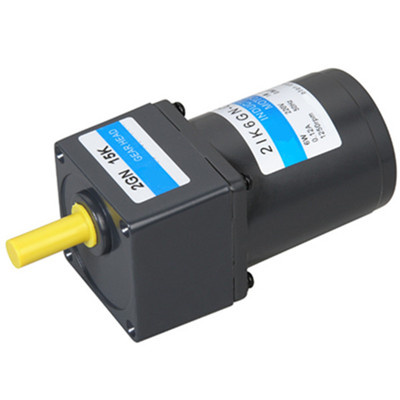

View Of Item

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

Greensky's Advantage

On the site you can find a range of renewable products including AC/DC motor,AC Induction Motor,Reversible Motor,Blake Motor,Speed motor,AC Angel Motor,Gear Motor,Planetary Gear Box,Worm Gear Box and their relevant components.

If you have any other questions, please feel free to contact us.

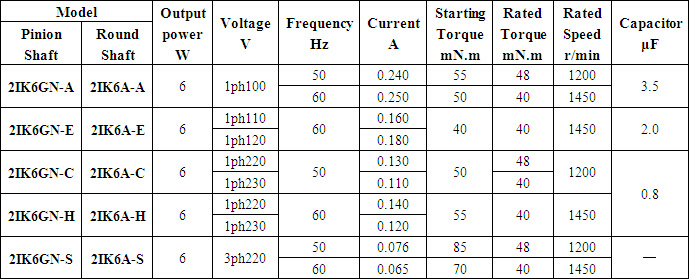

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft	Round Shaft
2IK6GN-A	2IK6A-A	6	1ph100	50	0.240	55	48	1200	3.5
				60	0.250	50	40	1450
2IK6GN-E	2IK6A-E	6	1ph110	60	0.160	40	40	1450	2.0
			1ph120		0.180
2IK6GN-C	2IK6A-C	6	1ph220	50	0.130	50	48	1200	0.8
			1ph230		0.110		40
2IK6GN-H	2IK6A-H	6	1ph220	60	0.140	55	40	1450
			1ph230		0.120
2IK6GN-S	2IK6A-S	6	3ph220	50	0.076	85	48	1200	_
				60	0.065	70	40	1450

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
