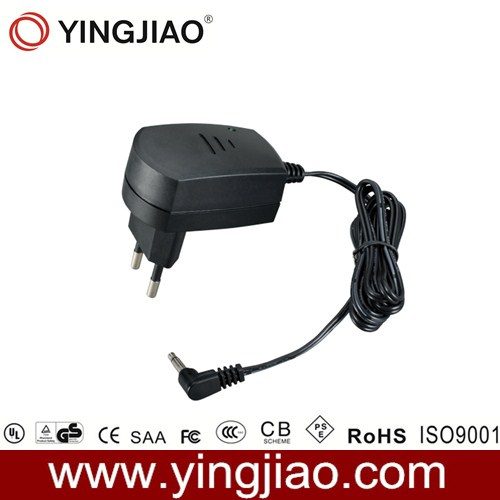

6W GS/UL Approved AC/DC Power Adapter

Name: 6W GS/UL Approved AC/DC Power Adapter
Brand: all-electronics-online.com
SKU: 781026085
Availability: InStock
Rating: 5 (113 reviews)

Price:	US $ 1-5/Piece
Trade Terms:	FOB,others
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Experience:	20 Years'experience
Quick Delievery:	15 Days
Warranty:	3 Years' Warranty
Protection:	Hipot,Short Circuit,Overvoltage
Usage:	Display
Output Type:	AC or DC
Connection:	Plug In
Type:	OEM/ODM
Brand:	Yingjiao/OEM/ODM

Product Description

We are a professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.

Model: YS6 series
Universal Input: 100-240V AC 50/60Hz
Rated Power: 6W max.

Features:
Safety: TUV/GS/CE/UL/CUL
EMI: CLSPR 22 / FCC /VCCI CLASS B
High efficiency & low power consumption
RoHS compliant
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 59mm (L)*39mm (W) *25mm (H)
N. W.: 65g
AC Plug: European two round pins or American two flat pins
Output plug: Optional

Sample Output Specifications:
Output Load Voltage (V) Max. Load Current (A)

Output Load Voltage (V)	15	12	9	7.5	6	5	4.5	4.2	3	2.8
Max. Load Current (mA)	350	400	500	500	800	1000	1000	400	500	400

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
