7.0mm 24 Cores Armored Optical Fiber 250um Bare Cable

Name: 7.0mm 24 Cores Armored Optical Fiber 250um Bare Cable
Brand: all-electronics-online.com
SKU: 837327395
Availability: InStock
Rating: 5 (97 reviews)

Price:	US $ 0.6-1.2/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	001
Cable OD:	7.0mm
Jaket:	PVC
Fiber Type:	Singlemode, OS2
Fiber Count:	24
Color:	Yellow
Attenuation:	0.34dB
Proof Test:	0.69Gpa
Application:	Sensor
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

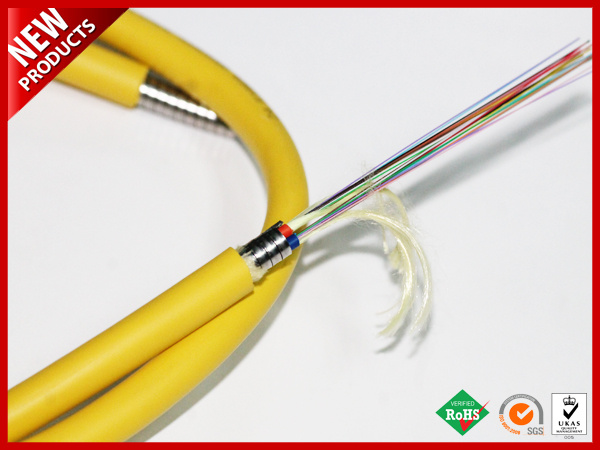

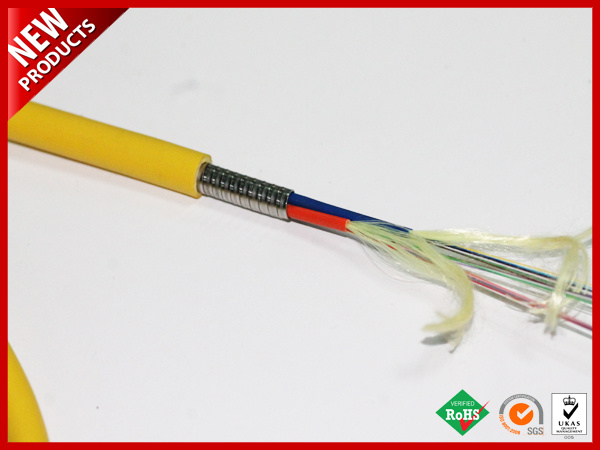

7.0mm 24 Cores Armored Optical Fiber 250um Bare Cable

Outdoor Loose Tube Armored cable has rugged corrugated steel armor which provides extra crush-resistance and rodent protection. RoHS 2 and REACH compliant and all multimode and singlemode cables (except OM1) utilize bend-insensitive optical fibers. Outdoor Loose Tube Armored has gel filled loose tubes to provide protection against water penetration and dry, super absorbent polymers (SAPs) to eliminate water migration in cable interstices. Suitable for lashed aerial, duct, underground conduit environments. Supported applications include gigabit, 10 gigabit and 40 gigabit Ethernet. Made in USA. Hitachi Cable America is proud to utilize Corning Optical Fiber as our standard optic fiber.

Outdoor Fiber Optic Cable Hitachi Cable America utilizes Corning Optical Fiber as its standard fiber for OM2, OM3, OM4, OM5 and OS2 constructions. UV Resistant Jacket Rugged Corrugated Steel Armor Provides Extra Crush-Resistance and Rodent Protection Gel Filled Loose Tubes Provide Protection Against Water Penetration Dry, Super Absorbent Polymers (SAPs) Eliminate Water Migration in Cable Interstices Suitable for Lashed Aerial, Duct, Underground Conduit Applications.

Armored Outdoor Cable Applications Suitable for Lashed Aerial, Duct, Underground Conduit Applications Conventional Outside Plant Fiber Optic Cable for Video Security, Datacom, Broadcast, Telecom or Campus Backbone Applications Outstanding Loss Consistency Across a Wide Range of Temperatures - Good for High Altitude Telescope Arrays, Underground Scientific Experiment Measurements Etc.

Technical Data

No.of Fibers	24
Size (mm)	7.0
Tensile (N)	Long Term	400
Tensile (N)	Short Term	800
Resistance (N/100mm)	Long Term	2000
Resistance (N/100mm)	Short Term	3000
Bending Radius (mm)	Dynamic	20D
Bending Radius (mm)	Static	10D
Cable Loss (db/km)	SM	1310nm
Cable Loss (db/km)	SM	1550nm
Thermal Properties	Transport and storage	-40°C to +70°C
	Installation	-5°C to +50°C
	Operation	-40°C to +60°C
Jacket Color	Black or Customized
Weight	65.0kg/km

Free Cut to Length Service

PUNO hold extensive stock of multi purpose uni-tube distribution cables. We offer a fast turnaround cut to length service providing lengths to your exact requirements. This service is free of charge, and all orders from stock can be available for next day delivery.
