7.0mm FullAXS Fiber Optic MPO MTP Cable Assembly

Name: 7.0mm FullAXS Fiber Optic MPO MTP Cable Assembly
Brand: all-electronics-online.com
SKU: 821307405
Availability: InStock
Rating: 4.4 (119 reviews)

Price:	US $ 29-43/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-001
Product Name:	FullAXS MPO
Fiber Type:	Singlemode
Color:	Black
Fiber Count:	2
Coonector:	MPO
Ferrule Endface:	UPC
Package:	DHL. TNT, FedEx, UPS
Cable OD:	7.0mm
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	MPO

Product Description

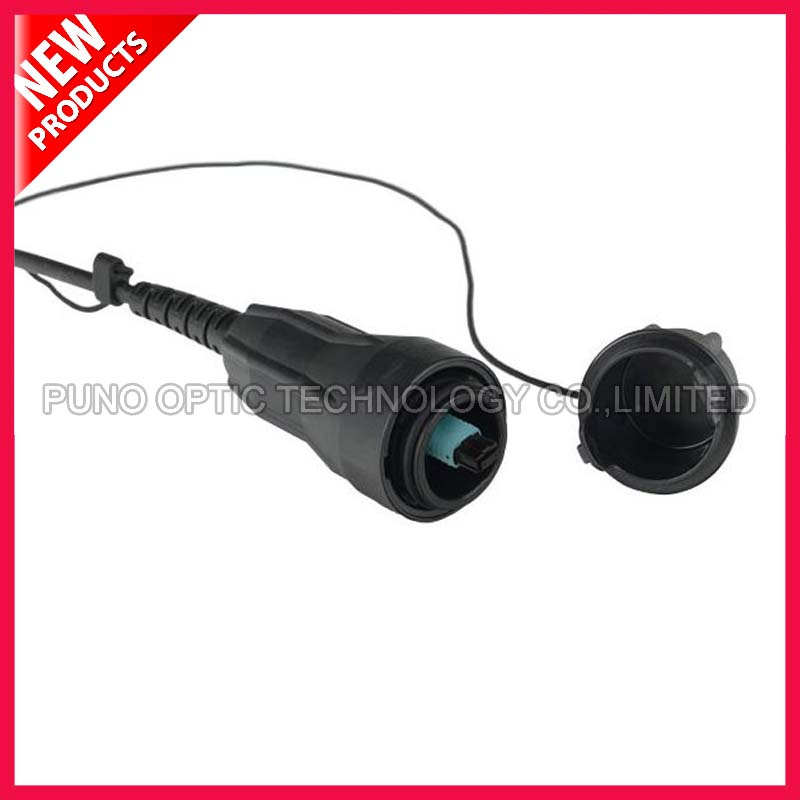

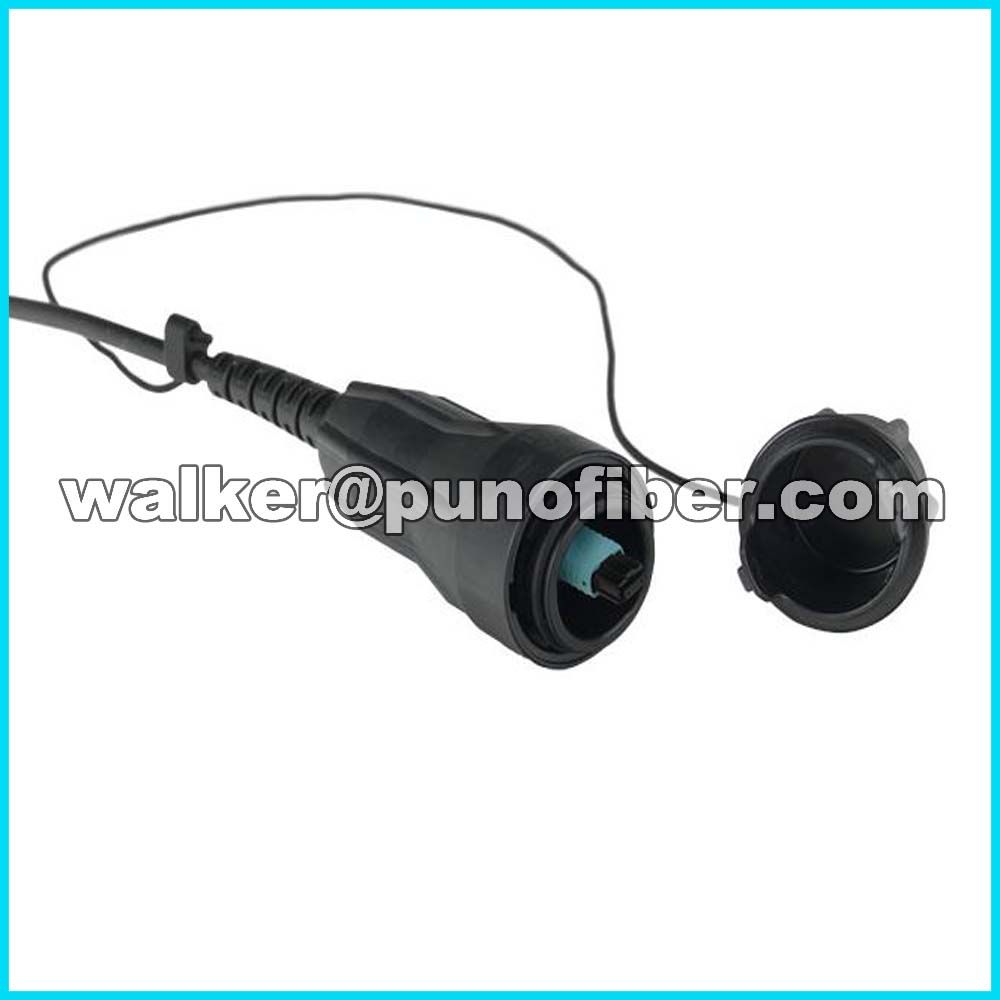

FullAXS Fiber Optic MPO MTP Cable Assembly

Products Overviews:

FullAXS is a compact outdoor connector that is designed to pprovide IP-67 water and dust seal over LC Duplex, MPO/MTP and other connectors types. Applications including connection to remote Radio Units(RRU/RRH), FTTA equipment and other outdoor systems. The Unique design of the housing allows it to be provided on a factory terminated and tested cable assembly.

Keyed Characteristics:

√ IP-67 water and dust seal over LC Duplex, MPO/MTP and other connector types;
√ Applications including connection to Remote Radio Units(RRU/RRH), FTTA equipment and other outdoor systems;
√ Factory termination and tested 100%.

Application:

√ Telecommunications;
√ CATV, LAN, MAN, WAN, Test &Measurement;
√ Military industry;
√ Medical.

Technical Information:

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.3dB	≤0.2dB	≤0.3dB
Return Loss	≥50dB	≥60dB	≥35dB
Test Wavelength	1310/1550nm		850/1300nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-20ºC~+70ºC
Storage Temperature	-40ºC~+85ºC

Fiber cable performance specifications
Fiber type	Min.Bandwidth		Distance	Attenuation
62.5/125	850/1300nm 200/500 MHz/Km		@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km		@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km		@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km
Fiber type		Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,,G657A2
		Multimode: (4)50/125-OM2 (5)62.5/125-OM1 (6)50/125-OM3 (7)OM4
Fiber		YOFC, CORNING, OFS
Connector1		FC,LC,SC,ST.MU, MTRJ, E2000 SMA
Polishing		UPC,APC
Connector2		FC,LC,SC,ST.MU, MTRJ, E2000 SMA
Polishing		UPC,APC
Cord type		Simplex ,Duplex
Cable diameter		0.9mm ,2.0mm, 3.0mm
Cable jacket		PVC,LSZH, OFNR, OFNP
length(M)		0.3m,1m,2m,5m,10m,25m,50m,100m (custom)
