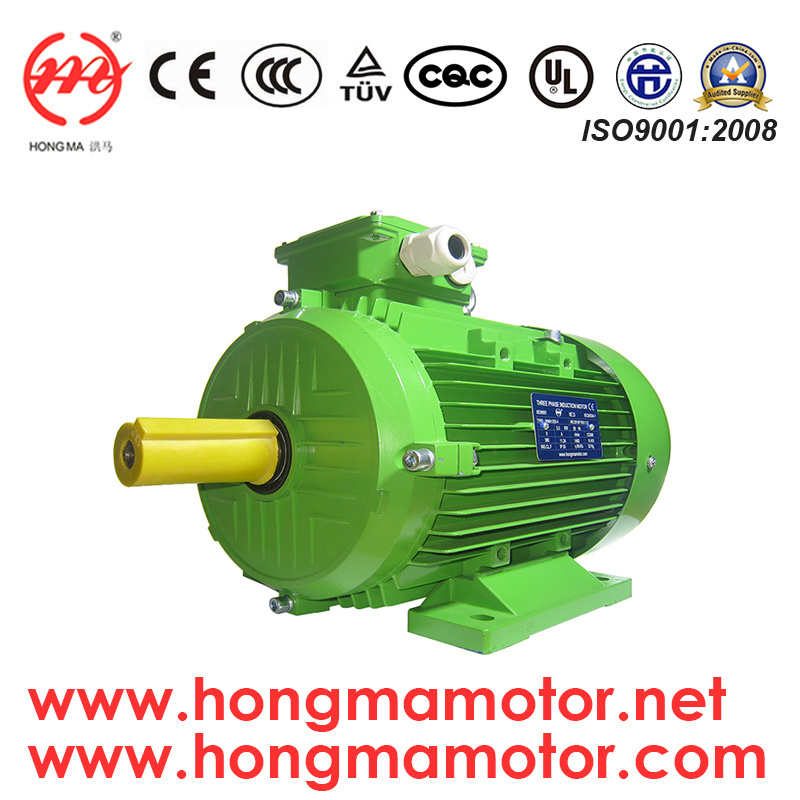

7.5kw 2pole Aluminum Three Phase Induction Motor (132S2-2P-7.5KW)

Name: 7.5kw 2pole Aluminum Three Phase Induction Motor (132S2-2P-7.5KW)
Brand: all-electronics-online.com
SKU: 718378802
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 171.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3HMA132S2-2P-7.5KW
Frame Size:	132
Rated Power:	7.5kw
Pole:	2
Rated Voltage:	220/380V, 380/660V, 230/400V, 400V/690V
Frequency:	50Hz/60Hz
Duty:	S1
Protection Class:	IP44, IP54, IP55
Insulation Class:	B\F\H
Mounting Type:	B3, B5, B14, B35multi and Pad Mounting
Ambient Temperature:	-20~+40 °c
Number Of Stator:	Three-Phase
Function:	Driving
Brand:	Hongma
Certification:	Ce

Product Description

Product Decription
HMA-IE3(3HMA) Aluminium Series Premium efficiency Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor.The HMA Series Motors are enhanced performance motors built in light weight, all aluminum frames. HMA-IE3 Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 80 to 160. HMA-IE3 Aluminium Series Premium efficiency Motors are designed of high efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard.

Technical Data

Frame Size	132
Rated Power	7.5kw
Pole	2
Efficiency	90.1%
Speed(r/min)	2930
Ts/Tn	2.2
Tmax/Tn	2.3
Is/In	8.1
Weight(aluminum)	47kg
Frequency	50Hz/60Hz
Rated Voltage	220/380V, 380/660V, 230/400V, 400V/690V
Duty	S1
Protection Class	IP44, IP54, IP55
Insulation Class	B,F,H
Mounting Type	B3, B5, B14, B35 multi and pad mounting

Package
Frame size under 132: packed by carton box, and then several pcs packed together in a wooden box.
Frame size above 160 : Only packed by a wooden box per set.

Our Certificate

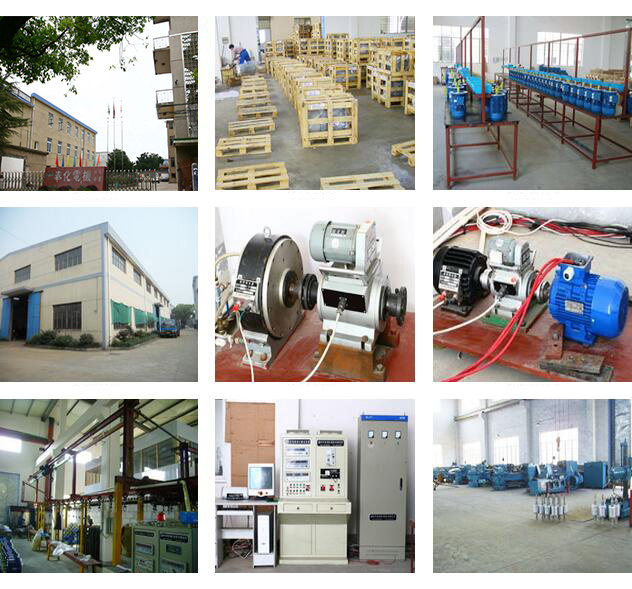

Our Factory

Contact Info
Evan Zhou
Tel : 0086 574 55339278
Mob: 0086 15158307112
Web: www.hongmamotor.com;www.hongmamotor.net

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.

Fenghua City Hongma Motor Co., Ltd.

Address: No. 4 Changhe North Road., Fangqiao, Fenghua, Ningbo, Zhejiang, China

Company Tel: +86 574 88650088

Sales Tel: +86-574-55339278

Fax: +86 574 88650988

Mob: +86 136 8583 1788

Website: HTTP: //www. Hongmamotor. Net
