7.5kw Variable Frequency Drive Inverter VFD 10HP 34A 220-250V

Product Description

INTRUDCTION

This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter. The inpute for this VFD is 1 or 3 phase as you like. You can control the different speed as you like when yo use this VFD. Many customer bought this VFD from us to use for: Lathes, Mills, Car Hoists, Pumps & Conveyors, etc and then performance excellently. This item use Sine wave PWN(SPWM ) for the control system and performace excellently.

How To Install This VFD:

Symbol:Function Description
R.S.T:Input terminal of AC line power. (220V class  for both single/three phase, single phase connected to any two phases)
U.V.W:Output terminal of the inverter
P+.PR:Connector for braking resistor.
E:Ground terminal: the third method of grounding for 220V.

Item Connection Diagram:

Frequency Control:

1. Range:0.1~2500.0Hz
2. Accuracy:Digital: 0.1%(-10~40ºC); Analog: 0.1% (25±10ºC)
3. Setting Resolution:Digital: 0.1Hz; Analog: 1‰ of max. Operating frequency
4. Output Resolution:0.1Hz
5. Operator Setting Method:Press directly ←∧∨ to set.
6. Analog Setting Method:External Voltage 0-5V,0-10V,4-20mA,0-20mA.
7. Other Functions:Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.

General Control:

1. Ramp Control:Selectable 4-speed steps ramp-up and -down time (0.1-6500s).
2. Torque Control:Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.
3. Multi-Inputs:6 multi-function input terminals for 8-speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions.
4. Multi-Outputs:5 multi-output for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings.
5. Other Functions:Auto Voltage Regulation(AVR), Decelerating Stop or Coasting Stop, DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control, Traverse Control, Drawing Control,Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc.

Protection Functions:

1. Overload Protection:Electronic relay protection motor drive.Drive(for constant torque150%/1 min. for the kinds of fan 120%/1min.)
2. FuseProtection:When the fuse breaks , the motor will stop.
3. Over-voltage220V class:DC Voltage >400V.
4. Under-voltage:220V class:DC Voltage <200V.
5. Restart After Instant Stop:Restart with Frequency Track afterInstant Stop
6. Stall Protection:Stall protection in ramp operation
7. Output Short Circuit:Electrical circuit protection
8. Other Functions:Fin over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, etc.

********************************************
FEATURES

• Our item adopts the Japan Mitsubish chip
• PID control; advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
• Easy PLC function can realize 16 legs of speed and inverter control function;
• Low output ratting torque0.5HZ-150%, low speed running ability;
• Carrier adjustable by 16KHZ, completely soundless working environment;
• Broad voltage working area
• Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
• Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
• With perfect error protection and short circuit starting protection capability;
• ISO9001 quality certifications which means this item is the top quanlity item.

********************************************
TECHNICAL

• Inpute Voltage: 220V
• Output Voltage: 208-240VAC ( analogous to Input Voltage )
• Inpute Frequency: 48-63 Hz
• Outpute Frequency: 0-400 Hz
• Inpute Phase: 1 or 3 phase as you like
• Outpute Phase: 3 phase
• Item Manufactuer: From a well-known manufacture who manufacture VFD for more than 12 years.
• Series:HY inverters
• Control Mode:SPWM
• Input Power:220V class:220±15%
• 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
• Working Temperature:-10~40ºC
• Humidity:0-95% Relative Humidity(without dew)
• Vibration:Below 0.5G

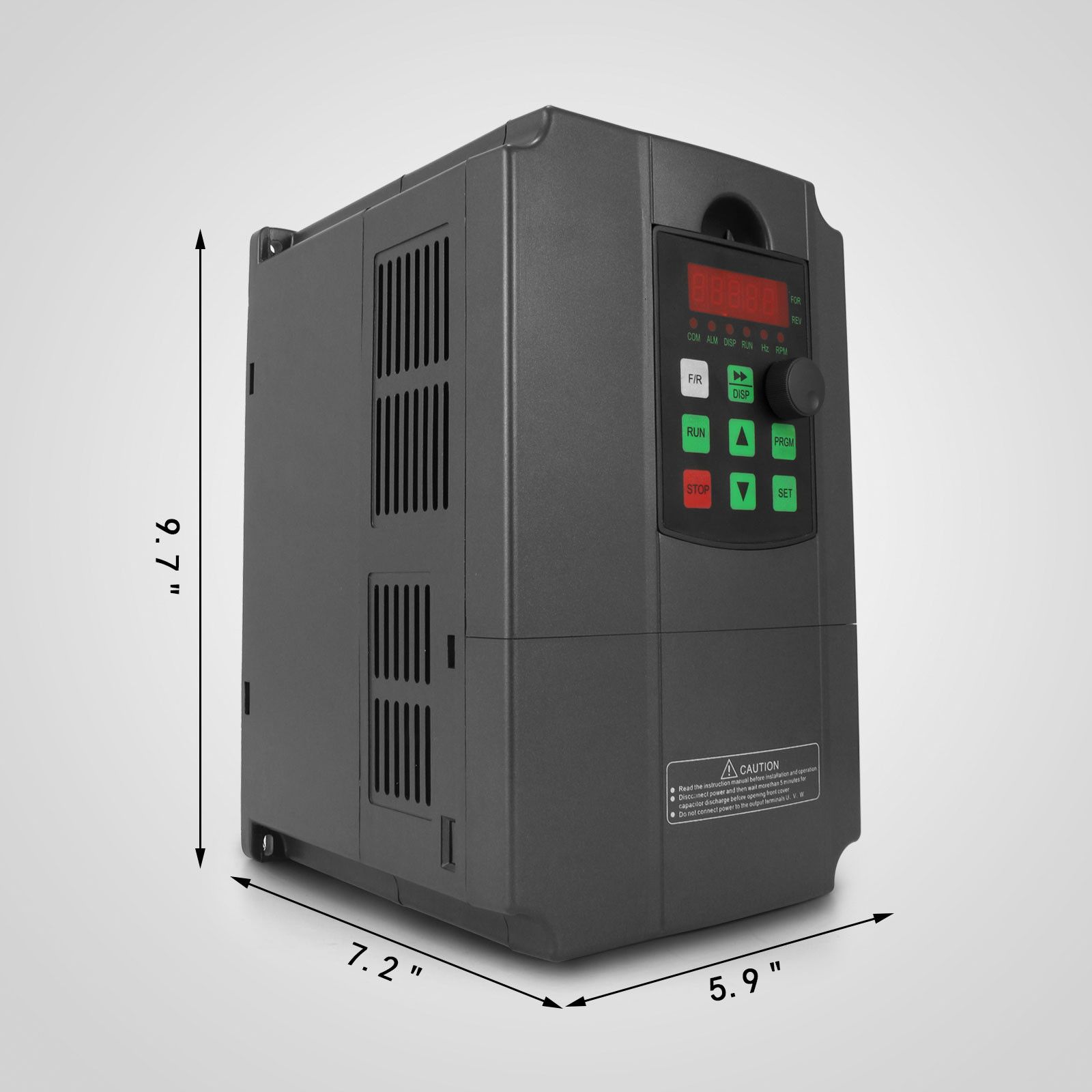

• Dimension:38 x 29 x 29cm(L x W x H)
• Warranty: 2 year

********************************************
PACKAGING

• 1 x 7.5KW Variable Frequency Drive Inverter
• 1 x English Manual
