7.62mm Pitch Pluggable Terminal Block (WJ2EDGKB)

Name: 7.62mm Pitch Pluggable Terminal Block (WJ2EDGKB)
Brand: all-electronics-online.com
SKU: 770640765
Availability: InStock
Rating: 4.5 (40 reviews)

Price:	US $ 0.02-0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ2EDGKB-7.5/7.62mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	7.5/7.62mm
Screws:	M3.0 Steel Zn Plated
Clamp:	Phosphor Bronze, Ni Plated
Housing:	PA66 UL94V-0
Application:	Stepper Driver
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Wanjie

Product Description

Free samples can be sent!

Our advantages:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. The company have passed the ISO9001:2008, ISO14001, OHSAS18001 quality management system and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products.

With the advanced administration system, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Asia, Africa etc and get good comment from the customers.

Hope to cooperate with you.

Product Description

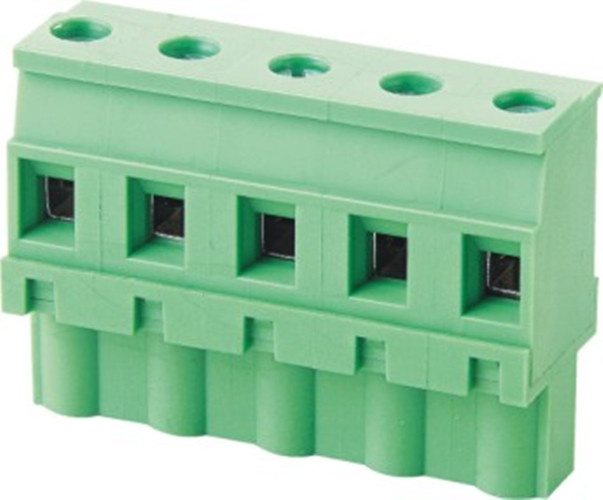

Pluggable terminal block-WJ2EDGKB

Material
Screws	M3.0 Steel Zn plated
Clamp	Phosphor bronze, Ni plated
Cage	Brass, Ni plated
Housing	PA66, UL94V-0

Electrical
Rated voltage	300V
Rated current	15A
Wire range	28-14AWG 2.5mm²
Contact resistance	20mΩ
Insulation resistance	500mΩ/1000V
Withstanding voltage	AC 2000V/1 Min

Mechanical
Temp. Range	-40º C~ +105º C
MAX Soldering	+250º C, for 5 Sec
Torque	5.10kgf-cm/0.5Nm/4.43Lbin
Strip length	7-8mm

If you can't find the exact product you need in the pictures, please don't go away.

Just contact me freely or send your sample and drawing to us.

We will reply you as soon as possible.
