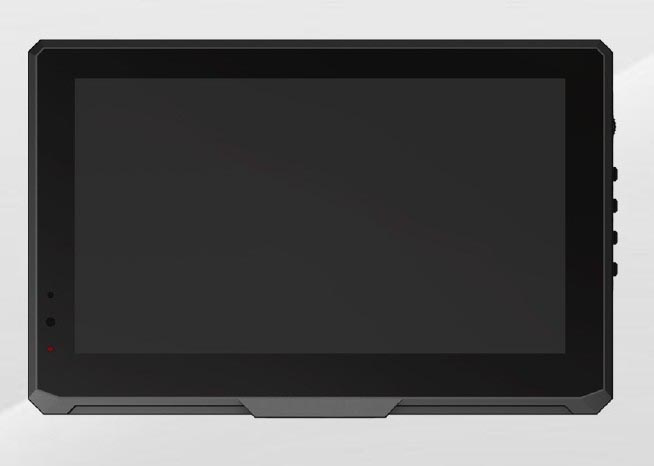

7" Capacitive Multi Touch Panel Monitor for I/O Control Interface

7
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
Prod Model: AL-779T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Mode: 16:9
Brightness: 400CD/M2
Backlight: LED
Contrast: 500:1
Touch Screen: Capacitive Touch Panel
Input: HDMI,VGA,AV,DVI
Application: Outdoor
Aspect Ratio: 16:9
Feature: LED Backlight Display
Optimum Resolution: 1920x1080
Type: TFT
Widescreen: Widescreen
Response Time: 8ms
Interface Type: HDMI
Screen Size: 7 Inch

Product Description


7" HDMI Monitor With Capacitive Touch Function (AL-779T)

Functions:
Multi-touch capacitive screen
Lux auto backlight
Integrated dustproof front panel
I/O control interface
HDMI, DVI & VGA inputs
High brightness:400cd/m2
High contrast: 500:1
Capacitive Touch Panel
Support 10-point allows people flip and zoom in/out picture via fingers, High precision fast response, and have a longer life, Better transmittance.
Lux Auto Brightness (optional)
A light sensor designed to detect ambient lighting conditions adjusts the panel's brightness automatically, which makes viewing more conveniently & saves more power.
I/O control interface

The interface has functions such as connecting with reverse trigger line in car reversing system, and control computer host to switch on/off, etc. Functions also can be customized to meet different demands.


Display Screen  7" LED backlit, 16:9
Resolution  800 x 480, 8bit, suport up to 1920 x 1080
Touch Panel  Capacitive Touch (optional)
Contrast Ratio  500:1
Brightness  400cd/m2
Viewing Angle  140°/120°(H/V)
Input Signal  HDMI, VGA, AV, DVI(optional)
I/O port  1
Speaker  1
Input Voltage  DC 7-36V
Battery  External (optional)
Current  450mA
Power Consumption  ≤4.5W
Audio Output  ≤1W
Operating Temperature  -20ºC~60ºC
Storage Temperature  -30ºC~70ºC
Dimension(LWD)  185×118.5×29.5 mm
Weight  415g

Accessories:
I/O control line                     1 piece
VGA cable                           1 piece
HDMI A/A cable                    1 piece
A/V input cable                    1 piece
Remote control                    1 piece
Bracket                                1 piece
12V DC adapter                   1 piece
Car power                            1 piece
Manual                                 1 copy
HDMI to DVI cable (optional)
75mm VESA folding bracket  (optional)
VESA battery bracket & battery plate (optional)
Auka Industrial Limited is a high-tech enterprise specializing in TFT LCD Monitor, Touch Screen Monitor, Broadcast Camera Field Monitor, Embedded Computer, Industrial Panel PC, CCTV Monitor, USB Touch Monitor, Open Frame Monitor, LCD SKD Module, All in one POS, Transparent LCD, Sunlight Readable Monitor, FPV Monitor, Police Body Worn Camera and car DVR Recorder. And are widely used in the fields of security monitoring, traffic control center, broadcasting system, military, city square, shopping mall, bank, school and hospital, etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc. We have set up a large customer network and gained praise since establishment in 2005 for preciseness, cordiality, powerful technology support and perfect market understanding. A factory with more than 8, 000 sq. M. As well as a team of well-trained employees. Our department of R&D, production, sales and after-service strictly abide by ISO9001 quality control system. Certified by CE, FCC, RoHS, CCC and E-MARK standard, the performance of our products meets or exceeds the advanced world standard. And our own-designed LCD Touch Monitor have became popular among many long- term customers and partners. Our products have been exported to America, Europe, Middle East, Australia and Southeast Asia.

We have yeares experience in OEM of VGA Touch screen, TFT LCD Module, Embedded Computer.

Welcome to our company for any OEM / ODM cooperation! Let' S go ahead hand in hand to embrace our prosperous tomorrow!

Professional, fast, and wonderful after-sales service is our mission. Customers' satisfaction is our final aim.
