| Prod Model: |
HTW-31-WKT13 |
| Thermostat Operating Voltage: |
2 X AA1.5 V, Alkaline Batteries. |
| Backup Storage: |
Eeprom |
| Receiver Operating Voltage: |
230 VAC, 50/60 Hz |
| Maximum Voltage / (Ohmic) Load: |
250 VAC/10 a. |
| Frequency: |
868 MHz/433MHz Optional |
| Channel Selection: |
by Programming The Thermostat and The Receiver |
| Switching Options: |
5+1+1 Day, 4 Periods Each Day. |
| Receiver Switch Contacts: |
No and Nc. |
| Temperature Settings: |
5°c ~ 35°c, 0.5°c Increments. |
| Accuracy: |
+/- 0.5°c |
Product Description

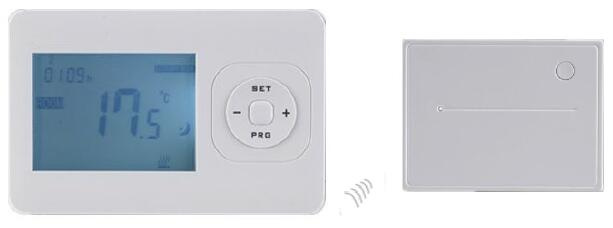

General7 Day Programmable Wireless Switch Thermostat Replace Honeywell Models(HTW-31-WKT13) is designed to be used with electric, gas or oil heating control system or cooling system.
This surface-mounted radio thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time.Features• Easy household installation to detect and control the temperature of an area of the user's choice
• More convenient to change the battery .
• Signal transmission distance up to 100m
• Clear intuitive LCD display
• Displays the set point + room temperature + time simultaneously
• 4 periods of each day programmable(5+1+1)
• Optional temperature display of Celsius or Fahrenheit scale
• Both vacation mold and hold duration mode available for comfort and energy saving
• Separate 5-day (weekday) and 1-day/1-day (Saturday/Sunday programming with four separate time/temperature periods per day)
• Supplied with a wall-fixing frame, base and a very compact receiver (surface-mounted).
Technical Parameters• Power source :2 AA size 1.5V alkaline battery
• Receiver operating voltage: 230 VAC, 50/60 Hz
• Max. load: 250 VAC/10 A.
• Wireless frequency band: 868 MHz/433Mhz optional
• Wireless transmitte range:100m in the open air
• Accuracy:0.5°C
• Receiver switch contacts: NO and NC.
• Temperature settings: 5°C ~ 35°C, 0.5°C increments.

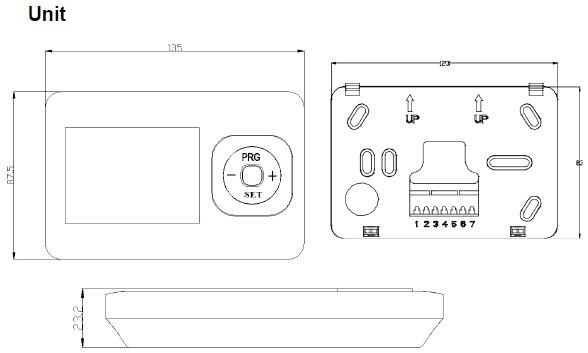

• Thermostat dimensions: Surface mounted, 135mm x 87.5 mm x 23.2mm.

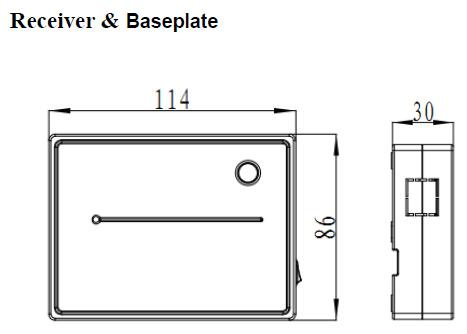

• Receiver dimensions: Surface mounted, 114mm x 86 mm x30mm.

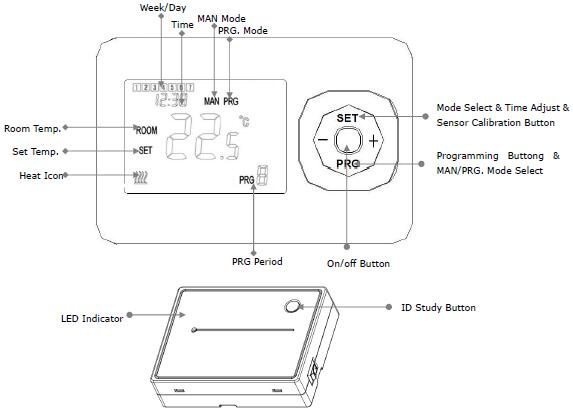

Display
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
