7 Days NEMA 17 High Speed Stepper Motor by Sea

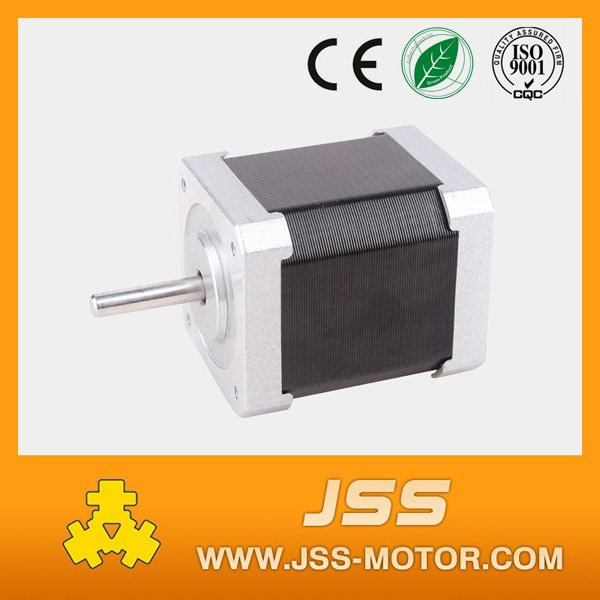

Name: 7 Days NEMA 17 High Speed Stepper Motor by Sea
Brand: all-electronics-online.com
SKU: 812575305
Availability: InStock
Rating: 4.3 (78 reviews)

Price:	US $ 5.59-10.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42HS44-0804
Step Angle:	1.8
Frame Size:	42mm X 42 mm
Current:	0.8A
Resistance:	14
Inductance:	33mh
Holding Torque:	5.2kg.Cm
Motor Body Length:	44mm
Lead Wires:	4
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Operate Mode:	Driver
Certification:	Ce
Brand:	Jss

Product Description

We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.

1. NEMA 17 stepper motor, high performance, low heat, low virbration, low noise.
2. stepper motor with double shaft
3. Shaft length can be customized, and it can be round shaft or shaft with flat side(D-cut).

Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

Dimensions and wiring diagram:

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

High quanlity, fast delivery, good service

Contact information:
Tel: 86-519-86922120
Welcome to consult!!!!!!!!!!!!!
JSS MOTOR YOUR BEST CHOICE!

TYEP	phase No.	step angle	current (A)	resistance(Ω±10)	inductance (mH±20)	holding torque(kg.cm)	length (mm)
42HS34-0606	4	1.8	0.6	5	3	1.2	34	6
42HS34-0804	2	1.8	0.8	6.5	4.6	2.3	34	4
42HS34-1504	2	1.8	1.5	1.9	2.5	2.5	34	4
42HS40-0804	2	1.8	1.2	6.5	12	4	40	4
42HS40-0806	4	1.8	0.8	7.5	7	2.6	40	6
42HS40-1704	2	1.8	1.7	2	3	4.2	40	4
42HS44-0804	2	1.8	0.8	14	33	5.2	44	4
42HS44-1504	2	1.8	1.5	2	3.6	4	44	4
42HS48-0606	4	1.8	0.6	19.5	13.5	3.8	48	6
42HS48-1204	2	1.8	1.2	3.2	4.2	4.2	48	4
42HS48-1304	2	1.8	1.3	3	5.5	5.2	48	4
42HS48-1504	2	1.8	1.5	1.4	2.5	4.8	48	4
42HS48-1504-1	2	1.8	1.5	2.8	4.8	5.5	48	4
42HS48-1684	2	1.8	1.68	1.8	2.8	4.8	48	4
42HS48-2504	2	1.8	2.5	1.2	1.8	5.5	48	4
42HS54-1504	2	1.8	1.5	3	6.5	6.8	54	4
42HS60-1206	4	1.8	1.2	6	7	6.5	60	6
42HS60-1504	2	1.8	1.5	2.5	6	7	60	4

Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.

On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as the guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.
