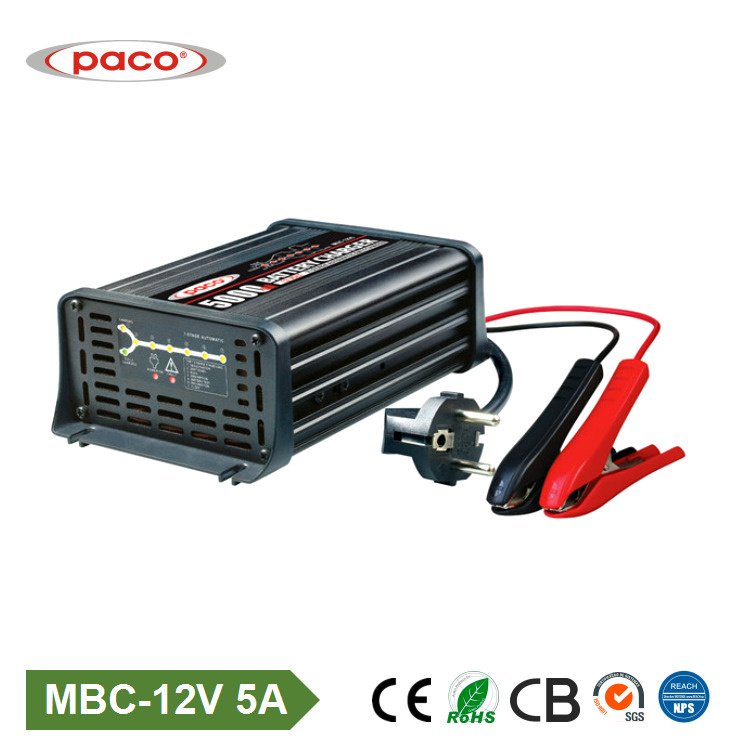

7-Stage Portable 12V 5A Universal External Laptop Car Battery Charger

Name: 7-Stage Portable 12V 5A Universal External Laptop Car Battery Charger
Brand: all-electronics-online.com
SKU: 669644505
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	US $ 20.2-23.2/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MBC 1205
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Paco (OEM Is Welcomed)
Socket Standard:	EU/Au/UK/Us
Battery Range:	35ah-100ah
Certificate:	Ce,CB,RoHS
Weight(Kg):	1.05kg
Warranty:	12 Months
Type:	Lead-Acid Battery Charger
Charging Type:	Electric Charger
Principle:	7-Stage

Product Description

7-stage portable 12v 5A universal external laptop car battery charger

Features

Microprocessor Control (CPU)

·Fully automatic battery charger with 7 charge stages

·Can leave the charger connected to the battery indefinitely

·Gives your battery longer life and better performance

·Suitable for Calcium, Gel and AGM batteries, help restore drained and sulphated batteries

Specifications

Switchmode technology:	Yes
Polarity protection:	Yes
Output short protection:	Yes
Non battery link protection:	Yes
Over voltage protection:	Yes
Over temperature protection:	Yes
Cooling fan:	Automatic temperature controlled
Input voltage:	220-240V AC, 50/60Hz / 110V AC, 50/60Hz.
Input power:	154W
Rated output:	12V DC, 5000mA
Minimum start voltage:	2.0V
The 7 stages are:	Desulphation; Soft Start; Bulk; Absorption; Battery Test; Recondition and Float.
Battery range:	50-140AH
Thermal protect (fan on):	65ºC+/-5ºC
Cooling fan:	Automatic temperature controlled.
Efficiency:	App. 85%.
Compliant standards:	CB,CE, IEC60335, EN61000, EN55014
Dimension (L×W×H):	26513070mm
Weight:	1.05KG

FAQ

Q. How do I know if the battery is charged?

A. The charger's FULLY CHARGED LAMP will illuminate (solid). Alternatively use a BatteryHydrometer A reading of 1.250 or more in each cell indicates a fully charged battery.

Q. I have connected the charger properly but the 'CHARGING LAMP' does not come on?

A. In some cases batteries can be flattened to the point where they have very little or no

voltage. This can occur if a small amount of power is used for a long time, for example

a map reading light is left on for a week or more. MBC/MXC battery chargers are

designed to charge from as little as 12V charger 2.0 Volts and 24V charger 4.0 Volts

If the voltage is lower than 2.0 Volts and 4.0 Volts use a pair of booster cables to connect between

two batteries to provide more than 2.0 Volts and 4.0 Volts to the battery being charged. The charger

can then start to charge the battery and the booster cables can be removed.

Q. Can I use the charger as a power supply?

A. MBC/MXC battery chargers are designed to only supply power to the battery clips when

they are connected correctly to a battery. This is to prevent sparks during connection to

the battery or if connected incorrectly by mistake. This safety feature prevents the

charger from being used as a 'Power Supply'. No Voltage will be present at the clips

until connected to the battery.

Q. How can I know what stage the battery charger is in?

A. MBC Below are the conditions that are displayed by the lamp for each of the charge stages.

Desulphation

Soft Start

Bulk

Absorption

Battery Test

Recondition

Float

Fully

Charged

Charging
