700mA 35W Dimmable Single-Output Plastic LED Driver

Name: 700mA 35W Dimmable Single-Output Plastic LED Driver
Brand: all-electronics-online.com
SKU: 761728815
Availability: InStock
Rating: 4.8 (149 reviews)

Price:	US $ 7.69-8.09/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SD-631-CC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	35W
Output:	Constant Current
Input Voltage:	170-250V
IP Rating:	IP67
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	1504030mm
Case:	Plastic Case
Efficiency:	85%
Operating Temperature:	-25~40 Degree
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Certification:	CE, EMC, SAA
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

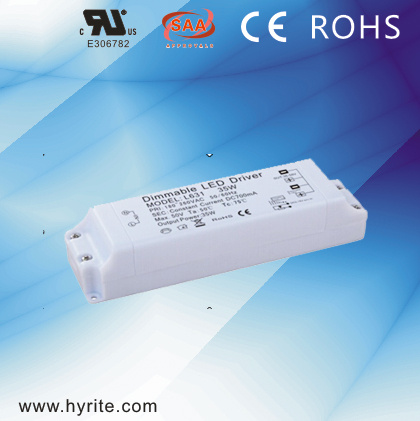

700mA 35W 0-10V Dimmable Single-Output Plastic LED Driver

Brief Introduction:
*Constant Current output IP67
*0-10V Dimmable LED Drivers
*Used for LED Module, Strip, Spot Light, Down Light, Panel Light ect
*Protection: Over Load, Over Heat, Short Circuit
*Using 0-10V Dimmer

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Data sheet:

Model no.	OS-626-CC
Input voltage	170-250 VAC 50/60 Hz
Max. power	35W max
Dimmer	Dimmer
Output type	Constant Current
Efficiency	85%
Output	700mA
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Non Waterproof
IP rating	IP67
Certificates/standards	CE
Connection input/output	Terminal
Dimensions(LWH)	1504030mm
Brand	Hyrite Lighting(NeonPro)

More picture about our factory:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
