| Prod Model: |
MS700U-700W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| USB Output (Optional): |
5V 500mA |
| Power: |
700W |
| Phase: |
Single |
Product Description

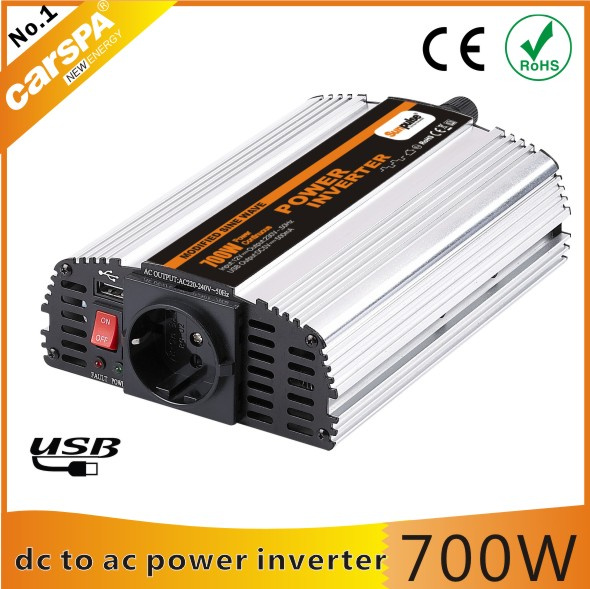

New Version 700W Power Inverter (MS Series) With USB Output
CARSPA new version modified sine wave inverters we called MS series, it is improved base on CAR series modified sine wave inverter. We produce the power range from 300W to 3500W recently. CARSPA MS700-700W inverter It convert 12V/24VDC to 100-120V/220-240V AC, you can power for your electric appliances which rated power less 700W continuously. There is DC cable with cigarette lighter plug and the DC cable clips included in packing, you can use in your car by plug into cigarette lighter socket or directly with batteries. The optional USB output port offers one more choice for user. It can charge for some digital equipment as you want.
Product Features:
1. Anodized Aluminum case provides durability & max heat dissipation
2. DC cigarette lighter accessory plug and heavy-duty cable clamps for high-output direct battery connections both included.
3. Automatic restart function.
4. USB output port: 5V500mA (optional)
5. Two LED indicators on the front panel shows the working and failure state
5. ON/OFF switch control the inverter by hand
6. The inverter is compact, light weight and easy to operate.
7. Loads can be powered directly from the AC outlets.
8. The inverter is equipped with numerous protection features to guarantee safe and trouble-free
9. New design case, improved PCB design and workmanship, much better cooling.
Protection Function:
1. Low voltage alarm & Shutdown
2. Over-voltage protection
3. Overload protection
4. Over-temperature protection
5. Short circuit protection
6. Reverse Polarity protection
7. Soft start
8. Auto. Reset after being in protected
| Model | MS700U-121 | MS700U-122 | MS700U-241 | MS700U-242 |
| Rated power | 700W |
| Surge power | 1400W |
| Output voltage | 110V | 230V | 110V | 230V |
| Output frequency | 50/60Hz ± 3 |
| Output waveform | Modified Sine Wave |
| USB port | 5V 500mA (optional) |
| Input voltage | 12V | 24V |
| Dimension | 23*13.4*5.8cm (L*W*H) |
| N. W/unit | 1100g |
| QTY/CTN | 8pcs |
| Packing | Gift box |
| Meas. /CTN | 52.5*38.5*30cm |
| Brand | CARSPA or OEM |
| Certification | CE-EMC/LVD, RoHS, E-mark |
| Warranty | 18 months |
| Note: if you no need the USB port, please contact our sales before place an order |
