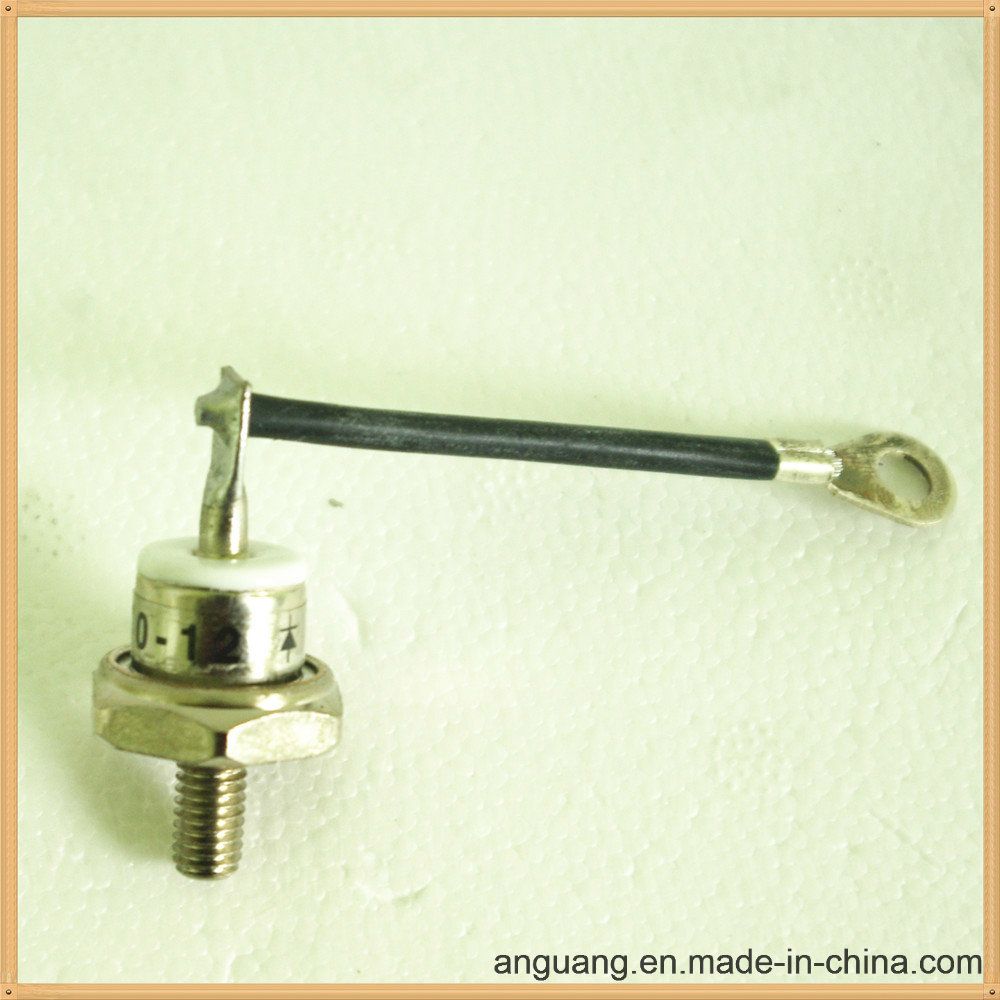

70A Rotating Rectifier Diode Zx70 for Generator

Name: 70A Rotating Rectifier Diode Zx70 for Generator
Brand: all-electronics-online.com
SKU: 826531145
Availability: InStock
Rating: 4.5 (41 reviews)

Price:	US $ 1.5-8/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	zx 70A

Product Description

Product Description

Features

1.High reliability
2.low forward voltage drop
3.VRRM up to 1800V
4.High surge current capability
5.Installation is simple, easy maintenance
6.Max work junction temperature up to 150ºC
7.Welded structure, excellent temperature characteristics and power -cycling capability

Applications

1.Welding
2.Generator excitation
3.Other Rectifier circuit
4.Counter Circuit
5.Power supplies

Packaging & Shipping
Packaging: Depending on the product size, but all ship with standard, secure packaging & customize.
Shipping: We will ship all your order within 15 days after receiving T/T payment.

Technical Data

TYPE	IT(AV)	VRRM	ITSM	VTM	IDRM	RTH
	IF(AV)	VDRM	45ºC10ms	VFM	@Tc	RTH
	A	V	A	V	mA	ºC/W
ZX25A	25	400-1800	350	≤1.3	≤2	0.34
ZX40A	40	400-1800	500	≤1.3	≤2	0.30
ZX70A	70	400-1800	900	≤1.3	≤3	0.30
ZX50A	50	400-1800	600	≤1.3	≤3	0.25
ZX70A	70	400-1800	900	≤1.3	≤3	0.26
ZX100A	100	400-1800	1300	≤1.3	≤3	0.21

We are Changzhou Anguang Electrical Appliance Co., Ltd, a professional manufacturer. We established in 2011 and factory was located in Changzhou city, Jinagsu Province, which is the business and economy center with easy transportation and is very close to Shanghai. Our international airport name is Changzhou Benniu International Airport.

We specialize in Electrical Motor and Generator excitation parts with best quality, best service and best price. We supply:

1. Electrical Motor Terminal Block, we can provide many types and sizes terminal block, also can according to customer request to make a new type terminal block.

2. Diodes, it's for generator, we have 25A, 40A, 70A, 100A diodes and also can as customer request to produce new kind diode.

3. Bridge rectifier, we have 2 type diode bridge rectifier[from 25A to 100A, ] for generator excitation, this kind product also can customized.

4. We also provide Motor Coil Skeleton. Motor plastic Fan, other insulating products.
