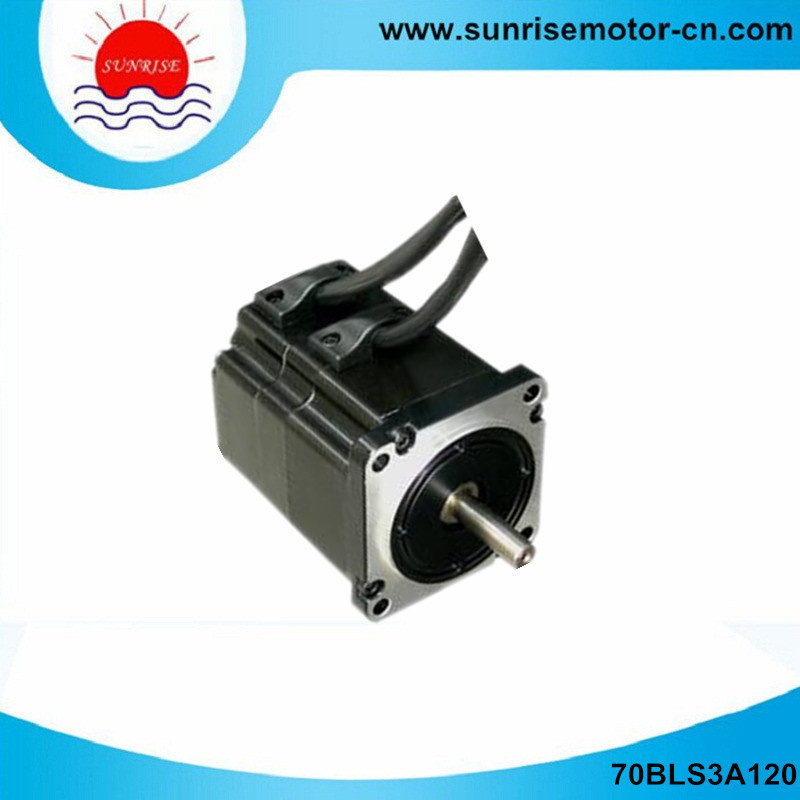

70bls3a120 310VDC 470W 3000rpm Brushless DC Servo Motor with High Voltage

Name: 70bls3a120 310VDC 470W 3000rpm Brushless DC Servo Motor with High Voltage
Brand: all-electronics-online.com
SKU: 726008765
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	US $ 120.97-131.05/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	70BLS3A120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	70bls3a120
Voltage:	310VDC
Current:	2A
Rated Speed:	3000rpm
Rated Torque:	1.5n.,M
Power:	470W
Encoder:	1000CPR
Winding Class:	B
Length:	149
Weight:	2.8kg
Structure And Working Principle:	Brushless
Operating Speed:	High Speed
Application:	Industrial
Excitation Mode:	Excited
Brand:	Sunrise Motor
Type:	BLDC Motor
Certification:	SGS

Product Description

BRUSHLESS DC SERVO MOTOR

MODEL: 70BLS3A120
VOLTAGE: 310V
POWER: 470W
SPEED: 3000RPM
CURRENT: 2A
TORQUE: 1.5N. M
ENCODER: 1000CPR
NUMBER OF
WINDING CLASS: B
MOTOR LENGTH: 149mm
MOTOR WEIGHT: 2.8KG

Motor are available with diffent winding and mechancial modification to meet specific applications.

			70BLS3A60	70BLS3A90	70BLS3A120
Specification		Unit
Rated voltage	U	V	+24	+310	+310
Rated out power	P out	W	157	313	470
Rated speed	n N	rpm	3000
Rated current	I N	A	8.8	1.4	2
Rated torque	T N	N. m	0.5	1.0	1.5
Peak current	I P	A	26.5	4.2	6
Peak torque	T p	N. m	1.5	3.0	4.5
Voltage constant	K E	V/ Krpm	4.1	55	55
Torque constant	K T	N. m/A	0.04	0.525	0.525
Number of poles	N P		8
Encoder		CPR	1000
Winding class			B
Motor Length	L	mm	86	116	149
Motor weight		Kg	1.3	2.1	2.8

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
