| Prod Model: |
YL070m HD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
70m Hdbaset HDMI Extender Wallplate Over Cat5e/Cat |
| Technology: |
Hdbaset |
| Interface: |
HDMI |
| Transmission Distance: |
228ft/70m Using One Cat5e/6 Cable |
| Support: |
3D, 4kx2k, with IR |
| Video Output: |
HDMI +Hdcp |
| Video Bandwidth: |
300MHz/9gbps |
| Support Audio Format: |
Dts-HD Master Audio, Dolby True-HD etc |
| Support Video Format: |
DTV/HDTV:480I/576I/480p/576p/720p/1080I/1080P/4kx2 |
| Power Supply: |
DC 5V |
| Home Audio & Theater Speaker Mount: |
Wall Mount |
| Home Audio & Theater Watts Per Channel: |
<50W |
| Player Type: |
Blue-Ray Player |
| Speaker System Audio Output Mode: |
Dolby Digital |
| Finish: |
Metal |
| Control: |
Wireless |
| Sound Channel: |
7.1 |
| FM: |
Without FM |
| HDMI Quantity: |
1 |
Product Description

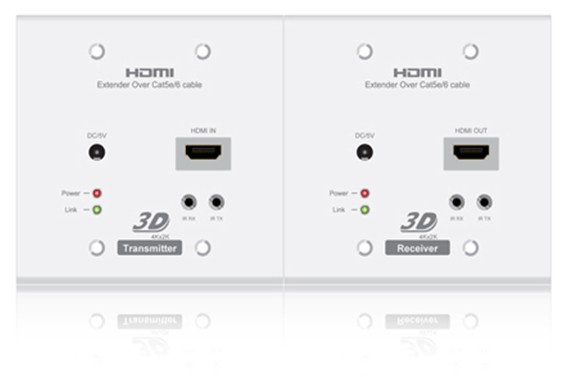

70m HDBaseT HDMI Extender Wallplate Over Cat5e/Cat6 With IR Support 3D, 4Kx2K HDMI Extender Wallplate includes one transmitter and one receiver, incorporates HDBaseT technology, following North American wall plate standard, supports high resolution video, up to 4k*2k 3D, high definition audio, such as Dolby True-HD, DTS Master audio. This HDMI Extender Wallplate, extend HDMI and IR up to 228ft/70m over single cat5e/6 cable.Features: HDMI Extender Wallplate
？ Incorporates HDBaseT technology
？ Following North American wall plate standard(2 Gang indoor outlet)
？ Full HD support: 1080p@60Hz@48 b/pixels, 4Kx2K and support 3D
？ Extends HDMI and IR up to 228 feet (70 meters) using single CAT5e (or better) cable
？ With Infrared control signal passing through function
？ Supports high bit-rate audio formats (Dolby True-HD / DTS Master Audio)
？ Both inner and outer power connectors provided
？ UTP cable termination follows the standard of IEEE-568B
？ CEC Pass_Through
？ DC 5V power supply
？ Compatible with HDCP
？ Supports BI-Directional IR
Specification: HDMI Extender Wallplate
Operating Temperature Range | -5 to +35 Degree Celsius (+23 to +95 Degree Fahrenheit ) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Input Video Signal | 0.5-1.0 Volts P-P |
Input DDC Signal | 5 volts p-p(TTL) |
Support Video Format | DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K 3D video |
Video Output | HDMI +HDCP |
Support Audio Format | DTS-HD Master Audio,Dolby true-HD etc. |
Transmission Distance | 1080P 230FT/70m(Maximum) over single CAT5E/6 Solid |
Power consumption | TX:6watts;RX:10watts(Maximum) |
Dimension (L×W×H) | 115.6x81.5x28.5mm |
Net Weight | 580g(Pair) |
Packing Contents: HDMI Extender Wallplate
？ Main Unit. HDMI Extender Wallplate
？ 1pcs Manual
？ 2pcs TX IR Cable
？ 2pcs RX IR Cable
？ 2 pcs Power Supply,5V2A
