72 Fibers Branch Breakout Fiber Optic Patch Cord Sc/APC-Sc/APC

Name: 72 Fibers Branch Breakout Fiber Optic Patch Cord Sc/APC-Sc/APC
Brand: all-electronics-online.com
SKU: 691335821
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 2-50/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FA-BPC-SASAS72
Color Of Jacket:	Yellow or Customized
Length:	Customized
End Polishing:	PC, Upc
Fan-out Od:	0.9mm, 2.0mm,3.0mm
Fan-out Length:	Customized
Jacket Material:	PVC or Customized
Fiber Type:	G652 or Customized
Application:	Probe
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Sc/APC-Sc/APC

Product Description

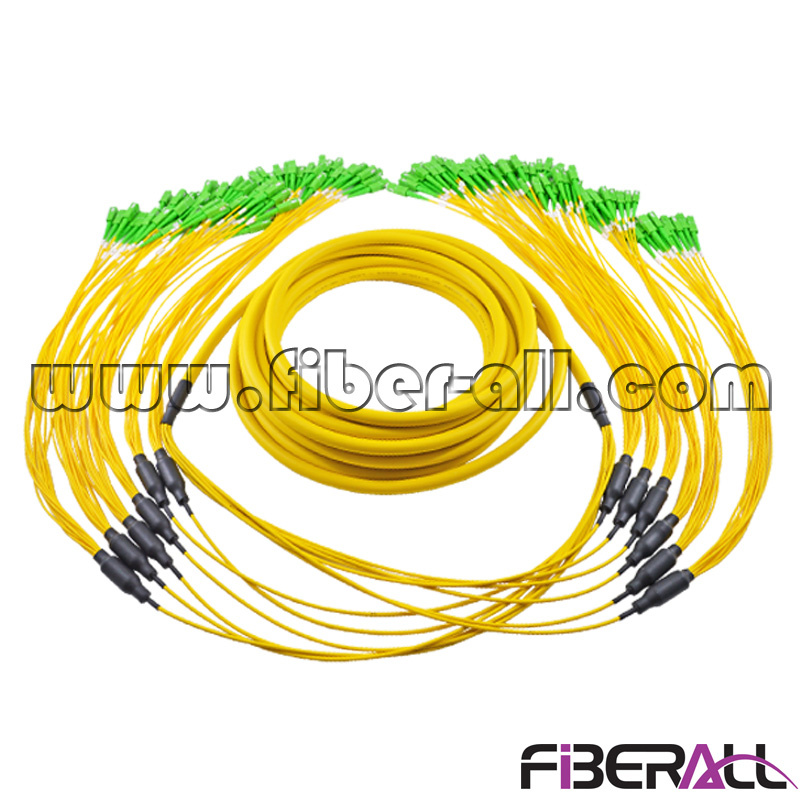

FA-BPC-SASAS72, 72 Fibers Branch Breakout Fiber Optic Patch Cord SC/APC-SC/APC

Main Features
1, Suitable for high density application
2, With strong tensile and crush resistance
3, Connector type, fiber type, jacket material and fan-out length and so on can be customized
4, With cable number ring, easy for identification
5, Low insertion loss, high return loss and stable performance

Technical parameters:
Standard housing, ceramic ferrule
Fiber type: 9/125 μm (OS1), or 62.5/125μm (OM1), or 50/125μm (OM2, OM3, OM4)
Insertion loss: ≤0.3dB (some special connector have its own standard like MTRJ≤ 0.5dB)
Return loss: UPC for SM≥ 50dB, PC for SM≥ 45dB, APC for SM≥ 60dB, PC for MM≥ 20 dB
Repeatability: ≤ 0.2 dB
Changeability:≤ 0.1 dB
Operating temperature range: -20°c ~ 70°c
Storage temperature range: -40°c ~ 80°c
Tensile strength of the connector: 10N
Min. bending radius: 35mm (G.652), 15mm (G657A)

Order Information:

Connector Type	SC, LC, ST, FC, MU, MT-RJ, D4, DIN, LX.5, VF45, MPO/MTP, E2000
Polishing Type	PC, UPC/SPC, APC
Cable Diameter	0.6mm, 0.9mm, 1.8mm, 2.0mm, 2.8mm, 3.0mm, 7.0mm or Customized
Fiber Type	OS1, OS2, OM1, OM2, OM3, OM4 or G651, G652(B or D), G655, G657(A1 or A2)
Jacket Material	PVC, LSZH (LSOH), OFNR, OFNP, PU/TPU, TPEE/Hytrel, PE
Cable Type	Simplex cable, Duplex cable, Bundle breakout round cable, Ribbon flat cable, Waterproof cable, Indoor armored cable, Tactical cable, Base station cable
Fiber Channel	2 fibers,4 Fibers, 8 Fibers, 12 Fibers, 24 Fibers, 48 Fibers, 72 Fibers,144 Fibers
Jacket Color	Yellow, Orange, Aqua, Blue, Green, Brown, Grey, White, Red, Black, Purple, Pink, 12 colors
Cable length	Customized
Customized Label, Packing and Print are also acceptable.
