Jinan E-Shine Electronics Co., Ltd. >> 72 Volts Lithium Ion Battery Charger

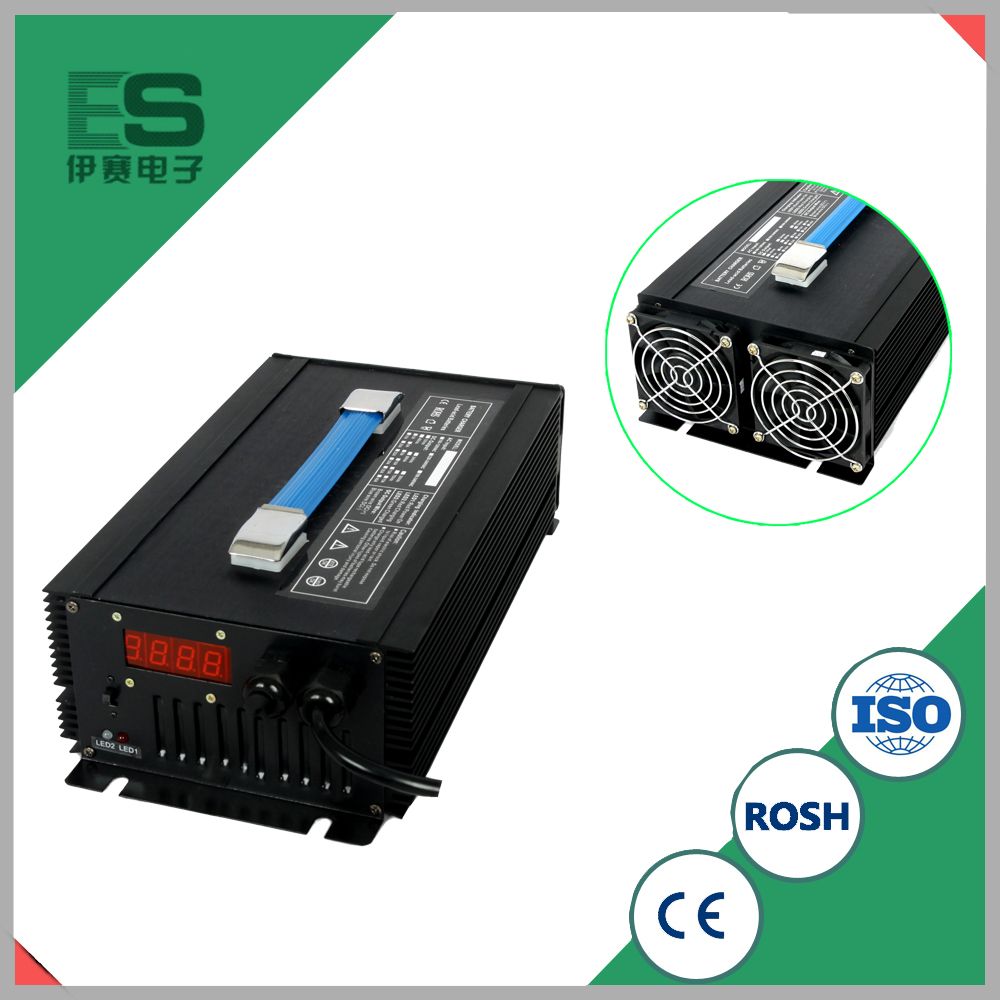

72 Volts Lithium Ion Battery Charger

72 Volts Lithium Ion Battery Charger
Price: US $ 209/Piece
Min Order: 100/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: ES-K
Shell: Aluminum Shell
Input Voltage: 110V or 220V
Input Plug: According to Your Needs
Outout Voltage: According to Your Needs
Output Connector: According to Your Needs
OEM: Available
Type: Lithium Battery
Charger Type: Electric Charger
Nominal Voltage: Depends on Your Battery
Size: 300*175*90mm
Socket Type: According to Your Needs

Product Description

Quick Details
Brand Name: E-Shine
Model Number: 24V60A
Use: Other, Standard Battery
Type: Electric, Electric
Place of Origin: Shandong, China (Mainland)
Weight: 6.5Kg
Size: 330*175*115mm
Max output power: 2300W
Input voltage: 90~264V
Shell: Aluminium
Certification: CE, ROHS
Usage: Electric car

Packaging & Delivery
Packaging Details: 4pieces /carton
Delivery Detail: 3-5days after receive your payment

Specifications:
size330*175*115mm
net weight6.5kg
max output power 2300W
certficationCE

Features:

    1.short-circuit protection,charger o/p current automatically when short-circuit.

    2.overload protection:charger o/p current limited automatically when overload.

    3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.

    4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.

    5. Reliable, elegant,Small size, light,

    6.charging state:two LED display.

    7.all kinds of production has passed the CE certification.

    8.Efficiency: ≥88 %( full capacity)

Operate Condition:

    1.Temperature: -10~45 Degree

    2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)

    3.Life Expectancy: 50,000H at 25 Degree

Apply to:

   1. Electrical forklift

   2. Electrical motorcycle

   3. Electrical tourist-car
JINAN E-SHINE ELECTRONICS Co., Ltd was founded in January, 2009. We are specialized in manufacturing lithium battery chargers which can be largely applied for E-motorcycles, E-sweepers and E-forklifts. We adopt high-rate switching mode technology. Our chargers are high quality, stable, smart, portable and efficient (up to 93%). They have Aluminium case, elegant appearance, light weight and small size.

We own high-level developing engineers and manufacturing staff, and have ability to handle large orders. Our company has a group of engineers who have been in this field for more than 40 years both in production and management, and a group of young and knowledgeable people with doctor degrees who are skilled in high-tech and innovative thinking. Our company also offers tailor-made products according to customers' requirements. OEM is ok with us.

Now our company has supplied high quality, high stable and reliable chargers for North America, Europe and Asia, such as the United States, Canada, Mexico, Germany, Italy, Sweden, Portugal, Japan, South Korea and Taiwan area. All of our products have passed CE, RoHS certification.

"Best Quality is Bright Future ", This proverb warn us every time. And we promise our quality from factory production, excellent material quality, novel style, and accurate assembling; We use strong innovation and development capabilities to build brand so as to become the leading enterprises in the green power industry both in China and World markets!
