Prod Model:	LMZ(J)1-0.5A
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

LMZ(J)₁-0.5A

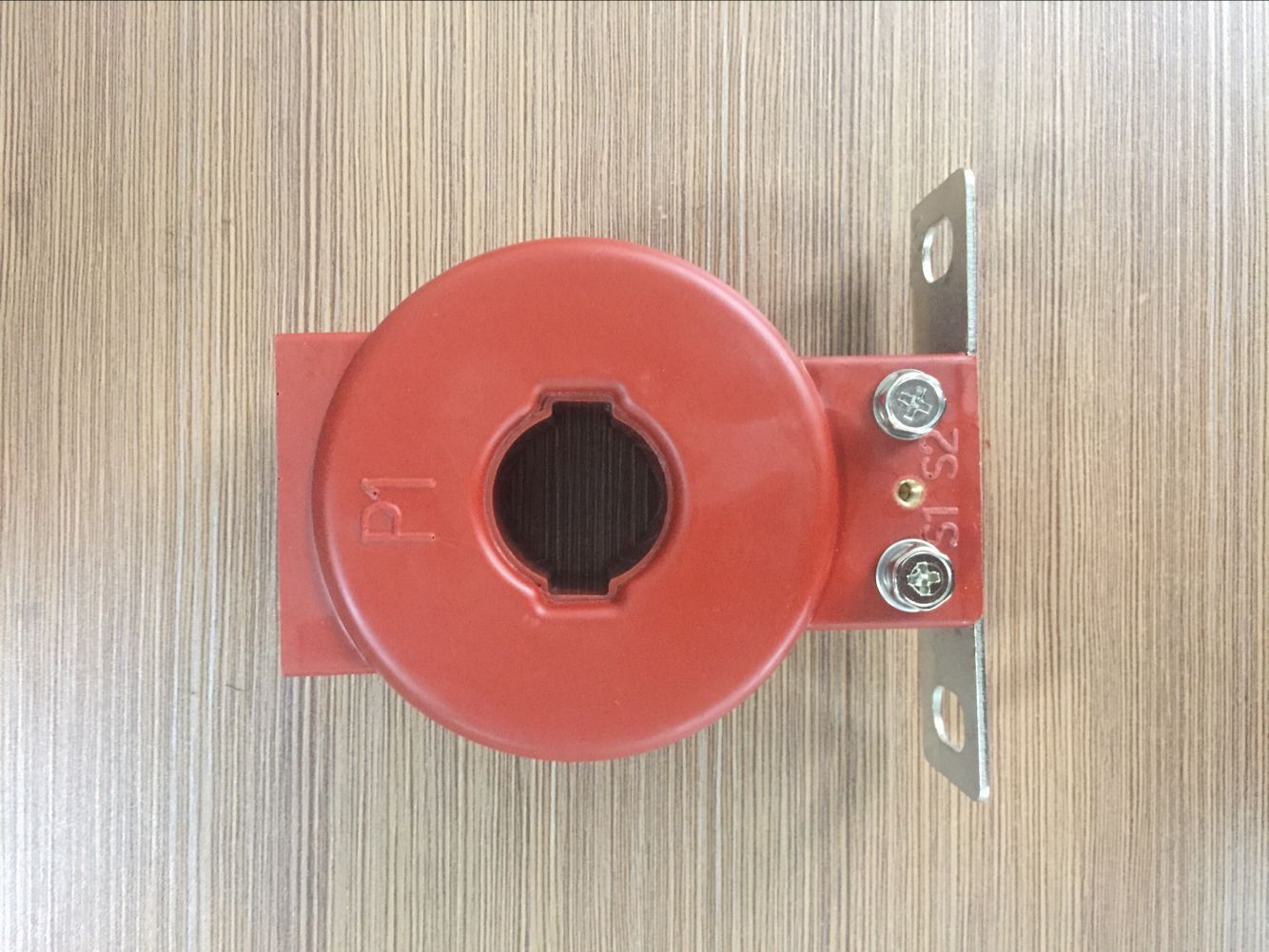

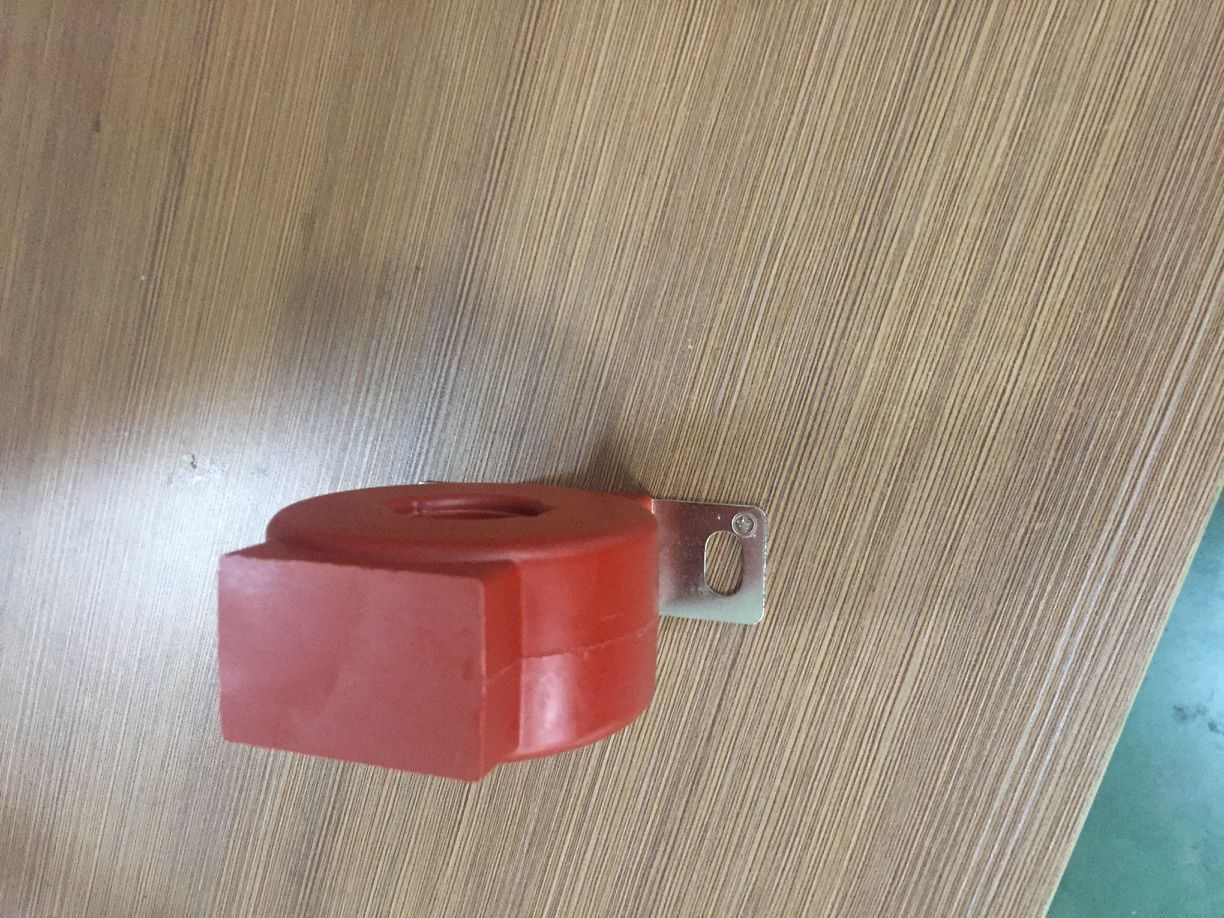

LMZ(J)1-0.5A TYPE CURRENT TRANSFORMER

LMZ(J)₁-0.5A
LMZ(J)₁-0.5A Type Current Transformer

,
LMZ(J)₁-0.5A,0.66kV,50Hz60Hz,.,,.,,,.

I.             Description
This current transformer is indoor busbar-type, it's used for current power measurement in A.C. power line with rated voltage 0.66kV and below, rated frequency 50Hz or 60Hz. It cast the current ratio on the surface of this CT to prevent the electricity theft due to changing the through core turns. Furthermore, the secondary outlet is housed with sealed covert and fixed screw with lead sealed holes, after sealing, it will prevent the electricity theft due to change of secondary connection.

,
II.          Technical Parameter
1,      The performance complies with the following:
GB20840.2
GB20840.2 Current Transformer supplement technical requirement
DL/T 448-2000
DL/T 448-2000 Electric Energy Metering Device Technical Management Specification
JJG 313-1994
JJG 313-1994 Current Transformer Inspection Specification
2,      :5A1A Rated secondary current: 5A or 1A
3,      Service Condition
3.1,1000; Altitude is not more than 1000m;
3.2,-25ºC~+40ºC; Ambient temperature: -25ºC to +40ºC;
3.3,85%;Relative humidity is not more than 85%;
3.4,,.There shall be the site with no explosive risk and dust and chemical corrosive gas.
4,      ,,3kV,1.Primary to secondary and earth, secondary to earth: 3kv, 1 min.
5,      ,:
=/
For the mulit-turns through core CT, the nos. of turns through core should be calculated as per following formula:
Nos. of primary turns through core=Nos. of rated ampere turns/rated primary current
6,      ,
Rated primary current, accuracy class and corresponding secondary output should refer to the following table:

Type	Rated Primary Current (A)	Rated Ampere Turns	Rated Secondary Output (VA)
			0.5S	0.2	0.5	1	5P6
LMZ₁-0.5A	5.10.20.25.50.100	100	5	- 5	5	7.5	-
	15.30.75.150	150
	40.200	200
	250	250
	300	300
	400	400
LMZJ₁-0.5A	5.10.15.20.25.30.50. 75.100.150.300	300			10	15	-
	250	250
	40.200.400	400
	500	500		10
	600	600
	750	750
	800	800
	1000	1000	10	15	20	30	10
	1200	1200
	1500	1500

,Outline and Installation Drawing:

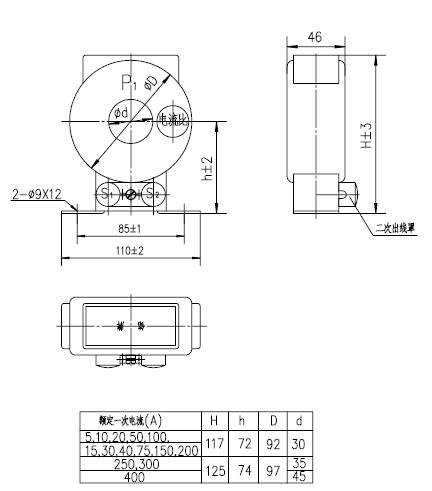

LMZ1-0.5A,5-400A Outline Drawing:

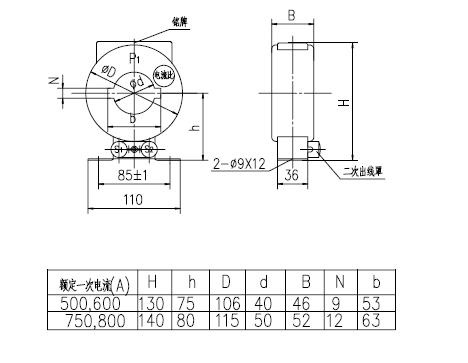

LMZJ1-0.5A 500-800A Outline Drawing:

LMZJ1-0.5A 1000-1500A Outline Drawing:
